N300 Outdoor PoE Access Point

TEW-739APBO (Version v1.0R)

  • Blanket outdoor Wireless N300 coverage (2.4 GHz band)
  • Supports Access Point (AP), Wireless Distribution System (WDS), Repeater, and CPE + AP modes
  • IP67 rated aluminum housing
  • Required antennas sold separately*

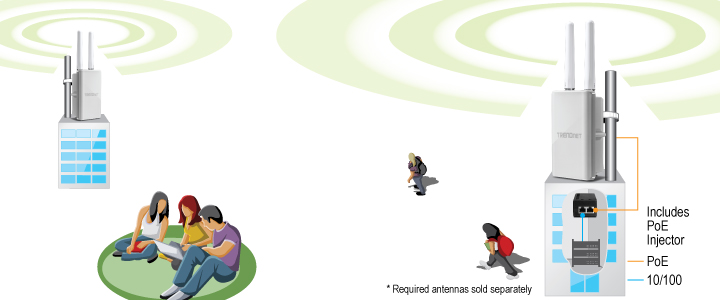

TRENDnet’s N300 Outdoor PoE Access Point, model TEW-739APBO, provides blanket outdoor Wireless N300. A variety of installation scenarios are facilitated with Access Point (AP), Wireless Distribution System (WDS), Repeater, and CPE + AP modes. The rugged aluminum IP67 rated housing comes with wall and pole mounting hardware. Antennas, sold separately, are required in order to function*.


Performance
Antennas
Antennas, sold separately, are required in order to function— model TEW-AO57 or TEW-AO46S
Multi-Mode Support
Supports Access Point (AP), Wireless Distribution System (WDS), Repeater, and CPE + AP modes
N300 Wireless (2.4 GHz)
Compliant with 802.11n/g/b technology (2.4 GHz) with data rates up to 300 Mbps
Outdoor Rated
Durable aluminum enclosure with an IP67 outdoor weather rating
Power over Ethernet (PoE)
Comes with a proprietary PoE injector, so that it can connect a regular non-PoE switch
Logs
Real time logs and statistics help troubleshooting
Encrypted Wireless
Support for wireless encryption of up to WPA2
Multiple SSIDs
Create up to seven additional SSIDs
Compatibility
Compatible with legacy wireless devices
Mounting Hardware
Pole and wall mounting hardware included
  • Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.1d
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.1X
  • IEEE 802.11d
  • IEEE 802.11e
  • IEEE 802.11f
  • IEEE 802.11h
  • IEEE 802.11i
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (2.4 GHz up to 300 Mbps)
  • Hardware Interface
  • 1 x 10/100 Mbps (proprietary PoE) port**
  • 2 x N-Type (female) antenna connector (required antennas sold separately*)
  • Reset button
  • Grounding point
  • LED indicators
  • Special Features
  • IP67 weather rated
  • 802.1Q VLAN assignment per SSID
  • DDNS support for dyn.com, dhs.org, osd, tzo.com
  • Schedule radio on/off time policy
  • Access Control
  • Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
  • Firewall (CPE Mode): NAT, Virtual Server, DMZ Host, PPTP/L2TP/IPsec VPN Passthrough
  • Access Controls: MAC, IP Filter, Layer 2 Client Isolation, Per-SSID client limiting
  • 802.1Q VLAN
  • QoS
  • WMM
  • Diffserv (DSCP)/ToS
  • 802.1p/CoS
  • Operation Modes
  • Access Point (AP)
  • Wireless Distribution System (WDS)
  • Repeater
  • CPE + AP (WISP)
  • SSID
  • Up to 8 SSIDs
  • Internet Connection Types (CPE mode)
  • Dynamic IP (DHCP)
  • Static IP (Fixed)
  • PPPoE (Dynamic IP/Static IP)
  • PPTP (Dynamic IP/Static IP)
  • Management/Monitoring
  • Local/remote web based management (HTTP, HTTPS)
  • Local/remote CLI based management (Telnet, SSH)
  • SNMP v1/v2c/v3
  • SNMP Trap
  • MIB II
  • Upgrade firmware
  • Backup/restore configuration
  • Event logging
  • Reboot
  • Restore to factory defaults
  • Ping test
  • Ping Watchdog
  • Routing (CPE mode)
  • Static
  • Dynamic (RIP v1/2, OSPF)
  • Frequency
  • FCC: 2.412 - 2.462 GHz
  • ETSI: 2.412 – 2.472 GHz
  • Wireless Channels
  • FCC: 1-11
  • ETSI: 1-13
  • Modulation
  • 802.11b: DBPK, DQPSK, CCK with DSSS
  • 802.11g/n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM
  • Media Access Protocol
  • CSMA/CA with ACK
  • Wireless Output Power/Receiving Sensitivity with TEW-AO57
  • 802.11b: FCC/ETSI: FCC: 15 dBm (max.), ETSI: 15 dBm (max.)/-88 dBm (typical) @ 11 Mbps
  • 802.11g: FCC/ETSI: FCC: 13 dBm (max.), ETSI: 15 dBm (max.)/-74 dBm (typical) @ 54 Mbps
  • 802.11n: FCC/ETSI: FCC: 14 dBm (max.), ETSI: 15 dBm (max.)/-69 dBm (typical) @ 300 Mbps
  • Power
  • Input: 100 – 220 V, 50 - 60 Hz, 0.6 A
  • Output: 48 V, 0.5 A
  • Consumption: 22 Watts (max.)
  • Operating Temperature
  • -30 - 60° C (-22 - 140° F)
  • Operating Humidity
  • Max. 99 % non-condensing
  • Certifications
  • CE
  • FCC
  • Dimensions
  • 215 x 122 x 66 mm (8.5 x 4.8 x 2.6 in.) (not including mounting bracket)
  • Weight
  • 0.8 kg (1.8 lbs.)
  • Warranty
  • 3 year limited


Package Contents

  • TEW-739APBO
  • CD-ROM (User’s Guide)
  • Multi-Language Quick Installation Guide
  • Mounting hardware
  • Proprietary PoE injector
  • Water-proof RJ-45 plug (Network cable not included)
  • Power adapter (48 V, 0.5 A)
  • Grounding wire

*Effective wireless coverage may vary depending on the wireless device's output power, antenna gain, antenna align-ment, receiving sensitivity, and radio interference. Additionally environmental factors such as weather conditions, physical obstacles, and other considerations may affect performance. For optimal results, we recommended consulting a professional installer for site survey, safety precautions, and proper installation.
**Recommended max. PoE cable length of 70 m.
