10 dBi Outdoor PoE Access Point

TEW-738APBO (Version v1.0R)

  • Wireless N300 building-to-building networking (2.4 GHz)
  • Supports Access Point (AP), Wireless Distribution System (WDS), Repeater, and CPE + AP modes
  • IP67 rated aluminum housing
  • Built in 10 dBi directional sector antenna

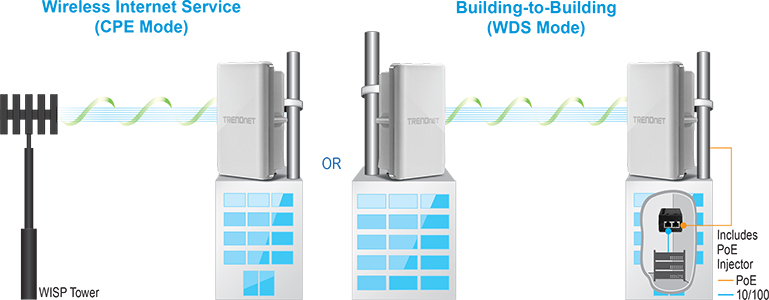

TRENDnet’s 10 dBi Outdoor PoE Access Point, model TEW-738APBO, provides Wireless N300 building-to-building connectivity. A variety of installation scenarios are facilitated with Access Point (AP), Wireless Distribution System (WDS), Repeater, and CPE + AP modes. The rugged aluminum IP67 rated housing comes with wall and pole mounting hardware.


Performance
Multi-Mode Support
Supports Access Point (AP), Wireless Distribution System (WDS), WDS + AP, Repeater, and CPE + AP modes
Wireless N300 (2.4 GHz)
Compliant with 802.11n/g/b technology (2.4 GHz) with data rates up to 300 Mbps*
Outdoor Rated
Durable aluminum enclosure with an IP67 outdoor weather rating
Directional Antenna
Built in 10 dBi directional antenna
Power over Ethernet (PoE)
Comes with a proprietary PoE injector, so that it can connect a regular non-PoE switch
Logs
Real time logs and statistics help troubleshooting
Encrypted Wireless
Support for wireless encryption of up to WPA2
Multiple SSIDs
Create up to seven additional SSIDs
Compatibility
Compatible with legacy wireless devices
Mounting Hardware
Pole and wall mount hardware included
  • Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.1d
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.1X
  • IEEE 802.11d
  • IEEE 802.11e
  • IEEE 802.11f
  • IEEE 802.11h
  • IEEE 802.11i
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (2.4GHz up to 300 Mbps)
  • Hardware Interface
  • 1 x 10/100 Mbps (proprietary PoE) port**
  • Reset button
  • LED indicators
  • Special Features
  • IP67 weather rated
  • 802.1Q VLAN assignment per SSID
  • DDNS support for dyn.com, dhs.org, osd, tzo.com
  • Schedule radio on/off time policy
  • Access Control
  • Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
  • Firewall (CPE Mode): NAT, Virtual Server, DMZ Host, PPTP/L2TP/IPsec VPN Passthrough
  • Access Controls: MAC, IP Filter, Layer 2 Client Isolation, Per-SSID client limiting
  • 802.1Q VLAN
  • QoS
  • WMM
  • Diffserv (DSCP)/ToS
  • 802.1p/CoS
  • Operation Modes
  • Access Point (AP)/WDS+AP
  • Wireless Distribution System (WDS)
  • Repeater
  • CPE + AP (WISP)
  • SSID
  • Up to 8 SSIDs
  • Internet Connection Types (CPE mode)
  • Dynamic IP (DHCP)
  • Static IP (Fixed)
  • PPPoE (Dynamic IP/Static IP)
  • PPTP (Dynamic IP/Static IP)
  • Management/Monitoring
  • Local/remote web based management (HTTP, HTTPS)
  • Local/remote CLI based management (Telnet, SSH)
  • SNMP v1/v2c/v3
  • SNMP Trap
  • MIB II
  • Upgrade firmware
  • Backup/restore configuration
  • Event logging
  • Reboot
  • Restore to factory defaults
  • Ping test
  • Ping Watchdog
  • Routing
  • Static
  • Dynamic (RIP v1/2, OSPF)
  • Frequency
  • FCC: 2.412 - 2.462 GHz
  • ETSI: 2.412 – 2.472 GHz
  • Wireless Channels
  • FCC: 1-11
  • ETSI: 1-13
  • Modulation
  • 802.11b: DBPK, DQPSK, CCK with DSSS
  • 802.11g/n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM
  • Media Access Protocol
  • CSMA/CA with ACK
  • Antenna Gain
  • 10 dBi internal sector antenna
  • Wireless Output Power/Receiving Sensitivity
  • 802.11b: FCC/ETSI: FCC: 28 dBm (max.), ETSI: 10.6 dBm (max.)/-88 dBm (typical) @ 11 Mbps
  • 802.11g: FCC/ETSI: FCC: 27 dBm (max.), ETSI: 10.7 dBm (max.)/- 74 dBm (typical) @ 54 Mbps
  • 802.11n: FCC/ETSI: FCC: 28 dBm (max.), ETSI: 10.7 dBm (max.)/- 69 dBm (typical) @ 300 Mbps
  • EIRP
  • FCC: up to 38 dBm (with built in 10 dBi antenna)
  • ETSI: up to 20 dBm (with built in 10 dBi antenna)
  • Power
  • Input: 100 – 220 V, 50 - 60 Hz, 0.6 A
  • Output: 48 V, 0.5 A
  • Consumption: 22 Watts max.
  • Operating Temperature
  • -30 - 60° C (-22 - 140° F)
  • Operating Humidity
  • Max. 99% non-condensing
  • Certifications
  • CE
  • FCC
  • Dimensions
  • 215 x 122 x 66 mm (8.5 x 4.8 x 2.6 in.) (not including mounting bracket)
  • Weight
  • 0.8 kg (1.8 lbs.)
  • Warranty
  • 3 year limited


Package Contents

  • TEW-738APBO
  • CD-ROM (User’s Guide)
  • Multi-Language Quick Installation Guide
  • Mounting hardware
  • Proprietary PoE injector
  • Water-proof RJ-45 plug (Network cable not included)
  • Power adapter (48V, 0.5A)

* Effective wireless coverage may vary depending on the wireless device’s output power, antenna gain, antenna alignment, receiving sensitivity, and radio interference. Additionally environmental factors such as weather conditions, physical obstacles, and other considerations may affect performance. For optimal results, we recommended consulting a professional installer for site survey, safety precautions, and proper installation.
** Recommended max. PoE cable length of 70 m.
AP Management Software
TEW-APC1 (Version: v1.0)
  • Centralized firmware upgrade allows you to upgrade multiple access points simultaneously
  • Backup and restore access points using configuration templates
  • Restore configuration settings (i.e. SSID, channel, wireless encryption, IP Address)
  • Monitor access point status and connected network devices
  • Multi-SSID support
  • Compatible with TEW-738APBO and TEW-739APBO
