5-Port Gigabit GREENnet Switch

TEG-S5g (Version v3.0R)

  • Plug and Play installation
  • 5 x Gigabit ports
  • 10 Gbps switching fabric
  • Up to 70% energy savings with GREENnet technology*


DISCONTINUED PRODUCT
The TEG-S5g (Version v3.0R) has been discontinued.  It has been replaced by the TEG-S5g (Version v4.0R). For a list of discontinued products, click here.
Watch product spotlight video:

TRENDnet’s 5-Port Gigabit GREENnet Switch, model TEG-S5g, provides performance, proven reliability, and power savings of up to 70%*. Eliminate network congestion with Gigabit speeds and total switching capacity of 10 Gbps. Plug and Play this switch for reliable high speed network connectivity.


Plug and Play
Simply power up the switch and plug in connected devices
Ports
5 x Gigabit ports
Switching Capacity
10 Gbps switching capacity

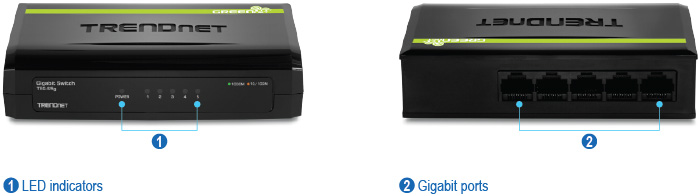

LED Indicators
LED indicators convey port status
Jumbo Frame
Sends larger packets, or Jumbo Frames, for increased performance
Energy Savings
Embedded GREENnet technology reduces power consumption by up to 70%*

* Max power savings compared with standard TRENDnet switches.

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3az
Device Interface
  • 5 x Gigabit Ports
  • LED indicators
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit: 2000 Mbps (full duplex)
Performance
  • Data RAM Buffer: 128 KB
  • Switch Fabric: 10 Gbps
  • MAC Address Table: 2 K entries
  • Forwarding rate: 7.44 Mpps (64-byte packet size)
  • Jumbo frame: 9 Kbytes
Special Features
  • GREENnet energy saving technology
Power
  • Input: 100-240 V AC, 50/60 Hz, 0.2 A
  • Output: 5 V DC, 1 A
  • Consumption: 2.75 Watts (max.)
Operating Temperature
  • 0 40 C (32 - 104 F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 120 x 72 x 28 mm (4.7 x 2.8 x 1.1 in.)
Weight
  • 100 g (3.5 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 3 years
PACKAGE CONTENTS
  • TEG-S5g
  • Quick Installation Guide
  • Power Adapter (5 V DC, 1 A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
