Wireless 1-Port Parallel Print Server

TEW-P1PG (Version B1.xR)

  • Turns a standalone parallel printer into a shared wireless resource
  • Use this wireless print server to place your printer in the most accessible location
  • Manages print server through web browser or utility

The TEW-P1PG (Version B1.xR) has been discontinued.  For a list of discontinued products, click here.

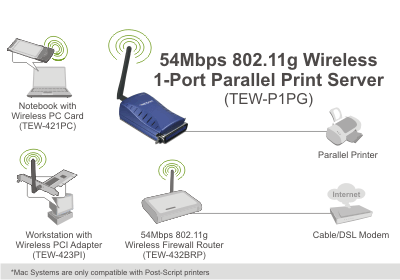

TEW-P1PG is a print server that transforms virtually any stand-alone Parallel networkable printer into a shared network printer. The TEW-P1PG provides IEEE 802.11g 54Mbps wireless interface for integrating into existing wireless network. The TEW-P1PG is designed for printers equipped with parallel compliant printer port and it is an ideal network solution to convert conventional parallel printer into a shared resource on the network.

RoHS Compliant
  • Wi-Fi Compliant with IEEE 802.11b/g devices
  • One RJ-45 10/100Mbps Auto-MDIX Fast Ethernet port
  • IEEE 1284 male centronics (DB-36) Parallel printer port
  • Advance wireless encryption: WEP, WPA-PSK
  • LPP printing for Windows
  • IPP printing for Windows 7/Vista/2003 Server/XP/2000
  • Printing over email and print error email notification
  • Second HTTP port for remote Web configuration
  • Supports Macintosh Rendezvous Zero Configuration *
  • Windows-based setup wizard and configuration utility
  • Web-Based (HTTP) configuration
  • Built-in flash memory for easy firmware upgrade
  • 3-Year limited Warranty

*Mac Systems are only compatible with Post-Script printers

  • Standards
  • Wired: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
  • Wireless: IEEE 802.11g/b
  • Printer Interface
  • IEEE 1284 Male Centronics (DB-36)
  • LAN Port
  • 10/100Mbps Auto-Negotiation UTP/STP RJ-45 Port
  • LED
  • Power, LPT, Link/Act
  • Transport Protocol
  • TCP/IP, SMB, NetBEUI, AppleTalk
  • OS Support
  • Windows 7(32/64-bit)/Vista(32/64-bit)/2003 Server/XP(32/64-bit)/2000/ME/98SE
  • Netware 5.x NDPS LPR Remote Printing (TCP/IP)
  • HP-UX Unix, Sun OS, Solaris, SCO Unix, AIX, Unixware, Linux & Mac OS 10.1 ~ 10.6
  • Management
  • Windows Utility or Web-Browser Configuration
  • Power
  • 5V DC 2.5A External Power Adapter
  • Dimensions/Weight
  • 57 x 90 x 32mm (2.2 x 3.5 x 1.3 inches) Not including antenna. /85 g (3 oz.)
  • Temperature
  • Operating: 0°~50°C (32°~122°F)
  • Storage: -25°~55°C (-13°~131°F)
  • Humidity
  • 10%~90% (non-condensing)
  • Certifications
  • CE, FCC
  • Frequency
  • 2.4 ~ 2.4835 GHz (Industrial Scientific Medical Band)
  • Encryption
  • 64/128-bit WEP (ASCII/HEX), WPA-PSK
  • Antenna
  • 2dBi detachable antenna (Reverse SMA Connector)
  • Data Rate
  • IEEE 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps
  • IEEE 802.11b: 11Mbps, 5.5Mbps, 2Mbps and 1Mbps (Auto Fallback)

Package Contents

  • TEW-P1PG
  • Multi-Language Quick Installation Guide
  • CD-ROM (Utility & Use’s Guide)
  • Power Adapter (5V DC, 2.5A)
