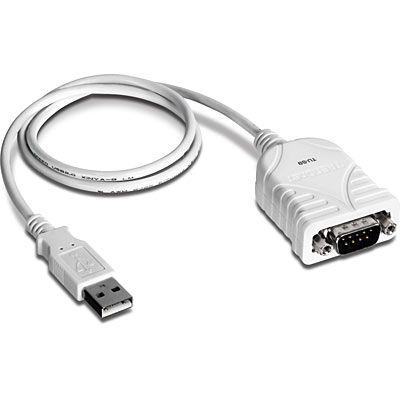

USB to Serial Converter
TU-S9 (Version v2.0R)
  • Connect a RS-232 serial device such as a modem to a USB port on your computer
  • Easy installation with Universal Plug and Play (UPnP)
  • Supports multiple operating systems

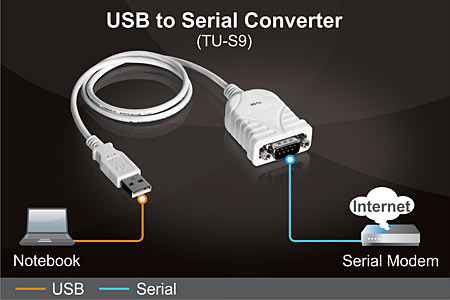

This USB to Serial converter allows you to connect a RS-232 serial device such as a modem to a USB port on your Desktop or Laptop PC.


  • USB 1.1 Specifications
  • RS-232 serial interface
  • Supports data rate up to 6 Mbps
  • Detects USB suspend condition
  • Compliant with Windows 8, Windows 7, Vista, XP, 2000, ME, 98SE and Mac OS 10.1~10.7
  • Install as a standard Windows COM port, full RS-232 modem control signals, RS-232 data signals; TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND
  • Provides dual buffers for upstream and downstream data transfer
  • Supports automatic handshake mode
  • Powered by USB port, no external power adapter required.
  • Easy Plug and Play installation
  • 2-years limited warranty
  • HARDWARE
  • Interface
  • USB 1.1 Type A
  • RS-232 (9-pin) male
  • System Compatibility
  • Windows® 8.1, 8, 7, Vista, XP
  • Mac OS® 10.4-10.9
  • Cable Length
  • 60 cm (24 inches)
  • Cable Gauge
  • 28/24 AWG
  • Data Rate
  • 6 Mbps
  • Power Consumption
  • 500 mA (max)
  • Weight
  • 40 g (1.4 oz)
  • Temperature
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • System: -10° ~ 45° C (14° ~ 113° F)
  • Humidity
  • Max 85% (non-condensing)
  • Certifications
  • CE, FCC

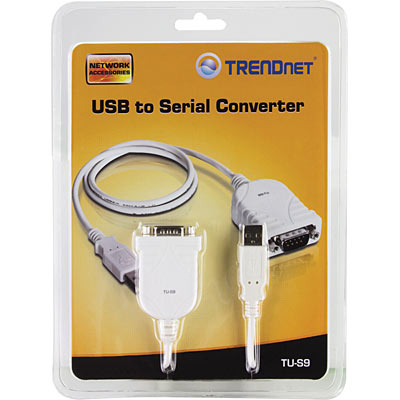

Package Contents

  • TU-S9
  • Quick Installation Guide
  • CD-ROM (Driver and User’s Guide)
