54Mbps 802.11g Wireless AP Router with 4-Port Switch
TEW-411BRP (Version A)

DISCONTINUED PRODUCT

The TEW-411BRP (Version A) has been discontinued. For a list of discontinued products, click here.

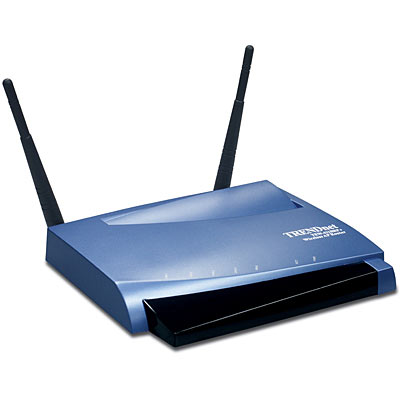

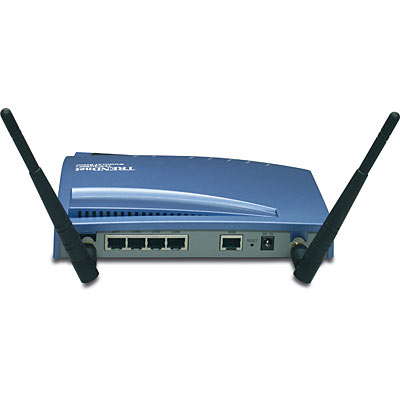

Click on image to enlarge

TRENDnet TEW-411BRP is your 54Mbps Wireless Access Point, Internet Router, and 4-Port 10/100Mbps Fast Ethernet Switch all in one. It is IEEE 802.11g draft compliant and compatible with 802.11b 11Mbps wireless devices. Share Broadband high-speed Internet connection with wired Ethernet stations and wireless clients with just one device. Setting up the unit with the Web Browser Configuration is effortless and the wireless connection provides up to 54Mbps data speed. The TEW-411BRP also functions as a firewall, protecting your network from hackers. Surf and share the Internet with TRENDnet's TEW-411BRP with the ease of knowing that your computers and information are safely protected.

10/100Mbps Auto-negotiation and Auto-MDIX ports for flexible network connectivity
1 Internet (WAN) Port and 4 Local Network Ports
25Mbps LAN to WAN throughput
Supports Cable Modem/xDSL Modem with Dynamic IP, Static IP, PPPoE, and PPTP
DHCP Server feature, allocates up to 253 client IP addresses
2.4 GHz frequency ISM band
Compliant with IEEE 802.11b and 802.11g draft Standards
Detachable 2dBi Dual Dipole Antennas with Reverse SMA Connectors
Wireless connection speed up to 54Mbps with automatic fallback
Easy configuration with Web Browser (HTTP)
Supports Wireless Access Point or Wireless Bridge mode
64/128-bit Wired Equivalent Privacy (WEP) with HEX keys or Passphrase
MAC Address Filter for Accepting or Denying wireless connections (40 entries)
Allow users to disable ESSID broadcast to increase wireless security level
Remote Management via Internet
Supports TCP/IP, IPX, NetBEUI, DHCP, NAT, PPPoE, and PPTP client protocols
Network Address Translation (NAT) provides natural firewall that keeps hackers out
Traffic Control with DMZ (1 entry) and Port Forwarding (10 entries)
Supports Internet applications such as E-mail, FTP, Gaming, ICQ, NetMeeting, PING, Telnet, and more
Supports Dynamic Routing, Static Routing (20 entries) and Dynamic DNS (DDNS)
Internet Access Policy (10 entries); deny/allow web access with IP Address (6 IP entries and 2 IP ranges), MAC address (8 entries), Service Port Number (2 entries with port number or port number range), URL Address (4 entries), URL Keyword (6 entries), and Time/Date
Web Filters for Proxy, Java, ActiveX and Cookies
IPSec, L2TP, and PPTP VPN Protocols Pass-Through
Supports SNMP v2c
Flash memory for firmware upgrade and save/restore settings
3-year limited warranty


Specifications
Hardware
Standards:	IEEE 802.3 (10Base-T), and IEEE 802.3u (100Base-TX), IEEE 802.11b (11Mbps) and IEEE 802.11g draft
Protocols:	DHCP (Client and Server), TCP/IP, IPX, NetBEUI, NAT, PPPoE, PPTP
Module Technique:	802.11b: CCK, DQPSK, DBPSK 802.11g: OFDM
Data Rate (auto fallback):	802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps
Frequency Range:	2.4 ~ 2.497 GHz
Channels:	11 Channels (US & Canada), 13 Channels (EU)
Security:	64/128-bit (WEP) and MAC Address Access Control (ACL)
Antenna Connector:	2 x Male (Reverse Polarity) SMA Connectors
Antenna:	2 x 2dBi External Detachable Dipole Antennas
Output Power:	15 dBm ± 1dBm
Receiving Sensitivity:	11Mbps 10 ^{– 5} BER @ -80 dBm (typical) 54Mbps 10 ^{– 5} BER @ -65 dBm (typical)
Management:	SNMP v2c
WAN/Local Port:	UTP/STP RJ-45, 10/100Mbps, Half/Full Duplex, Auto-MDIX
LED Indicators:	Pwr/Stat, G, WAN, LAN1, LAN2, LAN3, LAN4
Power Adapter:	Input: 100~240VAC, 0.35A, 50~60Hz. Output: 5VDC, 2A
Dimensions (LxWxH):	200 x 181 x 37 mm (7.9x 7.1x 1.46 inches) (without antennas)
Weight:	567 g. (20 oz.)
Temperature:	Operating: -10°~ 50°C (14°F~ 122°F)
Humidity:	Max. 95% (non-condensing)
Certification:	FCC, CE

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.
