N300 Wireless Gigabit Router
TEW-639GR (Version V1.0R)

14x the speed and 6x the range of wireless g
Seamlessly stream video, download files, talk online and play games
Features one-touch Wi-Fi Protected Setup (WPS) and manual wireless on / off switch
Advanced wireless encryption and a firewall provides robust security

DISCONTINUED PRODUCT

The TEW-639GR (Version V1.0R) has been discontinued. It has been replaced by the TEW-639GR (Version v2.0R). For a list of discontinued products, click here.

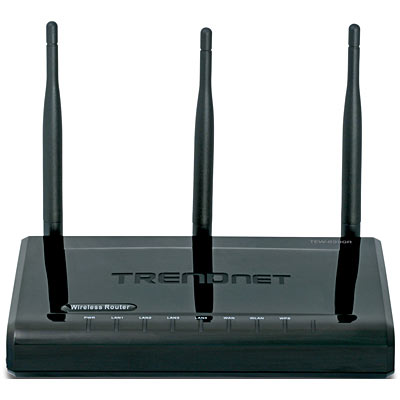

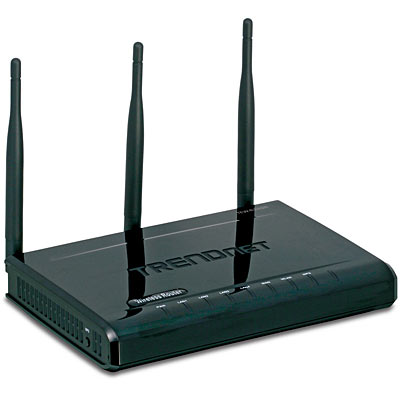

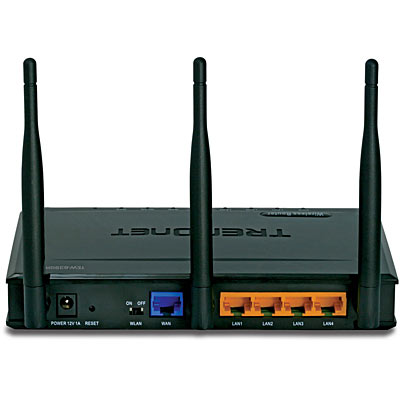

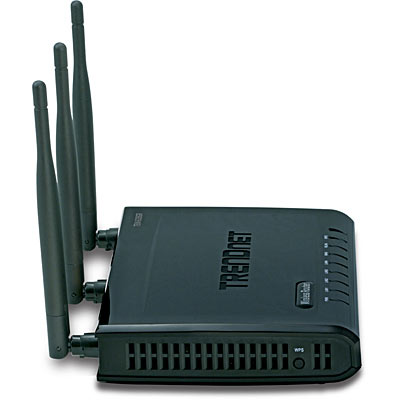

Click on image to enlarge

The N300 Wireless Gigabit Router offers unsurpassed wireless speed, coverage and reliability. Enjoy up to 14x the speed and 6x the coverage of a wireless g connection*.

Gigabit Wide Area Network and Local Area Network ports transfer your data fast. Wi-Fi certification ensures optimal wireless throughput signal strength and compatibility.

Advanced Multiple Input Multiple Output (MIMO) antenna technology eliminates wireless dead spots. Wireless encryption and a manual on/off wireless switch keep your data safe. Wireless Protected Setup (WPS) integrates other WPS supported wireless adapters at the touch of a button. Seamlessly stream HD media, download files, surf and play games at wireless n Gigabit speed.

4 x 10/100/1000Mbps Auto-MDIX LAN ports
1 x 10/100/1000Mbps WAN port (Internet)
Gigabit LAN ports for high speed network connectivity
Compatible with most popular cable/DSL Internet service providers using Dynamic/Static IP, PPPoE, PPTP and L2TP
High-speed wireless data rates up to 300Mbps using an IEEE 802.11n connection
3 external antennas provide high-speed performance and expansive wireless coverage
Advanced Firewall protection with Network Address Translation (NAT) and Stateful Packet Inspection (SPI)
Access restriction with Internet Access Control; time scheduling and MAC filtering
Built-in pre-configured virtual servers and Application Level Gateway services for special Internet applications
Universal Plug and Play (UPnP) for auto discovery and support for device configuration of Internet applications
Enable/disable wireless functionality with the WLAN on/off toggle switch
Multiple pass-through sessions for popular VPN applications (IPSec, L2TP and PPTP)
Easy setup via Web browser using the latest versions of Internet Explorer, FireFox, Safari and Chrome
One-touch wireless security setup using the Wi-Fi Protected Setup (WPS) button when connecting to a WPS supporting device
Complete wireless security with WPA/WPA2, WPA-PSK/WPA2-PSK, and WEP
Windows 95/98/NT/2000/XP/2003 Server/Vista, Linux and Mac OS supported
3- year limited warranty

Hardware
Standards	Wired: IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX) and IEEE 802.3ab (1000BaseT) Wireless: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
WAN	1 x 10/100/1000Mbps Auto-MDIX port (Internet)
LAN	4 x 10/100/1000Mbps Auto-MDIX port
Wireless On/Off Switch	Turn on/off wireless LAN
WPS Button	Wi-Fi Protected Setup (WPS) with other WPS compliant devices
Connection Type	Dynamic IP, Static (fixed) IP, PPPoE, PPTP, L2TP
NAT Firewall	3K configurable NAT entries; restricted NAPT IP ranges, port ranges and schedule Port triggering for 24 special applications ALG support (enable/disable support) –RTP/RTSP, AOL, FTP, ICMP, WMP/MMS, NetMeeting, SIP
WDS	Enable/disable Wireless Distribution System support
UPnP	UPnP IGD 1.0 compliant
DMZ	DMZ host, 24 configurable Virtual Servers and Game Servers
DNS	Static or WAN assigned DNS servers; 4 verified services for DDNS
Internet Access Control	Time based Internet access; port range/service filtering; Internet domain restriction; 32 user defined schedules, 24 MAC address filter entries
LED Indicator	Power, LAN1~LAN4, WAN, and WLAN
Power Adapter	12V DC, 1A external power adapter
Power Consumption	779mA
Dimension (L x W x H)	180 x 122 x 30 mm (6.8 x 4.6 x 1.1 inches)
Weight	350g (0.8 lb)
Temperature	Operation: 0°~ 40°C (32°F~ 104°F); Storage: -20°~ 60°C (-4°F~140 °F)
Humidity	Max. 90% (non-condensing)
Certifications	CE, FCC
Wireless
Frequency	2.412 ~ 2.472 GHz
Antenna	3 x 4dBi fixed dipole antenna
Module Technique	802.11n: BPSK, QPSK, 16QAM,64QAM with OFDM 802.11b: CCK (11 and 5.5Mbps) DQPSK (2Mbps) DBSPK (1Mbps) 802.11g: OFDM with BPSK, QPSK and 16/64-QAM sub-carrier modulations
Data Rate	802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps 802.11n: up to 300Mbps
Security	Encryption: hardware AES/TKIP, 64/128-bit WEP (HEX/ passphrase – 11b/g) 802.1X/EAP: EAP-TLE, EAP-TTLE/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC WPA: WPA/WPA2, WPA-PSK/WPA2-PSK (AES-11b/g/n, TKIP-11b/g) WPS: support PIN and PBC SSID broadcast control
Output Power	802.11b: 18dBm (typical) 802.11g: 15dBm (typical) 802.11n: 12dBm (typical) with HT20 or HT40
Receiving Sensitivity	802.11b: -84dBm (typical) @ 11Mbps 802.11g: -72dBm (typical) @ 54Mbps 802.11n: -68dBm (typical) with HT20 -65dBm (typical) with HT40
Channels	1~ 11 (FCC), 1~13 (ETSI)

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

View Emulator

Package Contents

TEW-639GR
Multi-Language Quick Installation Guide
CD-ROM (User’s Guide)
Cat. 5 Ethernet cable (1.5m / 4.9ft)
Power adapter (12V DC, 1A)
