Product Families » Wireless Networking » Wireless G » Wireless G Routers » TEW-432BRP
54Mbps Wireless G Broadband Router
TEW-432BRP (Version D1.0R/D1.1R)
  • Proven wireless g performance and reliability
  • Stream videos, download files and play games
  • Create a network in minutes with Easy-Go installation
  • Advanced firewall and wireless encryption ensures data security


 DISCONTINUED PRODUCT
The TEW-432BRP (Version D1.0R/D1.1R) has been discontinued.  It has been replaced by the TEW-432BRP (Version D1.2R/D1.3R). For a list of discontinued products, click here.

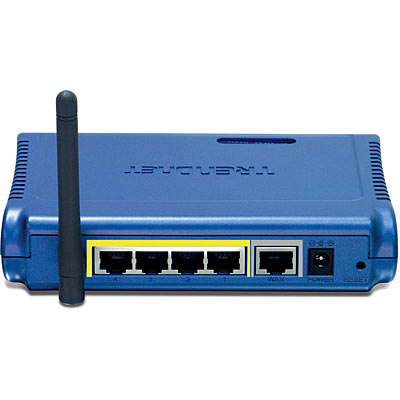

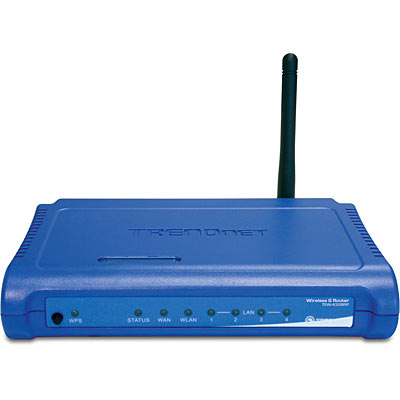

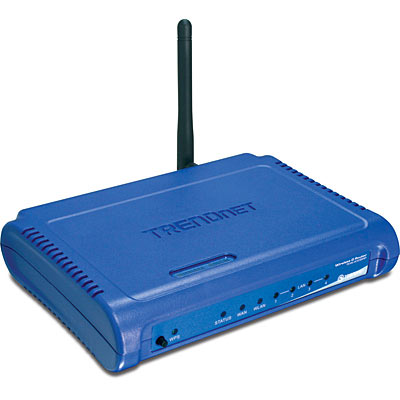

TEW-432BRP
Click on image to enlarge

The 54Mbps Wireless G Router offers a complete wireless solution that allows you to share files, an Internet connection, or network resource while protecting your network using enhanced security features. Simply plug your workstations and your broadband modem into the Wireless G router, and configure your broadband connection using its built-in Web Interface.

Use the VirtualServer feature to configure any workstation as a Web Server or FTP server easily, allowing users to view files from the Internet. You can also protect your Wireless LAN using64/128-bit WEP encryption or industry standard WPA-PSK with TKIP or AES algorithms. Increase security by enabling MAC, IP, or Protocol Filtering as well as setting Firewall Rules to limit Internet Access or block malicious intruders from accessing your network.

*Note: Coverage and Speed performance might vary depending on the network environment.


RoHS Compliant

  • Wi-Fi compliant with IEEE 802.11g and 802.11b devices
  • Supports Cable/DSL modems with Dynamic IP, Static IP, PPPoE, PPTP or L2TP connection types
  • DHCP server feature allocates up to253 client IP addresses
  • Supports 64/128-bit Wired Equivalent Privacy (WEP)
  • Supports 802.1x WPA/WPA2, WPA-PSK/WPA2-PSKfor Advance Security
  • Supports MAC Address, Protocol, IP Filters and UPnP (Universal Plug & Play)
  • Supports Domain and URL blockings
  • Traffic control with Virtual Server, Virtual PC Mapping and DMZ
  • Provides additional security with NAT/SPI firewall and attack alert via Emails
  • Provides additional security of Enable/Disable SSID, password protection
  • Supports Static and Dynamic Routing
  • Supports WPS (Wireless Protected Setup) for easy secure connection
  • Supports IPSec and PPTP VPN Pass-Through sessions
  • Flash Memory for Firmware upgrade, save/restore settings, and Traffic Log
  • One step CD installation with Multi-Language support
  • Works with Windows 95/98/NT/2000/XP/2003/Vista,Linux and Mac OS
  • Easy management via Web browser (HTTP) and Remote Management
  • Range for indoor of 30 ~ 50 meters (depending on the environment)
  • Range for outdoor of 50 ~ 200meters (depends on the environment)
  • 3-year limited warranty

Hardware
Standards
  • Wired: IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), ANSI/IEEE 802.3 Auto Negotiation
  • Wireless: IEEE 802.11b (11Mbps), IEEE 802.11g (54Mbps)
WAN1 x 10/100Mbps Auto-MDIX Port (Internet)
LAN4 x 10/100Mbps Auto-MDIX Port
Connection TypeDynamic IP, Static (Fixed) IP, PPPoE, PPTP, L2TP
Supported Network ProtocolsTCP/IP, NAT, PPPoE/PPTP/L2TP, HTTP, DHCP server/client
LED Indicators System, WAN, WLAN, LAN, WPS
Dimension (L x W x H)155 x 110 x 30 mm (6 x 4.3 x 1.2 inches)
Weight226g (8 oz.)
Temperature
  • Operation: 0°~ 40°C (32°F~ 104°F)
  • Storage:-10°~ 70°C (14°F~ 158°F)
HumidityMax. 95% (Non-Condensing)
Power Adapter7.5V DC, 1A External Power Adapter
CertificationFCC &CE
Wireless
Frequency2.412 ~ 2.484GHz (Industrial Scientific Medical Band)
Module Technique
  • 802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps),DBPSK (1Mbps)
  • 802.11g: OFDM
Antenna1 x 2dBi External Detachable Dipole Antenna (Female Reverse SMA Connector)
Media Access ProtocolCSMA/CA with ACK
Security64/128-bit WEP (HEX/ASCII),802.1x WPA/WPA2, WPA-PSK/WPA2-PSK, MAC Address Filter, Protocol Filter, Domain Filter
Transmit Power802.11b: 15 ± 2dBm; 802.11g: 14 ± 2dBm
Data Rate
  • 802.11b:11Mbps, 5.5Mbps, 2Mbps, and 1Mbps
  • 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps,12Mbps, 9Mbps and 6Mbps
Receiving Sensitivity
  • 11Mbps8% PER @ -82 dBm (typical)
  • 54Mbps 10% PER @ -65 dBm (typical)
Channels11 Channels (US), 13 Channels (EU)


TEW-432BRP

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.
Additional Info
Email a Friend
Datasheet
Quick Installation Guide
Downloads
View Knowledgebase
View Emulator
Register Your Product
Package Contents
  • TEW-432BRP
  • Multi-Language QIG
  • CD-ROM (User´s Guide)
  • Power Adapter (7.5V, 1A)
  • RJ-45 Cat. 5 Cable (1.5M)
