125Mbps 802.11g Wireless Access Point
TEW-410APBplus (Version A)

DISCONTINUED PRODUCT

The TEW-410APBplus (Version A) has been discontinued. For a list of discontinued products, click here.

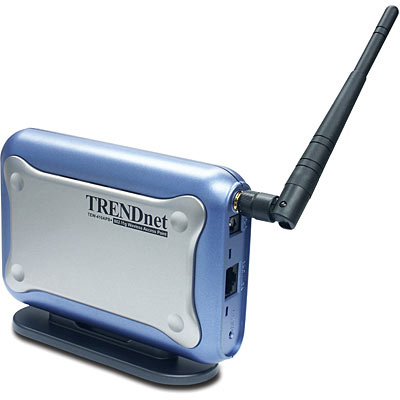

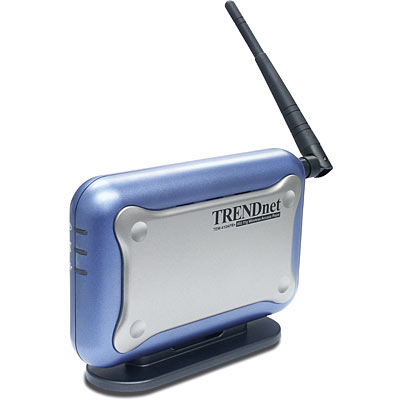

Click on image to enlarge

TRENDnet's TEW-410APBplus 125Mbps Wireless Access Point is today's link between wired and wireless networks. Compliant with the most advanced IEEE 802.11g and 802.11b wireless networking standards; it provides Direct Sequence Spread Spectrum (DSSS) operation for transparent bridging and roaming capabilities for wireless nodes. The TEW-410APBplus also provides AP-to-AP bridging functions, allowing users to connect two or more Access Points together, wirelessly. With TRENDnet's Wireless Access Point and Wireless Network Adapters, users can connect to Ethernet/Fast Ethernet LAN at home or office to access network resources such as hard drives, CD-ROM/DVD drives, network printers, and Internet connection.

Uses 2.4 GHz ISM Frequency Band, Wi-Fi Compliant with IEEE 802.11g and IEEE 802.11b Devices
Provides Wireless Data Rate of up to 125 Mbps with Automatic Fallback (Afterburner Technology)
125Mbps Afterburner Technology (in Access Point Mode only)
Supports Access Point and Access Point Client Modes
Wireless Distribution System (WDS) supports Wireless Bridging and Repeater Modes
64/128-bit Wired Equivalent Privacy (WEP) with HEX, or Passphrase Key
WPA (Pre-Shared Key or RADIUS) supports TKIP or AES Algorithm
MAC Address Filter for Preventing or Permitting Wireless Connections (40 entries)
Allows Users to Enable/Disable ESSID Broadcast for Improved Protection
Detachable 3dBi Dipole Antenna, can be replaced with optional High-Gain antenna to extend the range
Easy Web Browser (HTTP) Configuration and Maintenance
Flash Memory for Firmware Upgrade and Save/Restore Settings
Range for 802.11b: up to 35~60 meters indoor, 300 meters outdoor (depends on the environment)
Range for 802.11g: up to 20 meters indoor, 50 meters outdoor (depends on the environment)
3-year limited warranty


Specifications
Hardware
Standards:	Wired: IEEE 802.3 (10Base-T), and IEEE 802.3u (100Base-TX) Wireless: IEEE 802.11b (11Mbps), IEEE 802.11g (54Mbps) and High Speed-G (125Mbps)
Protocols:	TCP/IP, IPX/SPX, NetBEUI
LAN:	1 x 10/100Mbps Auto-MDIX Port
LED Indicator:	Power, Active, WAN, LAN1, LAN2, LAN3, LAN4
Antenna:	1 x 3dBi External Detachable Dipole Antenna
Reset Button:	Reset settings to factory default
Dimension (L x W x H):	142 x 101 x 36.9 mm (5.6 x 4 x 1.45 inches)
Weight:	0.33kg (11.6 oz.)
Temperature:	0°~ 40°C (32°F~104°F)
Humidity:	Max. 90% (non-condensing)
Power Adapter:	Input: US power type: 120V AC 60Hz EU power type: 230V AC 50Hz AU power type: 240V AC 50Hz UK power type: 230V AC 50Hz Output: 12V DC, 0.5A (Standard Package Accessory) or 5V DC, 2A External Power Adapter
Certification:	FCC & CE
Wireless
Frequency:	2.4 to 2.4385GHz (Industrial Scientific Medical Band)
Module Technique:	802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps) 802.11g: OFDM
Media Access Protocol:	CSMA/CA with ACK
Security:	64/128bit WEP, WPA, Enable/Disable SSID, Password Protection
Transmit Power:	15 dBm ± 1dBm
Operation Modes:	AP, Bridge, Repeater and AP-Client
Data Rate:	802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps High Speed-G: 125Mbps (Afterburner technology, Enhanced Throughput by up to 40%)
Receiving Sensitivity:	11Mbps 10 ^{– 5} BER @ -80 dBm (typical) 54Mbps 10 ^{– 5} BER @ -65 dBm (typical)
Operating Range:	802.11b: 11Mbps up to 35~60 meters (indoor), 300 meters (outdoor) 802.11g: 54Mbps up to 20 meters (indoor), 50 meters (outdoor)
Channels:	11 Channels (US), 13 Channels (EU)

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.
