108Mbps 802.11a+g Wireless AP Router
TEW-511BRP

Enjoy high throughput speeds and less interference with dual band technology
2x the speed of wireless g*
Stream videos, download files and play games with no wireless lag
Double Firewall and advanced wireless encryption ensures data security

DISCONTINUED PRODUCT

The TEW-511BRP has been discontinued. For a list of discontinued products, click here.

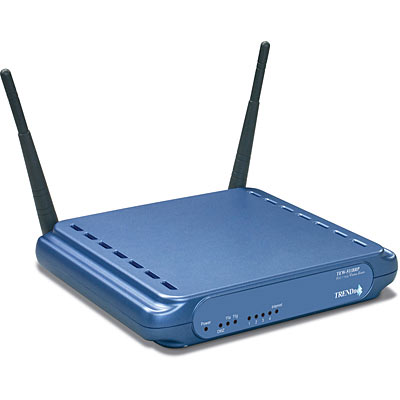

Click on image to enlarge

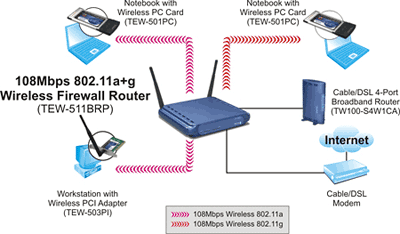

The TRENDnet TEW-511BRP Dual-Band 802.11 a+g Wireless Router combines features from a wired router and wireless access point to create an all-in-one network solution for home or small office. Wireless clients equipped with the TEW-501PC 802.11a/g adapter can take advantage of Super A+G technology by using frame bursts, fast frames, frame compression, and dynamic turbo to reach speeds up to 108 Mbps. A built-in 4 port switch connects wired workstations to your network while the access point connects standard 802.11a/b/g wireless clients. TEW-511BRP's is an ideal appliance for sharing Internet access and network resources. The TEW-511BRP firewall protects your network from hackers while WEP and WPA encryptions safe guard wireless transmission.

*Note: Coverage and Speed performance might vary depending on the network environment.

Wi-Fi Compliant with IEEE 802.11a, 802.11g and IEEE 802.11b Standards
Uses 5 GHz or 2.4 GHz Dual Band Design, which Complies with Worldwide Requirements

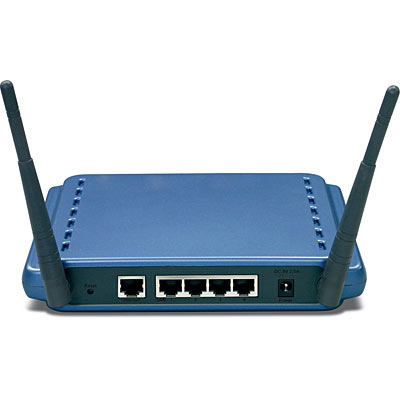

4 x 10/100Mbps Auto-MDIX LAN Ports and 1 x 10/100Mbps WAN Port (Internet)
Supports Cable/DSL Modems with Dynamic IP, Static IP, PPPoE, or PPTP Connection Types
Supports Super G and Super AG and XR (eXtended Range) technology Data Rate up to 108Mbps (AP Mode Only)
DHCP Server Feature Allocates up to 253 Client IP Addresses
64/128-bit WEP, WPA (Pre-Shared Key or RADIUS) supports TKIP or AES Algorithm
Supports MAC Address, IP, and Protocol Filters
Firewall features Network Address Translation (NAT), and Stateful Packet Inspection (SPI) protects against Dos attacks
Traffic Control with Virtual Server and DMZ
Provides Additional Security of Enable/Disable SSID, Password Protection
Supports Static/Dynamic Routing and Dynamic DNS
Supports Multiple and Concurrent IPSec and PPTP VPN Pass-Through Sessions
Flash Memory for Firmware Upgrade, Save/Restore Settings, and Traffic Log
Easy Management via Web Browser (HTTP) and Remote Management
Compliant with Windows 95/98/NT/2000/XP, Linux and Mac OS
Range for Indoor of 30 ~ 100 meters (depends on the environment)
Range for Outdoor of 50 ~ 300 meters (depends on the environment)
3-year limited warranty


Hardware
Standards:	Wired: IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX) Wireless: IEEE 802.11b (11Mbps), IEEE 802.11g (54Mbps), 802.11a (54Mbps)
WAN:	1 x 10/100Mbps Auto-MDIX Port (Internet)
LAN:	4 x 10/100Mbps Auto-MDIX Ports
Connection Type:	Dynamic IP, Static (Fixed) IP, PPPoE, PPTP
Advance Features:	DHCP Client/Server, NAT, PPPoE Client, DNS Proxy/Relay, Dynamic DNS, DMZ Hosting, UPnP, VPN pass-through, NTP, TFTP Server, Configuration Backup and Restore
Protocol Support:	TCP/IP, NetBEUI, IPX/SPX

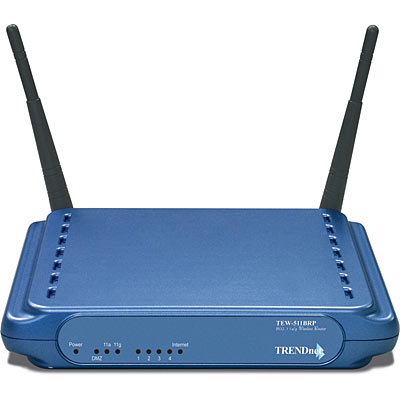

LED Indicator:	Power, DMZ, 11a, 11g, LAN, Internet
Dimension (L x W x H):	198 x 160 x 33 mm (7.8 x 6.3 x 1.2inches)
Weight:	0.7kg (1.54 lbs)
Temperature:	Operation: 0°~ 40°C (32°F~ 104°F) Storage: -20°~ 70°C (-4°F~ 158°F)
Humidity:	Max. 90% (Non-Condensing)
Power Adapter:	5V DC, 2.5A External Power Adapter
Certification:	FCC & CE
Wireless
Module Technique	802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps) 802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM Sub-Carrier Modulations
Frequency:	802.a: UNI-Band 5.15 ~ 5.85 GHz (subject to local regulations) 802.11b/g: ISM 2.412 ~ 2.4835Ghz
Antenna:	802.11a: 4dBi (Peak Gain); 802.11b/g: 2dBi (Peak Gain) 2 x Dual Band Diversity Detachable Antenna (Female Reverse SMA Connector)
Media Access Protocol:	CSMA/CA with ACK
Security:	64/128/152-bit WEP & WPA 802.1X (EAP-MD5/TLS/TTLS) SSID Broadcast Control, MAC Filter, IP Filter, Content Filter Dos Prevention, Time-of-Day ACL
Transmit Power:	802.11a: 16dBm (max) @ 16QAM R3/4 802.11b: 18dBm (typical) 802.11g: 16dBm (typical)
Data Rate:	802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps Super AG: 108Mbps
Receiving Sensitivity (802.11a/g):	108Mbps 10 ^{– 5} BER @ -69 dBm (Turbo Mode) 54Mbps 10 ^{– 5} BER @ -72 dBm ; 48Mbps 10 ^{– 5} BER @ -75 dBm 36Mbps 10 ^{– 5} BER @ -82 dBm ; 24Mbps 10 ^{– 5} BER @ -85 dBm 18Mbps 10 ^{– 5} BER @ -88 dBm ; 12Mbps 10 ^{– 5} BER @ -89 dBm 9Mbps 10 ^{– 5} BER @ -90 dBm ; 6Mbps 10 ^{– 5} BER @ -91 dBm
Channels:	11a: Subject to Local Regulations 11b/g: 1~ 11 (US), 1~13 (EU)

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

View Emulator

Package Contents

TEW-511BRP
Multi-Language QIG
CD-ROM (User’s Guide)
Power Adapter (5V, 2A)
RJ-45 Cable
