Product Families » Bluetooth® » TBW-101UB

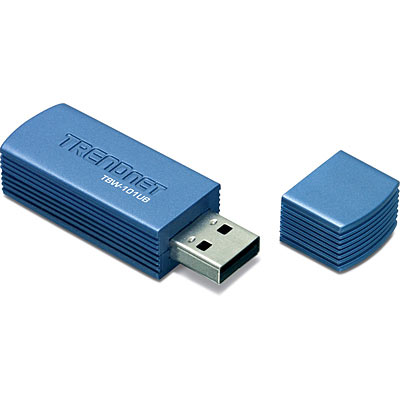

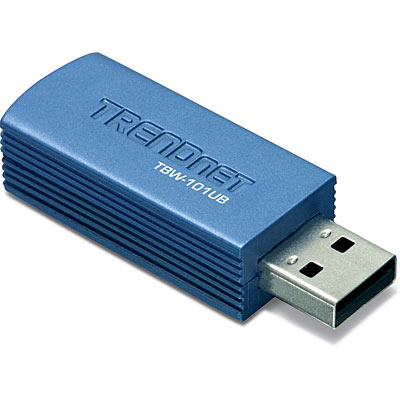

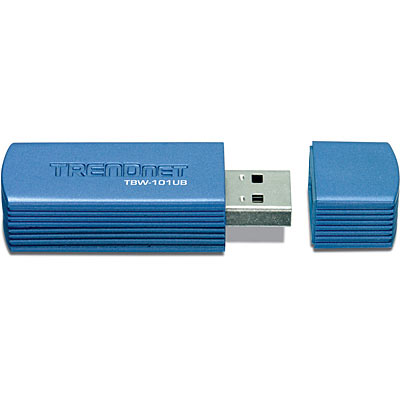

Bluetooth USB Adapter
TBW-101UB (Version 2.1)

Network all of your Bluetooth™ devices in minutes
Enjoy crystal clear interference-free sound quality from this compact device
Connect wirelessly up to 10 meters (32.8 ft.) away

DISCONTINUED PRODUCT
The TBW-101UB (Version 2.1) has been discontinued. It has been replaced by the TBW-105UB (Version 1.0R). For a list of discontinued products, click here.

Click on image to enlarge

Venture into the wireless realm with TRENDnet Bluetooth technology. Enhance your PCs with Bluetooth peripherals. Unclutter your workspace with TRENDnet´s TBW-101UB Bluetooth wireless technology.

Class II Bluetooth Operations
Compliant with USB 1.1, Bluetooth 1.1 and 1.2 Standards
Uses 2.4GHz ISM frequency band with Gaussian Frequency Shift keying (GFSK) standard
Supports both Asynchronous Connectionless Link (ACL ) and Synchronous Connection Oriented (SCO)
High-Speed wireless data transmission, up to 723Kbps Data Throughput in ACL mode, and up to 64 Kbps in SCO mode
Compatible with Windows 98SE/ME/2000/XP/2003 Server, Mac OS X 10.2.x or above
Built-in 128-bit encryption for secured data communications
Supports up to 7 Slave Devices
Enable computers to connect Bluetooth enabled devices such as printers, Headset, Audio/Video, Basic Image, PDAs, and mobile phones
Supports Generic Access (GAP), Service Discovery Application (SDAP) serial Port (SPP), Dial-upNetwork (DUN), Fax, File Transfer (FTP), LAN Access (LAP), Synchronization (SYNC), Object Push (OPP), Generic Object Exchange (GEOP), Headset (HSP), and Hardcopy Cable Replacement (HCRP), Human Interface Device (HID) device.
Communicates wirelessly up to 25 meters (82 ft.) in limited condition
Trouble free Plug & Play Installation
2-year limited warranty


Hardware
Adapter Standards	USB 1.1, Bluetooth 1.1 and 1.2
Antenna	2dBi
Link Mode	ACL and SCO
TX Output	Class II Operation
Supported OS	Windows 98SE/ME/2000/XP/2003 Server, Mac OS X 10.2.8 or above
Cable Length	15cm(6in.)
LED Indicator	Power
Operating Voltage	5V USB Power
Power Consumption	80mA (Max.)
Temperature	Operation: 0°;~ 55°C (32°F~132°F) Storage: -20°~ 55°C (-4°F~132°F)
Humidity	70% (Max)
Dimensions	57 x 18 x 11 mm (2.24 x 0.71 x 0.43in.)
Weights	11 g (0.4 oz.)
Certification	CE, FCC
Wireless
Frequency	2.4~2.4835 GHz
Module Technique	Gaussian Frequency Shift Keying ( GFSK)
Output Power	0dBm (typical)
Receiving Sensitivity	- 82dBm ( typical )
Data Rate	Up to 723Kbps in ACL mode; up to 64Kbps in SCO mode
Date Range	Up to 25m (82 ft.) depends on the environment

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

View Knowledgebase

Package Contents

TBW-101UB
Multi-Language Quick Installation Guide
Driver CD-ROM
USB Cable
