11Mbps Wireless CompactFlash Network Adapter
TEW-222CF (Version 1)

DISCONTINUED PRODUCT

The TEW-222CF (Version 1) has been discontinued. For a list of discontinued products, click here.

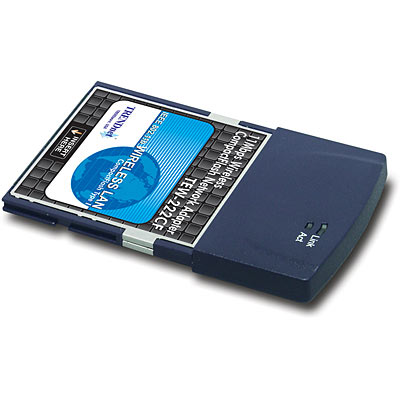

Click on image to enlarge

TRENDnet’s TEW-222CF Wireless CompactFlash Network Adapter is the latest product for wireless network application for your Pocket PC. It is the simplest and quickest way to connect your PDA to the Local Area Network, wirelessly. Designed for Pocket PC and Windows CE-base palm-sized PC’s, TRENDnet’s TEW-222CF is compliant with the IEEE 802.11b standard and operates with 2.4GHz Direct Sequence Spread Spectrum (DSSS) transmission technology. With the optional PCMCIA-to-CompactFlash Converter (CF-PCM), it also works with Windows based Notebook computers. The freedom to connect to the network with your PDA has never been so easy without the hassles of wires, cables, or installation!

Low interference and high susceptibility guarantee reliable performance
Complies with CompactFlash Type-I standard
2.4 GHz frequency band

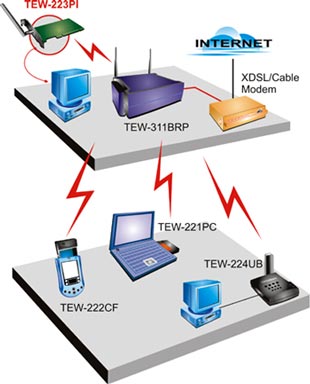

Supports Ad-Hoc (peer-to-peer) mode and Infrastructure (Access Point) mode wireless network architectures
Dynamically shifts between 11, 5.5, 2, and 1 Mbps network speed (based on signal strength), for maximum availability and reliability of connection
Allows user to move between Access Points without reconfiguring the settings
Antenna is built into the adapter with LED indicating Link status
Optional CompactFlash-to-PCMCIA Adapter (CF-PCM) for working with Notebook Computers
Provides drivers supporting Windows CE 3.0/Pocket PC 2002/98/ME/NT4.0/2000/XP
64/128-bit Wired Equivalent Privacy (WEP)
Coverage distance up to 60 meters indoor and up to 250 meters outdoors
3-year Warranty

Hardware
Adapter Type:	CompactFlash Type-I
Standards:	IEEE 802.11b, Wi-Fi
Data Rate:	11Mbps, 5.5Mbps, 2Mbps, and 1Mbps
Module Technique:	Direct Sequence Spread Spectrum (DSSS), CCK, DQPSK, DBPSK
Antenna:	Internal Chip Antenna
Media Access Protocol:	CSMA/CA with ACK
LED Indicator:	Link, Act
Frequency:	2.4 to 2.4835GHz (Industrial Scientific Medical Band)
Output Power:	15dBm (typical)
Receiving Sensitivity:	-82dBm @11Mbps with 10-5 Bit Error Rate (BER) (typical)
Power Requirement:	Operating Voltage: 5V or 3.3V TX: 300mA (max) RX: 200mA (max) Sleep Mode: 50mA
Channels:	11 Channels (US & Canada)
Dimensions:	69 x 43 x 6.5 mm (2.7 x 1.7 x 0.26 inch)
Weight:	15g (0.48oz.)
Temperature:	Operating: 0° ~ 65° C (32° ~ 149° F) Storage: -20° ~ 75° C (-4° ~ 167° F)
Humidity:	Max. 95% (Non-condensing)
Certification:	FCC, CE, EN300328 and EN300826 in Europe

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.
