16-Port 10/100Mbps Switch
TE100-S16D (Version v1.0R)
  • Compact form factor
  • 16 x 10/100Mbps Auto-MDIX RJ-45 ports
  • Plug and Play solution
  • 3.2 Gbps switching capacity


 DISCONTINUED PRODUCT
The TE100-S16D (Version v1.0R) has been discontinued.  It has been replaced by the TE100-S16Eg (Version v1.0R). For a list of discontinued products, click here.

The 16-Port 10/100Mbps Switch, model TE100-S16D, is a reliable Plug-and-Play solution in a compact form factor. Boost network efficiency with a total switching capacity of 3.2Gbps with Full-Duplex mode.

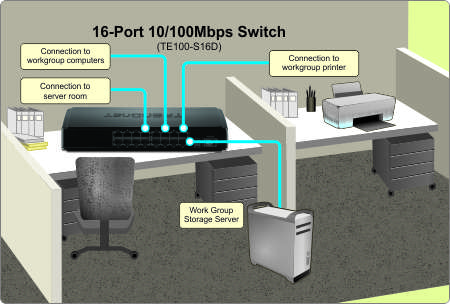

Diagnostic LEDs on the front of the switch help with network troubleshooting. IEEE 802.3x flow control and 4K MAC address entry support provide uninterrupted connectivity. This switch is well suited for networking room, departmental group, and home office applications.


  • 16 x 10/100Mbps Auto-Negotiation, Auto-MDIX Ethernet ports
  • Compliant with IEEE 802.3/IEEE 802.3u standards
  • 3.2Gbps switching fabric
  • Store-and-Forward switching architecture with non-blocking wire-speed performance
  • IEEE 802.3x flow control support
  • Provides 4k MAC address entries
  • 1.25Mbits RAM data buffer
  • Diagnostic LEDs
  • Compact housing
  • Plug & Play installation
  • 3 years limited warranty

* Max power savings compared with standard TRENDnet switches

  • Hardware
  • Standards
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX
  • IEEE 802.3x Flow Control
  • Network Media
  • Ethernet: UTP/STP Cat. 5 up to 100 m
  • Fast Ethernet: UTP/STP Cat. 5, 5e, 6, up to 100 m
  • Data Rate
  • Ethernet: 10Mbps/20Mbps (half/full-duplex)
  • Fast Ethernet: 100Mbps/200Mbps (half/full-duplex)
  • Protocol / Topology
  • CSMA/CD, Star
  • Power Consumption
  • 4.8 watts (max.)
  • Switch Fabric
  • 3.2Gbps forwarding capacity
  • Interface
  • 16 x 10/100Mbps Auto-MDIX RJ-45 ports
  • RAM Data Buffer
  • 1.25Mbits
  • Filtering Table
  • 4K entries
  • Diagnostic LED
  • Power, Link/ACT
  • Power
  • Input: 100~240V, 50/60Hz, 0.4A
  • Output: 5V DC, 2A external power adapter
  • Dimension
  • 265 x 122.7 x 41 mm (10.4 x 4.8 x 1.6 in.)
  • Weight
  • 410 g (14.4 oz)
  • Temperature
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -10° ~ 70° C (14° ~ 158° F)
  • Humidity
  • Max. 90% (non-condensing)
  • Certifications
  • CE, FCC

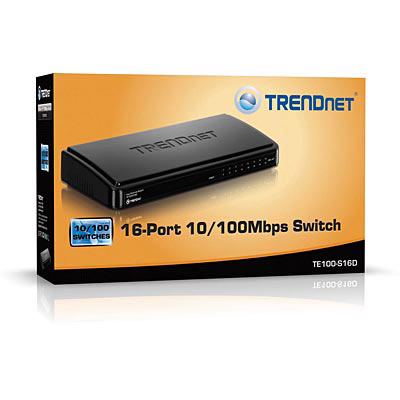

Package Contents

  • TE100-S16D
  • Multi-Language Quick Installation Guide
  • Power adapter (5V DC, 2A)
