Product Families » Switches » Unmanaged Switches » Unmanaged Gigabit Switches » TEG-S80Dg
8-Port Gigabit GREENnet Switch
TEG-S80Dg (Version v1.0R)
  • Internal power supply reduces clutter
  • GREENnet technology reduces power consumption by up to 70%*
  • 8 x Gigabit Auto-Negotiation ports
  • Sturdy metal switch with a simple Plug and Play installation

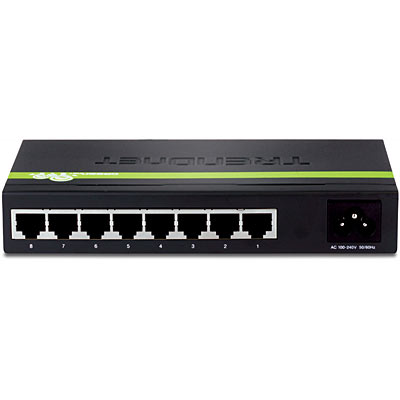

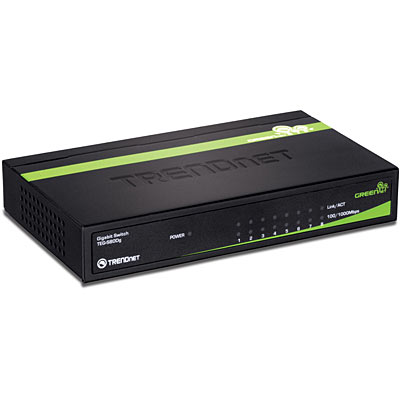

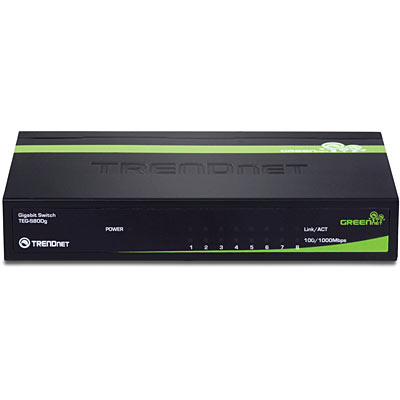

TEG-S80Dg
Click on image to enlarge

The compact 8-Port Gigabit GREENnet Switch (TEG-S80Dg) provides high bandwidth performance, ease of use and reliability, all while reducing power consumption by up to 70%.

GREENnet technology automatically adjusts power voltage as needed, resulting in substantial energy savings. An internal power supply eliminates a bulky external power adapter and frees up precious space around electrical power outlets.

Boost your office efficiency and eliminate network congestion with Gigabit speeds and total switching capacity of 16Gbps with Full-Duplex Mode. Plug and Play this sturdy metal switch for reliable high-speed network connectivity.

*Max power savings compared with standard TRENDnet switches.


RoHS Compliant

  • 8 x 10/100/1000Mbps Auto-Negotiation, Auto-MDIX Gigabit Ethernet ports
  • GREENnet technology reduces power consumptions
  • Store-and-Forward switching architecture with non-blocking wire-speed performance
  • IEEE 802.3x Flow Control for full-duplex mode
  • Back pressure Flow Control for half-duplex mode
  • Integrated address look-up engine with 4K absolute MAC address table and 128KBytes RAM data buffering
  • Operates and maximizes packet filtering and forwarding rate
  • Jumbo Frame support up to 9612Bytes
  • Sturdy metal housing

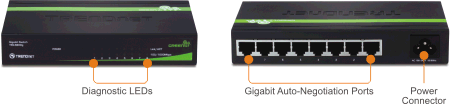

  • Diagnostic LEDs and Plug & Play
  • 3-year limited warranty

*Max power savings compared with standard TRENDnet switches.
Hardware
Standards IEEE 802.3 10Base-T; IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T; IEEE 802.3x Flow Control
Network Media Ethernet: Cat. 3,4,5, up to 100m Fast Ethernet: Cat. 5, up to 100m Gigabit Ethernet: Cat. 5, 5e,6, up to 100m
Data Rate Ethernet: 10Mbps/20Mbps (half/full-duplex) Fast Ethernet: 100Mbps/200Mbps (half/full-duplex) Gigabit Ethernet: 2000Mbps (full-duplex)
Protocol / Topology CSMA/CD, Star
Power Consumption 5.1w (max)
Switch Fabric 16Gbps forwarding capacity
Interface 8 x 10/100/1000Mbps Auto-MDIX RJ-45 ports
Data RAM Buffer 128KBytes
Filtering Table 4K entries
Diagnostic LED Power, Link/ACT, 100Mbps, 1000Mbps
Power 100~240VAC, 50/60Hz Internal universal switching power
Dimension 171 x 98 x 28mm (6.7 x 3.86 x 1.1 in)
Weight 450g (15.9oz)
Temperature Operating: 0° ~ 40° C (32° ~ 104° F) Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity 5%~90% (non-condensing)
Certifications FCC, CE

*Max power savings compared with standard TRENDnet switches.



TEG-S80Dg

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info
Email a Friend
Datasheet
Quick Installation Guide
Downloads
View Knowledgebase
Register Your Product
Package Contents
  • TEG-S80Dg
  • Multi-Language Quick Installation Guide
  • Power cord
