Product Families » Switches » Unmanaged Switches » Unmanaged Fast Ethernet Switches » TE100-S80g
8-Port 10/100Mbps GREENnet Switch
TE100-S80g (Version v1.0R)
  • GREENnet technology reduces power consumption by up to 40%*
  • 8 x 10/100Mbps Auto-Negotiation RJ-45ports
  • Build an energy efficient network in minutes
  • Plug and Play this sturdy metal switch

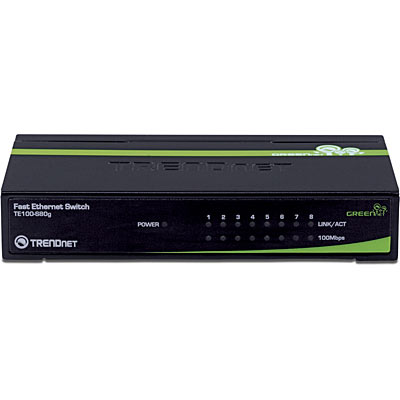

TE100-S80g
Click on image to enlarge

The compact 8-Port 10/100Mbps GREENnet Switch (model TE100-S80g) provides improved bandwidth performance, ease of use and reliability, all while reducing power consumption by up to 40%*.

GREENnet technology automatically adjusts power voltage as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management required.

Boost your office efficiency and reduce network congestion with a total switching capacity of 1.6Gbps with Full-Duplex Mode. Plug and Play this sturdy metal switch for reliable high-speed network connectivity.


RoHS Compliant

  • 8 x 10/100Mbps Auto-Negotiation, Auto-MDIX Ethernet Ports
  • GREENnet technology reduces power consumption when:
    1. Ethernet port is not in use
    2. Connected device is turned off
    3. Connected device is in power-saving mode
    4. Based on Ethernet cable length
  • Compliant with IEEE 802.3/IEEE 802.3u standards
  • 1.6Gbps switching fabric
  • Store-and-Forward switching architecture with non-blocking wire-speed performance
  • IEEE 802.3x flow control support
  • Provides 1k MAC address entries
  • Compliant with Windows, Linux, and Mac Operating Systems
  • Sturdy metal housing
  • Diagnostic LEDs
  • Plug & Play installation
  • 3-year limited warranty
Hardware
Standards IEEE 802.3 10Base-T; IEEE 802.3u 100Base-TX; IEEE 802.3x Flow Control
Network Media Ethernet: UTP/STP Cat. 3, 4, 5 up to 100m
Fast Ethernet: UTP/STP Cat. 5, 5e, 6 up to 100m
Data Rate Ethernet: 10Mbps/20Mbps (half/full-duplex) Fast Ethernet: 100Mbps/200Mbps (half/full-duplex)
Protocol / Topology CSMA/CD, Star
Power Consumption 2.5W (max)
Switch Fabric 1.6Gbps forwarding capacity
Interface 8 x 10/100Mbps Auto-MDIX RJ-45 Ports
Data RAM Buffer 768Kbits
Filtering Table 1K MAC entries
Diagnostic LED Power, Link/ACT, 100Mbps
Power Adapter 7.5V DC, 1A external power adapter
Dimension 136 x 25 x 70mm (5.35 x 0.98 x 2.76 in.)
Weight 265g (9.2oz)
Temperature Operating: 0° ~ 40° C (32° ~ 104° F) Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity Operating: 10% ~ 90% (non-condensing) Storage: 5% ~ 90% (non-condensing)
Certifications FCC, CE

TE100-S80g

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.
Additional Info
Email a Friend
Datasheet
Quick Installation Guide
Downloads
View Knowledgebase
Register Your Product
Package Contents
  • TE100-S80g
  • Multi-Language Quick Installation Guide
  • Power adapter (7.5V DC, 1A)
