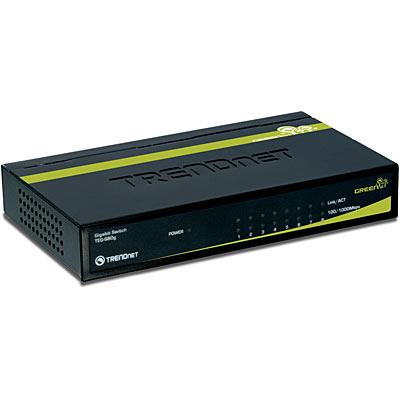

8-Port Gigabit GREENnet Switch
TEG-S80g (Version V1.0R)

GREENnet technology reduces power consumption by up to 70%*
8 x Auto-Negotiation Gigabit ports
Build a high performance energy efficient Gigabit network in minutes
Sturdy metal switch with a simple Plug and Play installation

Click on image to enlarge

The compact 8-Port Gigabit GREENnet Switch provides high bandwidth performance, ease of use and reliability, all while reducing power consumption by up to 70%.

GREENnet technology automatically adjusts power voltage as needed, resulting in substantial energy savings.

Boost your office efficiency and eliminate network congestion with Gigabit speeds and total switching capacity of 16Gbps with Full-Duplex Mode. Plug and Play this sturdy metal switch for reliable high-speed network connectivity.

8 x 10/100/1000Mbps Auto-Negotiation, Auto-MDIX Gigabit Ethernet ports
GREENnet technology reduces power consumption when:

Ethernet port is not in use
Connected device is turned off
Connected device is in power-saving mode
Based on Ethernet cable length

Store-and-Forward switching architecture with non-blocking wire-speed performance
IEEE 802.3x Flow Control for full-duplex mode
Back pressure Flow Control for half-duplex mode
Integrated address look-up engine with 4K absolute MAC address table and 128KBytes RAM data buffering
Operates and maximizes packet filtering and forwarding rate
Jumbo Frame support up to 9612Bytes
Sturdy metal housing
Diagnostic LEDs and Plug & Play
3-year limited warranty

Hardware
Standards	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T IEEE 802.3x Flow Control
Network Media	Ethernet: Cat. 3,4,5, up to 100m Fast Ethernet: Cat. 5, up to 100m Gigabit Ethernet: Cat. 5, 5e, 6, up to 100m
Data Rate	Ethernet: 10Mbps/20Mbps (Half/Full-Duplex) Fast Ethernet: 100Mbps/200Mbps (Half/Full-Duplex) Gigabit Ethernet: 2000Mbps (Full-Duplex)
Protocol / Topology	CSMA/CD, Star
Power Consumption	5w (max)
Switch Fabric	16Gbps Forwarding Capacity

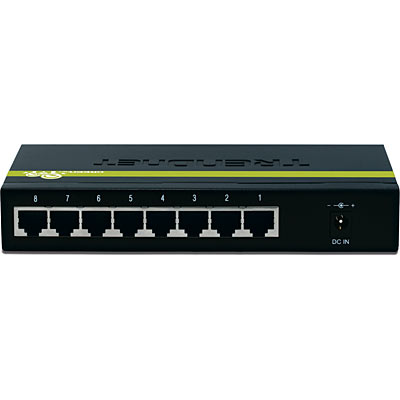

Interface	8 10/100/1000Mbps Auto-MDIX RJ-45 Ports
Data RAM Buffer	128KBytes
Filtering Table	4K entries
Diagnostic LED	Power, Link/ACT, 100Mbps, 1000Mbps
Power Adapter	7.5V DC, 1A external power adapter
Dimension	171 x 98 x 28mm (6.7 x 3.86 x 1.1 in)
Weight	450g (15.9 oz)
Temperature	Operating: 0° ~ 40° C (32° ~ 104° F) Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity	5%~90% (non-condensing)
Certifications	FCC, CE

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

Package Contents

TEG-S80g
Multi-Language Quick Installation Guide
