8-Port 10/100Mbps Switch
TE100-S8 (Version 1.0R)
  • Build a reliable Fast Ethernet network in minutes
  • Easy Plug and Play installation
  • Auto-Negotiation optimizes networking speeds for all 8 ports


 DISCONTINUED PRODUCT
The TE100-S8 (Version 1.0R) has been discontinued.  For a list of discontinued products, click here.
TE100-S8 is an Auto-MDIX switch designed specifically to boost network performance by eliminating network congestions and unnecessary network traffics. Each port on the Switch provides dedicated bandwidth and can negotiate between 10/100Mbps network speeds and half/full duplex modes. Plug-N-Play provides cost-effective and high performance solutions.

  • 8 10/100Mbps Auto-Negotiation, Auto-MDIX Fast Ethernet RJ-45 ports
  • Compliant with IEEE 802.3 / IEEE 802.3u standards
  • IEEE 802.3x Flow Control support
  • Provide 1K MAC address entries
  • Compliant with Windows, Linux, and Mac Operating Systems.
  • Store-and-Forward Switching method
  • Non-blocking Architecture
  • Diagnostic LEDs
  • Plug & Play
  • 3-years limited warranty
  • Hardware
  • Standards
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX
  • IEEE 802.3x Flow Control
  • Network Media
  • Ethernet: UTP/STP Cat. 3,4,5, EIA/TIA-568 100-ohm
  • Fast Ethernet: UTP/STP Cat. 5. 5E, EIA/TIA-568 100-ohm
  • Data Rate
  • Ethernet: 10Mbps/20Mbps (Half/Full-Duplex) Fast
  • Ethernet: 100Mbps/200Mbps (Half/Full-Duplex)
  • Switch Fabric
  • 1.6Gbps Forwarding Capacity

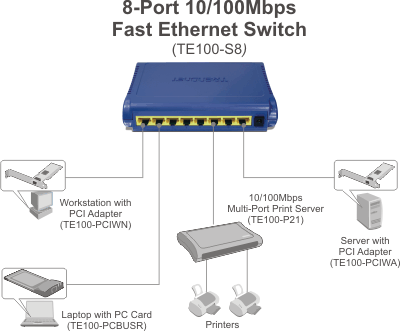

  • Topology
  • Star
  • Interface

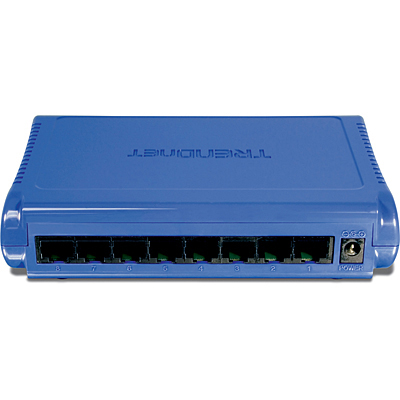

  • 8 10/100Mbps Auto-MDIX RJ-45 Ports
  • Filtering Table
  • 1K Entries per device
  • Buffer Memory
  • 512Kbits per device
  • Power Consumption
  • 2.8 watts (max)

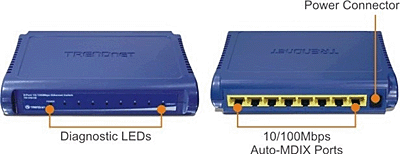

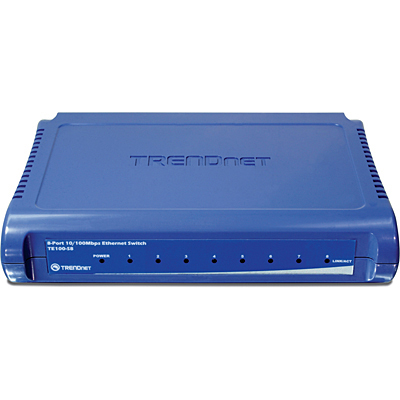

  • Diagnostic LED
  • Power, Link/ACT, 100Mbps
  • Power Adapter
  • Switching Power 5V DC 800mAor
  • Linear Power 7.5V DC 1A
  • Dimension
  • 154 x 110 x 33mm (6 x 4.3 x 1.3 inches)
  • Weight
  • 225g (8oz.)
  • Temperature
  • Operating: 0° ~ 50° C (32° ~ 122° F)
  • Humidity
  • 10%~90% (Non-Condensing)
  • Certification
  • CE, FCC


Package Contents

  • TE100-S8
  • Multi-Language QuickInstallation Guide
  • Power Adapter
    (5V DC, 800mA)
