5-Port Gigabit GREENnet Switch
TEG-S5g (Version 1.0R)

GREENnet technology reduces power consumption by up to 70%*
5 Gigabit Auto-Negotiation ports
Build a high performance energy efficient Gigabit network in minutes
Simple Plug and Play installation of this compact desktop switch

DISCONTINUED PRODUCT

The TEG-S5g (Version 1.0R) has been discontinued. It has been replaced by the TEG-S5g (Version v2.0R). For a list of discontinued products, click here.

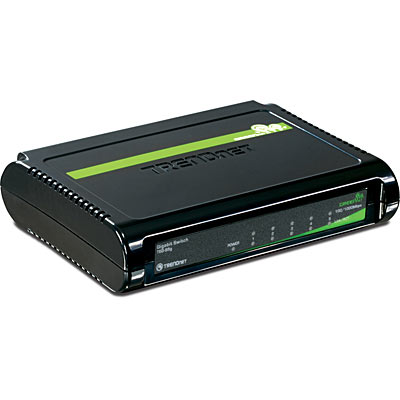

Click on image to enlarge

The compact 5-Port Gigabit GREENnet Switch provides high bandwidth performance, ease of use and reliability, all while reducing power consumption by up to 70%*.

GREENnet technology automatically adjusts power voltage as needed, resulting in substantial energy savings.

Boost your office efficiency and eliminate network congestion with Gigabit speeds and total switching capacity of 10Gbps with Full-Duplex Mode. Plug and Play this desktop switch for reliable high-speed network connectivity.

5 x 10/100/1000Mbps Auto-Negotiation, Auto-MDIX Gigabit Ethernet Ports
Store-and-Forward switching architecture with non-blocking wire-speed performance
IEEE 802.3x Flow Control for full-duplex mode
Back pressure Flow Control for half-duplex mode
Integrated address look-up engine with 1K absolute MAC address table and 104KBytes RAM data buffering
Operates and maximizes packet filtering and forwarding rate
Jumbo Frame support up to 9216bytes
Diagnostic LEDs and Plug & Play
3-year limited warranty

Hardware
Standards	IEEE 802.3 10Base-T; IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T; IEEE 802.3x Flow Control
Network Media	Ethernet: Cat. 3, 4, 5, up to 100m Fast Ethernet: Cat. 5, up to 100m Gigabit Ethernet: Cat. 5, 5e, 6, up to 100m
Data Rate	Ethernet: 10Mbps/20Mbps (half/full-duplex) Fast Ethernet: 100Mbps/200Mbps (half/full-duplex) Gigabit Ethernet: 2000Mbps (full-duplex)
Protocol / Topology	CSMA/CD, Star
Power Consumption	3w (max)
Switch Fabric	10Gbps forwarding capacity

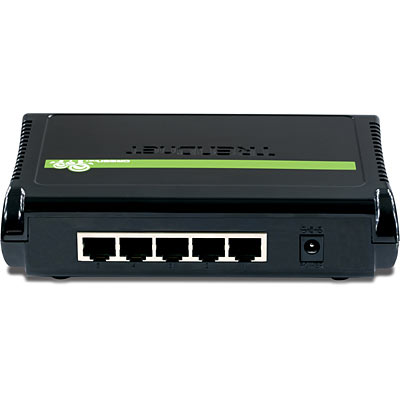

Interface	5 x 10/100/1000Mbps Auto-MDIX RJ-45 Ports
Data RAM Buffer	104Kbytes
Filtering Table	1Kbytes entries

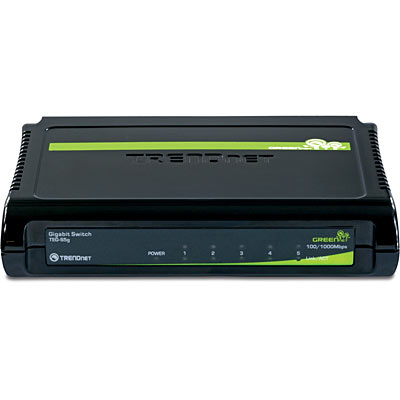

Diagnostic LED	Power, Link/ACT, 100Mbps, 1000Mbps
Power Adapter	5V DC, 2.5A external power adapter
Dimension	150 x 105 x 33mm (5.9 x 4.1 x 1.3 in)
Weight	225g (8oz)
Temperature	0° ~ 50° C (32° ~ 122° F)
Humidity	10%~90% (non-condensing)
Certifications	FCC, CE

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

Package Contents

TEG-S5g
Multi-Language Quick Installation Guide
Power Adapter
