2.5” USB 3.0 External Enclosure
TU3-S25 (Version v1.0R)
  • Super speed 5Gbps USB 3.0
  • Supports one 2.5” SATA I/II hard drive (sold separately)
  • Compatible with most operating systems
  • Backward compatible with USB 2.0 ports
  • Plug and Play with no software installation required


 DISCONTINUED PRODUCT
The TU3-S25 (Version v1.0R) has been discontinued.  For a list of discontinued products, click here.

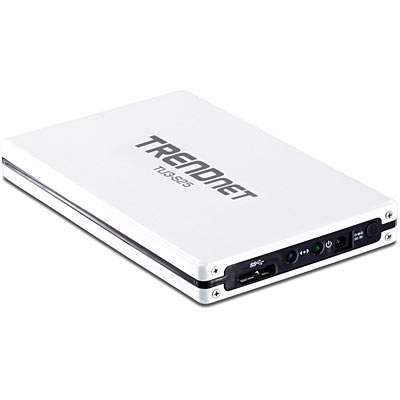

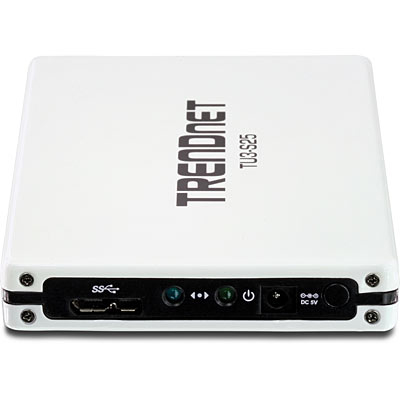

The 2.5” USB 3.0 External Enclosure, model TU3-S25, supports one 2.5” SATA I or II hard disk drive with storage capacities in excess of 1 Terabyte (hard drive sold separately). Store and transfer content at blazing fast 5Gbps USB 3.0 speeds—10 times faster than USB 2.0.

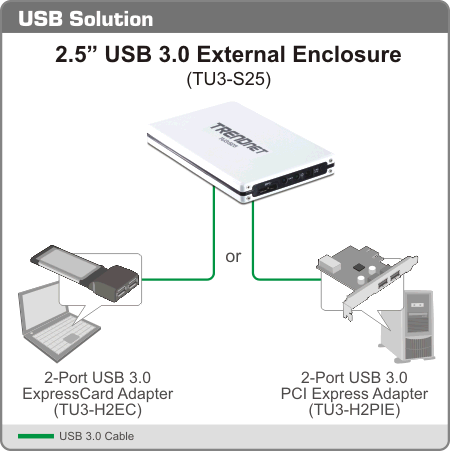

Install a SATA I or II hard drive and connect the enclosure to a 5Gbps USB 3.0 port on your computer. USB 3.0 is backward compatible with USB 2.0 ports. An aluminum housing cools the enclosed hard drive and there is a convenient power button on the front of the enclosure. Save time by transferring large files at breakthrough 5Gbps USB 3.0 speeds.



RoHS Compliant
  • 1 x USB 3.0 Type Micro-B port
  • Backwards compatible with USB 2.0, 1.1, and 1.0 connections
  • Supports all USB speeds: Super speed (USB 3.0: 5Gbps*), High speed (USB 2.0: 480Mbps), Full speed (USB 1.1: 12Mbps), and Low speed (USB 1.0: 1.5Mbps)
  • Supports one 2.5” SATA/SATA II hard drive or Solid State Drive (SSD)
  • Maximum hard drive capacity supported: 2TB
  • Compatible with Windows, Mac, and Linux operating systems**
  • Data transfer LEDs
  • Light weight aluminum housing
  • Sleek and small external enclosure
  • Plug and play support with no driver installation required
  • 2-year limited warranty

*Data is transferred over USB3.0 connections at up to 5Gbps. However actual data throughput may be significantly affected by choice of hard drive, computer system architecture, CPU loading, and other factors.

**3.0 super speeds are based on compatible operating systems.

  • Hardware
  • USB Standards
  • USB 3.0 Backwards compatible with USB 2.0, 1.1, and 1.0
  • External Ports
  • 1 x USB 3.0 Type Micro-B port
  • HD Interface
  • 1 x SATA/SATA II
  • Compatible drives
  • 2.5 in. HDD or SSD
  • HD Capacity
  • 2TB (max.)
  • Supported OS
  • Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit) Mac OS X v10.4 to 10.6** Linux
  • Data Rates
  • Super speed: 5Gbps* (USB 3.0) High speed: 480Mbps (USB 2.0) Full speed: 12Mbps (USB 1.1) Low speed: 1.5Mbps (USB 1.0)
  • HD Transfer Rates
  • SATA II: up to 3Gbps SATA I: up to 1.5Gbps
  • Power Switch
  • On/off
  • Dimensions (L x W x D)
  • 122 x 75 x 15 mm (4.8 x 3 x 0.6 in.)
  • Weight
  • 62.4 g (2.2 oz)
  • Enclosure Material
  • Aluminum and PVC
  • Temperature
  • Operating: 10°C ~ 40°C (50°F ~ 104°F) Storage: -10°C ~ 80°C (14°F ~ 176°F)
  • Humidity
  • Max. 90% non-condensing
  • Certifications
  • CE, FCC
  •

    Package Contents

    • TU3-S25
    • Multi-Language Quick Installation Guide
    • CD-ROM (User’s Guide)
    • USB 3.0 Type A to Type Micro-B cable(0.9 m / 3 ft.)
