Product Families » Network Adapters » Wired Network Adapters » TE100-PCIFC

100Base Multi-Mode SC Fiber-to-PCI Adapter
TE100-PCIFC (Version v1.0R)

SC-type Multi-Mode fiber to PCI adapter
Supports fiber connections for distances of up to 2km
IEEE 802.3x and 802.1Q support
Energy saving with ACPI 1.0 functionality

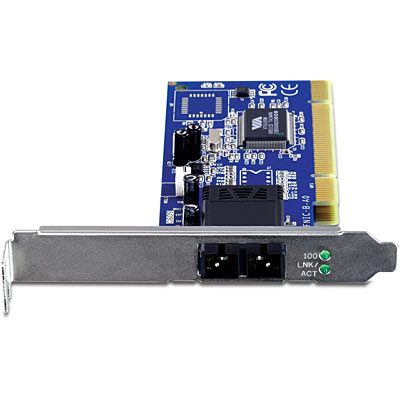

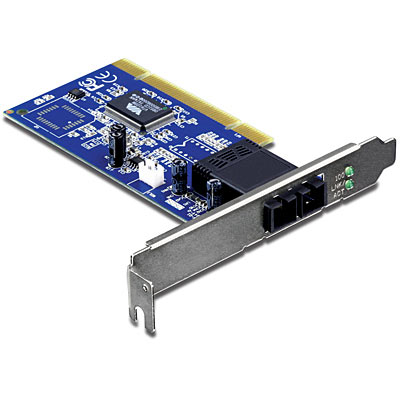

Click on image to enlarge

The 100Base Multi-Mode SC Fiber-to-PCI Adapter (model TE100-PCIFC) provides a reliable high performance connection from a PC or server to a Multi-Mode SC-type fiber connector for distances of up to 2 kilometers (1.2 miles). Full-duplex mode supports data transfer speeds of up to 200Mbps.

Supports IEEE 802.3x Flow Control and 802.1Q VLAN. Optimize power consumption with advanced Configuration Power Management Interface (ACPI 1.0) technology.

1 x 100Base-FX SC-type Multi-Mode fiber port
PCI 2.2 specification compliant
Incorporates Advanced Configuration Power Management Interface (ACPI 1.0)
Supports PC99, PC2001 and Net PC hardware system designer guide.
Separates 2Kbyte FIFO for receiver and transmitter controllers
Supports 802.3x Full-Duplex flow control and multiple pause frame
Supports IEEE 802.1Q VLAN tagging
Supports Windows 7/Vista/XP/2000/ME/98SE, linux and more operating systems
Intuitive diagnostic utility for windows 98SE/ME/2000/2003 Server *
3-years limited warranty

Model Name	Wavelength	Media	Optical Output Power (dBm)		Optical Input Power (dBm)		Power Budget
			Min	Max	Sensitivity	Max
TE100-PCIFC	1310nm	MMF	-19	-14	-32	-14	13dBm

Hardware
Standards	IEEE 802.3u 100Base-FX IEEE 802.3x, IEEE 802.1Q
Network Media	100Base-FX: 62/125µm Multi-Mode fiber optic cable, for distances up to 2km Wavelength: 1310nm
Interface	PCI / Multi-Mode SC-type port
Power Consumption	1 watt (max)
Diagnostic LED	LNK(link)/ACT(activity), 100(100Mbps)
Supported OS	Windows 7(32/64-bit)/Vista (32/64-bit)/2003 Server(32/64-bit)/XP(32/64-bit)/2000/ME/98(SE) Novell Netware 3.11, 3.12, 4.x, 5.x, 6.0, Client 32 Linux Kernel 2.2.x/2.4.x/2.6.x FreeBSD 3.2, 4.0, 4.11, 4.2, 5.x SCO UnixWare 7.x/OpenUnix 8, SCO UNIX 5.0
Data Rate	200Mbps (Full-Duplex)
Dimension	122 x 117mm (4.8 x 4.6in)
Weight	80g (2.88oz)
Temperature	Operating: 0°C ~ 45°C (32°F ~ 113°F) Storage: -10°C ~ 70°C (14°F ~ 158°F)
Humidity	5%~95% (non-condensing)
Certifications	CE, FCC

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

Package Contents

TE100-PCIFC
Multi-Language Quick Installation Guide
CD-ROM (Driver & User’s Guide)
