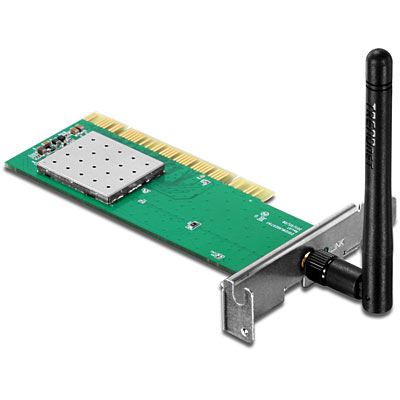

Low Profile N150 Wireless PCI Adapter
TEW-703PIL (Version v1.0R)
  • High performance wireless n connectivity for a low profile desktop computer
  • LED indicator conveys connection status
  • Detachable antenna
  • Advanced wireless encryption

The Low Profile N150 Wireless PCI Adapter, model TEW-703PIL, connects a low profile desktop computer to a high speed wireless n network. This adapter installs quickly to a free PCI slot on a Window’s based low profile desktop computer. An LED conveys wireless connection status. Advanced wireless encryption protects your valuable data. A detachable antenna gives users the ability to change the connected antenna. Stream media, download files, and play games on a desktop computer over a wireless connection.

  • Compatible with low profile desktop computers
  • Wi-Fi compliant with IEEE 802.11n standard
  • Backwards compatible with IEEE 802.11g and IEEE 802.11b devices
  • Supports Ad-Hoc (Peer-to-Peer b/g only) or Infrastructure (AP-Client) mode
  • High-speed data rates up to 150Mbps using an IEEE 802.11n connection
  • Dynamic Data Rate Scaling from 150Mbps to 1Mbps
  • Maximum reliability, throughput and connectivity with Automatic Data Rate Switching
  • Supports advanced wireless encryption up to WPA/WPA2-RADIUS
  • Easy user setup and diagnostic utilities
  • Coverage of up to 50 meters indoor and 150 meters outdoor *
  • 3-year limited warranty

* Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.

  • Hardware
  • Interface
  • 32-Bit PCI 2.1 Bus
  • Compatible with low profile desktop computers
  • Standards
  • IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
  • LED Indicator
  • Link/ Activity
  • Power Consumption
  • Receive mode: 350mA (max.)
  • Transmit mode: 400mA (max.)
  • Supported OS
  • Windows® 8, 7, Vista, XP
  • Dimensions
  • 120 x 44 mm (4.7 x 1.75 in.)
  • Weight
  • 55 g (1.8 oz)
  • Temperature
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -10° ~ 70° C (14° ~ 158° F)
  • Humidity
  • 95% max. (non-condensing)
  • Certifications
  • CE, FCC
  • Wireless
  • Modulation
  • DBPSK/DQPSK/CCK/OFDM (BPSK/QPSK/16-QAM/64-QAM)
  • Antenna
  • 1 x 2dBi dipole detachable antenna with Reverse SMA connector
  • Frequency
  • 2.412 ~ 2.484 GHz
  • Data Rate (auto fallback)
  • 802.11b: up to 11Mbps
  • 802.11g: up to 54Mbps
  • 802.11n: up to 150Mbps
  • Output Power
  • 802.11b: 15dBm (typical)
  • 802.11g: 14dBm (typical)
  • 802.11n : 12dBm (typical)
  • Receiving Sensitivity
  • 802.11b: -84dBm (typical) at 11Mbps
  • 802.11g: -65dBm (typical) at 54Mbps
  • 802.11n: -61dBm (typical) at 150Mbps
  • Encryption
  • 64/128-bit WEP (Hex & ASCII), WPA/WPA2 (TKIP/AES), WPA-PSK/WPA2-PSK
  • Channels
  • 1~11 (FCC), 1~13 (ETSI)


Package Contents

  • TEW-703PIL
  • CD-ROM (Utility & User’s Guide)
  • Multi-Language Quick Installation Guide
