Product Families » Network Adapters » Wireless Network Adapters » TEW-703PI
N150 Wireless PCI Adapter
TEW-703PI (Version v1.0R)
  • High performance wireless n connectivity for a desktop computer
  • LED indicator conveys connection status
  • Detachable antenna
  • Advanced wireless encryption

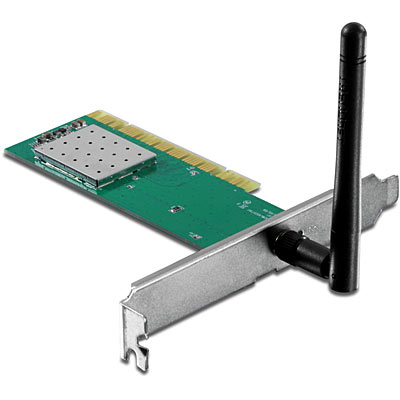

TEW-703PI
Click on image to enlarge

The N150 Wireless PCI Adapter, model TEW-703PI, connects a desktop computer to a high speed wireless n network.

This adapter installs quickly to a free PCI slot on a Window’s based desktop computer. An LED conveys wireless connection status. Advanced wireless encryption protects your valuable data. A detachable antenna gives users the ability to change the connected antenna. Stream media, download files, and play games on a desktop computer over a wireless connection.

  • Wi-Fi compliant with IEEE 802.11n standard
  • Backwards compatible with  IEEE 802.11g and IEEE 802.11b devices
  • Supports Ad-Hoc (Peer-to-Peer b/g only) or Infrastructure (AP-Client) mode
  • High-speed data rates up to 150Mbps using an IEEE 802.11n connection
  • Dynamic Data Rate Scaling from 150Mbps to 1Mbps
  • Maximum reliability, throughput, and connectivity with Automatic Data Rate Switching
  • Supports advanced wireless encryption up to WPA/WPA2-RADIUS
  • Easy user setup and diagnostic utilities
  • Coverage of up to 100 meters indoor and 300 meters outdoor*
  • 3-year limited warranty

* Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.

Hardware
Interface 32-Bit PCI 2.1 Bus
Standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
LED Indicator Link/ Activity
Power Consumption
  • Receive mode: 350mA (max.)
  • Transmit mode: 400mA (max.)
Supported OS Windows 8, 7, Vista, and XP (32/64-bit for all windows)
Dimensions 120 x 44 mm (4.7 x 1.75 in.)
Weight 55 g (1.8 oz)
Temperature
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity 95% max. (non-condensing)
Certifications CE, FCC
Wireless
Modulation DBPSK/DQPSK/CCK/OFDM (BPSK/QPSK/16-QAM/64-QAM)
Antenna 1 x 2dBi dipole detachable antenna with Reverse SMA connector
Frequency 2.412 ~ 2.484 GHz
Data Rate (auto fallback)
  • 802.11b: up to 11Mbps
  • 802.11g: up to 54Mbps
  • 802.11n: up to 150Mbps
Output Power
  • 802.11b: 15dBm (typical)
  • 802.11g: 14dBm (typical)
  • 802.11n: 12dBm (typical)
Receiving Sensitivity
  • 802.11b: -84dBm (typical) at 11Mbps
  • 802.11g: -65dBm (typical) at 54Mbps
  • 802.11n: -61dBm (typical) at 150Mbps
Encryption 64/128-bit WEP (Hex & ASCII), WPA/WPA2 (TKIP/AES), WPA-PSK/WPA2-PSK
Channels 1~11 (FCC), 1~13 (ETSI)

TEW-703PI

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.
Additional Info
Email a Friend
Datasheet
Quick Installation Guide
Downloads
View Knowledgebase
Register Your Product
Package Contents
  • TEW-703PI
  • CD-ROM (Utility & User’s Guide)
  • Multi-Language Quick Installation Guide
