Product Families » Wireless Networking » N150 Wireless » TEW-711BR

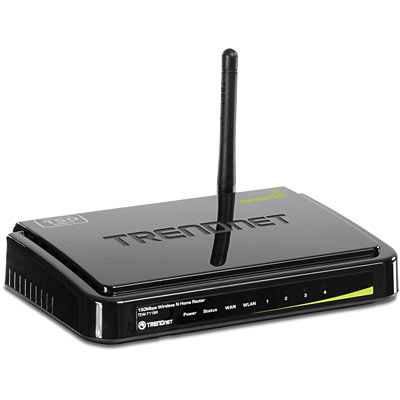

N150 Wireless Home Router
TEW-711BR (Version v1.0R)
  • Stream video, download files, talk online and play games wirelessly
  • Connect computers with one-touch Wi-Fi Protected Setup (WPS)
  • Up to 50% energy savings with GREENnet technology


TEW-711BR
Click on image to enlarge

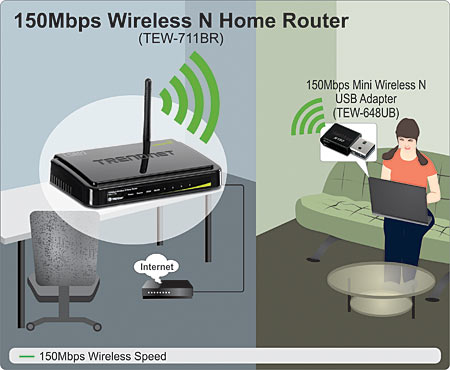

TRENDnet’s N150 Wireless Home Router, model TEW-711BR, provides reliable 150Mbps wireless n speed and coverage to share files, play games, and surf the Internet.

Advanced encryption protects your wireless network, Access Control tools help block unwanted Websites and unknown users, and embedded GREENnet technology reduces power consumption by up to 50%.

WMM® Quality of Service (QoS) technology prioritizes gaming, Internet calls, and video streams. Wi-Fi Protected Setup (WPS) connects other WPS supported wireless adapters at the touch of a button. LEDs on the front of the router convey device status. Network wired devices to the four Fast Ethernet ports on the back of the router.


RoHS Compliant

  • 4 x 10/100Mbps Auto-MDIX LAN ports
  • 1 x 10/100Mbps Auto-MDIX WAN port (Internet)
  • High-speed data rates of up to 150Mbps based on IEEE 802.11n*
  • Compliant with IEEE 802.11b/g standards
  • GREENnet technology reduces power consumption by up to 50%
  • Compatible with most popular cable/DSL Internet service providers using Dynamic/Static IP, PPPoE, PPTP and L2TP protocols

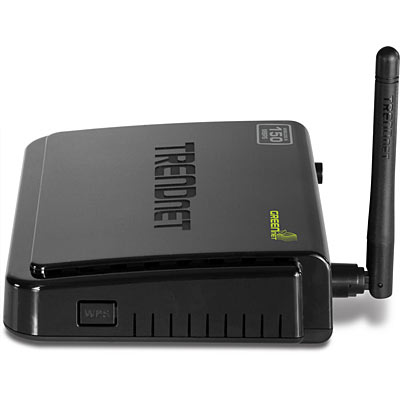

  • One touch wireless connection to wireless clients using the WPS button
  • Advanced wireless security of up to WPA2-RADIUS
  • Internet Access Control (MAC Address, Domain, and IP Filtering)
  • Easy setup via Web browser using  Internet Explorer 6.0 or above, Firefox 2.0 or above, Chrome, Opera, Safari
  • Firewall features Network Address Translation (NAT)
  • Virtual server and Application Level Gateway (ALG) services for special Internet applications
  • Universal Plug and Play (UPnP) for auto discovery and support for device configuration of Internet applications
  • Dynamic DNS Client for dynamic Internet IP resolution
  • Wi-Fi Multimedia (WMM) Quality of Service (QoS) data prioritization
  • Indoor range up to 100 meters (330 ft.) depending on the environment
  • Outdoor range up to 300 meters (980 ft.) depending on the environment
  • 3-year limited warranty

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.

Hardware
Standards IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.11b,
IEEE 802.11g, Based on IEEE 802.11n technology, IEEE 802.3az
WAN 1 x 10/100Mbps Auto-MDIX WAN port (Internet)
LAN 4 x 10/100Mbps Auto-MDIX LAN ports
WPS Button Enables Wi-Fi Protected Setup (WPS) function (Hold for 3 seconds)
Power Switch On/Off power switch
Connection Type Dynamic IP, Static (fixed) IP, PPPoE, PPTP, L2TP
Supported Web Browsers Internet Explorer 6.0 or above, Firefox 2.0 or above, Chrome, Opera, Safari
Internet Access Control MAC Address Filter, Domain/URL Filter, Protocol/IP Filter, Virtual Server, DMZ host, UPnP, PPTP/L2TP/IPsec VPN pass through
Management / Monitoring Local/remote configuration, upgrade firmware, Backup/Restore configuration via Web browser, Internal System Log, Syslog, E-Mail Logging, SNMPv1/v2c, Ping Test Tool, Dynamic DNS
Routing Static and Dynamic RIPv1/2

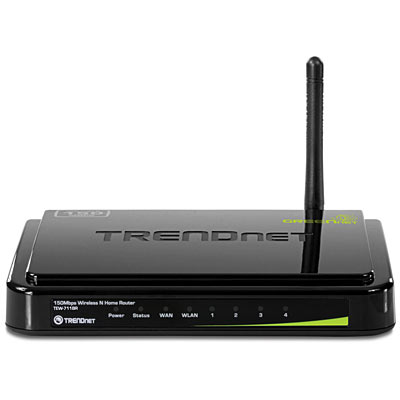

LED Indicators Power, Status, LAN1 - LAN4, WAN, WLAN
Power Adapter 5V DC, 1A external power adapter
Power Consumption 2.8 Watts (max)
Dimensions (L x W x H) 158 x 109 x 34 mm (6.2 x 4.3 x 1.3 in)
Weight 204 g (7.2 oz)
Temperature
  • Operating: 0° ~ 40°C (32° ~ 104°F)
  • Storage: -10°C ~ 70°C (-14° ~ 158°F)
Humidity Max. 95% (non-condensing)
Certifications CE, FCC
Wireless
Frequency 2.412 ~ 2.484 GHz ISM band
Antenna 1 x 2dBi fixed dipole antenna
Modulation
  • 802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps)
  • 802.11g: OFDM with BPSK, QPSK and 16/64-QAM
  • 802.11n: BPSK, QPSK, 16QAM, 64QAM with OFDM
Media Access Protocol CSMA/CA with ACK
Data Rate
  • 802.11b: up to 11Mbps
  • 802.11g: up to 54Mbps
  • 802.11n: up to 150Mbps
Output Power
  • 802.11b: 15dBm (typical) @ 11Mbps
  • 802.11g: 15dBm (typical) @ 54Mbps
  • 802.11n: 13dBm (typical) @ 150Mbps
Receiving Sensitivity
  • 802.11b: -85dBm (typical) @ 11Mbps
  • 802.11g: -68dBm (typical) @ 54Mbps
  • 802.11n: -62dBm (typical) @ 150Mbps
Encryption 64/128-bit WEP (HEX/ASCII), WPA /WPA2-PSK, WPA/WPA2-RADIUS
Channels 1-11 (FCC), 1-13 (ETSI)

TEW-711BR

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info
Email a Friend
Datasheet
Quick Installation Guide
Downloads
View Knowledgebase
View Emulator
Register Your Product
Package Contents
  • TEW-711BR
  • Multi-Language Quick Installation Guide
  • CD-ROM (User’s Guide)
  • Network cable (1.5 m / 5 ft.)
  • Power adapter (5V DC, 1A)
