N450 Wireless Gaming Adapter
TEW-687GA (Version 1.0R)
  • Ultra-high performance 450Mbps Wireless N
  • Networks gaming consoles, DVRs, televisions, and receivers
  • Gigabit Ethernet port for high performance wired connections
  • One-touch connection to router with Wi-Fi Protected Setup (WPS)


 DISCONTINUED PRODUCT
The TEW-687GA (Version 1.0R) has been discontinued.  It has been replaced by the TEW-800MB (Version v1.0R). For a list of discontinued products, click here.
Watch product spotlight video:

TRENDnet’s N450 Wireless Gaming Adapter, model TEW-687GA, networks gaming consoles, televisions, and DVRs to the Internet with an ultra-high performance 450Mbps wireless connection. Setup is quick and simple, with no drivers to install and a Gigabit Ethernet port transfers wired data fast.

Advanced Multiple Input Multiple Output (MIMO) antenna technology with three spatial streams per antenna generates a maximum theoretical wireless throughput of 450Mbps. Connect to a router at the touch of a button with Wi-Fi Protected Setup (WPS). WMM® Quality of Service (QoS) technology prioritizes gaming, Internet calls, and video streams. LEDs on the front of the adapter convey device status. Cut your cables and start winning with ultra-high performance 450Mbps wireless n.

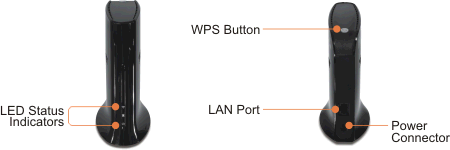

  • 1 x 10/100/1000Mbps Auto-MDIX LAN port
  • 1 x Wi-Fi Protected Setup (WPS) button
  • 1 x Reset button
  • Diagnostic LEDs
  • High performance wireless n data rates of up to 450Mbps
  • Wi-Fi compliant with IEEE 802.11n standard
  • Backwards compatible with IEEE 802.11g/b devices
  • Supports 64/128-bit WEP, WPA-PSK, and WPA2-PSK wireless security
  • Wi-Fi Multimedia (WMM) Quality of Service (QoS) data prioritization
  • Supports Multiple Input Multiple Output (MIMO) antenna technology
  • One-touch wireless security setup using the Wi-Fi Protected Setup (WPS) button when connecting to a WPS supported device
  • Maximum reliability, throughput and connectivity with automatic data rate switching
  • Easy user setup wizard and intuitive Web browser configuration
  • Coverage of up to 50 meters indoor, 100 meters outdoor *
  • 3-year limited warranty

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.

  • Hardware
  • Standards
  • IEEE 802.11b, IEEE 802.11g, and IEEE 802.11n
  • Interface
  • 1 x 10/100/1000Mbps Auto-MDIX LAN ports
  • LED Indicator
  • Power, LAN, Wireless, WPS
  • Power
  • 12V DC 0.5A power adapter
  • Buttons
  • Reset button – restores factory default settings
  • WPS button – enables WPS function
  • Power Consumption
  • 4.5 watts (max)
  • Dimensions (LxWxH)
  • 60 x 118 x 135 mm (2.4 x 4.6 x 5.3 in.)
  • Weight
  • 153 g (5.4 oz.)
  • Temperature
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -20° ~ 60° C (-4° ~ 140° F)
  • Humidity
  • Max. 90% (non-condensing)
  • Certifications
  • CE, FCC
  • Wireless
  • Frequency
  • 2.412 ~ 2.472 GHz
  • Data Rate (auto fallback)
  • 802.11b: up to 11Mbps
  • 802.11g: up to 54Mbps
  • 802.11n: up to 450Mbps
  • Output Power
  • 802.11b: 18dBm (typical)
  • 802.11g: 15dBm (typical)
  • 802.11n : 13dBm (typical)
  • Receiving Sensitivity
  • 802.11b: -84dBm (typical)
  • 802.11g: -72dBm (typical)
  • 802.11n: -69dBm (typical)
  • Encryption
  • 64/128-bit WEP , WPA/WPA2-PSK
  • Channels
  • 1~11 (FCC), 1~13 (ETSI)


Package Contents

  • TEW-687GA
  • CD-ROM
    (User’s Guide)
  • Multi-Language Quick Installation Guide
  • Network cable
    (0.6 m / 2 ft.)
  • Power adapter
    (12V DC, 0.5A)
