Product Families » Wireless Networking » N450 Wireless » N450 Wireless Adapters » TEW-687GA
N450 Wireless Gaming Adapter
TEW-687GA (Version 1.0R)
  • Ultra-high performance 450Mbps Wireless N
  • Networks gaming consoles, DVRs, televisions, and receivers
  • Gigabit Ethernet port for high performance wired connections
  • One-touch connection to router with Wi-Fi Protected Setup (WPS)

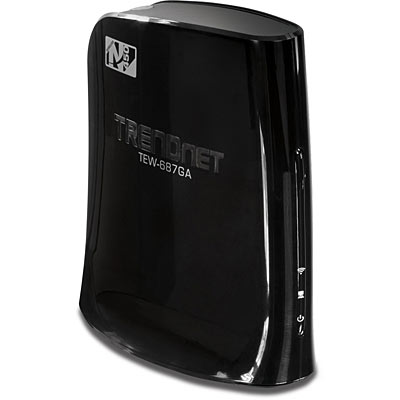

TEW-687GA
Click on image to enlarge

TRENDnet’s N450 Wireless Gaming Adapter, model TEW-687GA, networks gaming consoles, televisions, and DVRs to the Internet with an ultra-high performance 450Mbps wireless connection.

Setup is quick and simple, with no drivers to install and a Gigabit Ethernet port transfers wired data fast.

Advanced Multiple Input Multiple Output (MIMO) antenna technology with three spatial streams per antenna generates a maximum theoretical wireless throughput of 450Mbps. Connect to a router at the touch of a button with Wi-Fi Protected Setup (WPS). WMM® Quality of Service (QoS) technology prioritizes gaming, Internet calls, and video streams. LEDs on the front of the adapter convey device status. Cut your cables and start winning with ultra-high performance 450Mbps wireless n.


RoHS Compliant

  • 1 x 10/100/1000Mbps Auto-MDIX LAN port
  • 1 x Wi-Fi Protected Setup (WPS) button
  • 1 x Reset button
  • Diagnostic LEDs
  • High performance wireless n data rates of up to 450Mbps
  • Wi-Fi compliant with IEEE 802.11n standard
  • Backwards compatible with IEEE 802.11g/b devices
  • Supports 64/128-bit WEP, WPA-PSK, and WPA2-PSK wireless security
  •  Wi-Fi Multimedia (WMM) Quality of Service (QoS) data prioritization
  • Supports Multiple Input Multiple Output (MIMO) antenna technology
  • One-touch wireless security setup using the Wi-Fi Protected Setup (WPS) button when connecting to a WPS supported device
  • Maximum reliability, throughput and connectivity with automatic data rate switching
  • Easy user setup wizard and intuitive Web browser configuration
  • Coverage of up to 50 meters indoor, 100 meters outdoor *
  • 3-year limited warranty

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.

Hardware
Standards IEEE 802.11b, IEEE 802.11g, and IEEE 802.11n
Interface 1 x 10/100/1000Mbps Auto-MDIX LAN ports
LED Indicator Power, LAN, Wireless, WPS
Power 12V DC 0.5A power adapter
Buttons Reset button – restores factory default settings
WPS button – enables WPS function
Power Consumption 4.5 watts (max)
Dimensions (LxWxH) 60 x 118 x 135 mm (2.4 x 4.6 x 5.3 in.)
Weight 153 g (5.4 oz.)
Temperature
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -20° ~ 60° C (-4° ~ 140° F)
Humidity Max. 90% (non-condensing)
Certifications CE, FCC
Wireless
Frequency 2.412 ~ 2.472 GHz
Data Rate (auto fallback)
  • 802.11b: up to 11Mbps
  • 802.11g: up to 54Mbps
  • 802.11n: up to 450Mbps
Output Power
  • 802.11b: 18dBm (typical)
  • 802.11g: 15dBm (typical)
  • 802.11n : 13dBm (typical)
Receiving Sensitivity
  • 802.11b: -84dBm (typical)
  • 802.11g: -72dBm (typical)
  • 802.11n: -69dBm (typical)
Encryption 64/128-bit WEP , WPA/WPA2-PSK
Channels 1~11 (FCC), 1~13 (ETSI)

TEW-687GA

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info
Email a Friend
Datasheet
Quick Installation Guide
Downloads
View Knowledgebase
View Emulator
Register Your Product
Package Contents
  • TEW-687GA
  • CD-ROM
    (User’s Guide)
  • Multi-Language Quick Installation Guide
  • Network cable
    (0.6 m / 2 ft.)
  • Power adapter
    (12V DC, 0.5A)
