N300 Wireless Gigabit Router
TEW-639GR (Version V3.0R)

High performance 300Mbps wireless n router
Gigabit Ethernet ports for high performance wired connections
Connect computers with one-touch Wi-Fi Protected Setup (WPS)
Up to 50% energy savings with GREENwifi technology

Click on image to enlarge

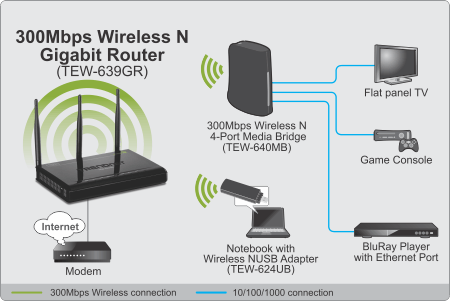

TRENDnet’s N300 Wireless Gigabit Router, model TEW-639GR, offers high performance 300Mbps wireless n networking, Gigabit Ethernet ports, and energy saving GREENwifi technology.

Gigabit Wide Area Network and Local Area Network ports transfer wired data fast. Embedded GREENwifi technology reduces wireless radio power consumption by up to 50%.

Advanced Multiple Input Multiple Output (MIMO) antenna technology eliminates wireless dead spots. Wi-Fi Protected Setup (WPS) connects other WPS supported wireless adapters at the touch of a button. The latest in wireless encryption and a manual on/off wireless radio switch protect your digital network. WMM® Quality of Service technology prioritizes gaming, Internet calls, and video streams. LEDs on the front of the router convey device status. Seamlessly stream HD media, download files, surf, and play games at wireless n Gigabit speed.

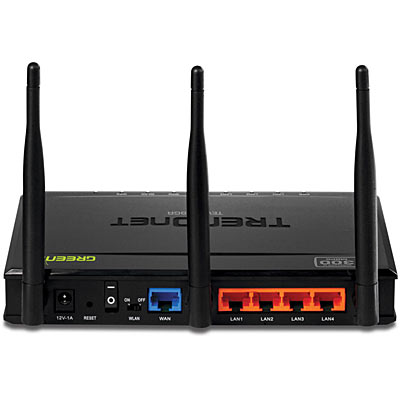

4 x 10/100/1000Mbps Auto-MDIX LAN ports
1 x 10/100/1000Mbps WAN port (Internet)
1 x external wireless radio on/off switch (turn off your wireless network when away)
1 x external Wi-Fi Protected Setup (WPS) button
One-touch wireless security setup using the Wi-Fi Protected Setup (WPS) button when connecting to a WPS adapter
Wireless Distribution System (WDS) support
Compatible with most popular cable/DSL Internet service providers using Dynamic/Static IP, PPPoE, PPTP and L2TP
High-speed wireless data rates up to 300Mbps using an IEEE 802.11n connection
3 external antennas provide high-speed performance and expansive wireless coverage
Advanced Firewall protection with Network Address Translation (NAT) and Stateful Packet Inspection (SPI)
Access restriction with Internet Access Control; time scheduling and MAC filtering
Built-in pre-configured virtual servers and Application Level Gateway services for special Internet applications
Universal Plug and Play (UPnP) for auto discovery and support for device configuration of Internet applications
Multiple pass-through sessions for popular VPN applications (IPSec, L2TP and PPTP)
WMM quality of service support
Easy setup via Web browser using the latest versions of Internet Explorer, FireFox, Safari, and Chrome
Advanced wireless encryption up to WPA2-RADIUS
3- year limited warranty

Hardware
Standards	Wired: IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX) and IEEE 802.3ab (1000BaseT) Wireless: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
WAN	1 x 10/100/1000Mbps Auto-MDIX port (Internet)
LAN	4 x 10/100/1000Mbps Auto-MDIX port
Wireless On/Off Switch	Turn on/off wireless LAN
On/Off Power Switch	Electrical power on/off switch (EU version)
WPS Button	Wi-Fi Protected Setup (WPS) automated wireless connection push button
Reset Button	Reset button to Factory Default
Connection Type	Dynamic IP, Static (fixed) IP, PPPoE, PPTP, L2TP
NAT Firewall	3K configurable NAT entries IP ranges, port ranges, and schedule Port triggering for 24 special applications ALG support
UPnP	UPnP IGD 1.0 compliant
DMZ	DMZ host, 24 configurable Virtual Servers and Game Servers
WDS	Wireless Distribution System (WDS) networking support
DNS	Static or WAN assigned DNS servers; 2 verified services for DDNS
Internet Access Control	Time based Internet access; port range/service filtering; 32 user defined schedules, 24 MAC address filter entries

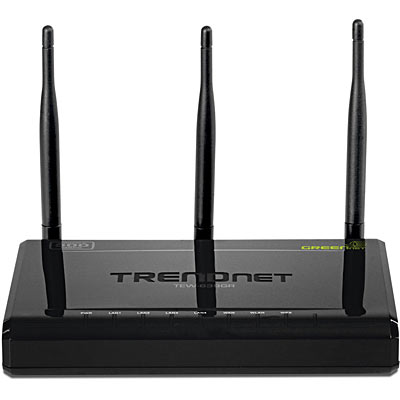

LED Indicator	Power, LAN1~LAN4, WAN, WLAN, WPS
Power Switch	On/Off power switch
Power Adapter	12V DC, 0.5A external power adapter
Power Consumption	400mA
Dimension (L x W x H)	150 x 163 x 26 mm (5.9 x 6.4 x 1.0 in)
Weight	350 g (0.8 lb)
Temperature	Operation: 0°~ 40°C (32°F~ 104°F) Storage: -20°~ 60°C (-4°F~140 °F)
Humidity	Max. 90% (non-condensing)
Certifications	CE, FCC
Wireless
Frequency	2.412 ~ 2.472 GHz
Antenna	3 x 4dBi fixed dipole antenna
Modulation	DBPSK/DQPSK/CCK/OFDM (BPSK/QPSK/16-QAM/64-QAM)
Data Rate	802.11b: up to 11Mbps 802.11g: up to 54Mbps 802.11n: up to 300Mbps
Security	WEP(HEX/ASCII): 64/128-bit WPA(AES/TKIP): WPA/WPA2-RADIUS, WPA-PSK/WPA2-PSK
Access Control	MAC Address Filter (Up to 64 entries)
Output Power	802.11b: 18dBm (typical) 802.11g: 15dBm (typical) 802.11n: 12dBm (typical)
Receiving Sensitivity	802.11b: -84dBm (typical) @ 11Mbps 802.11g: -72dBm (typical) @ 54 Mbps 802.11n: -65dBm (typical) @ 300Mbps
Channels	1~ 11 (FCC), 1~13 (ETSI)

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

View Emulator

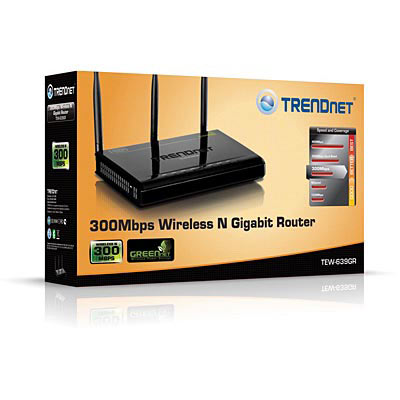

Package Contents

TEW-639GR
Multi-Language Quick Installation Guide
CD-ROM (User’s Guide)
Network cable (1.5 m / 4.9 ft)
Power adapter (12V DC, 0.5A)
