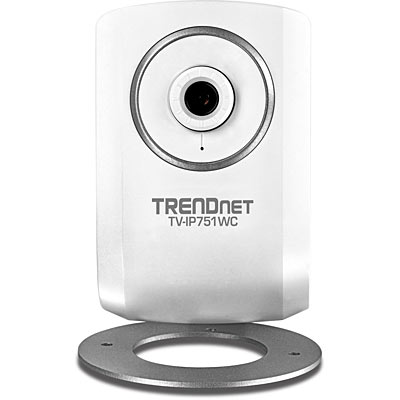

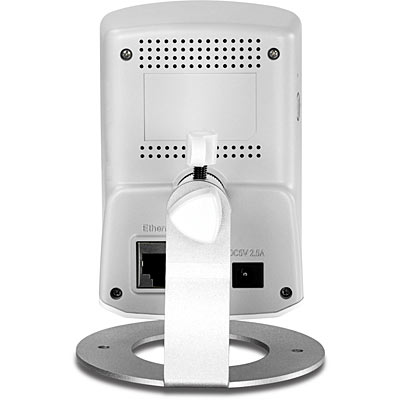

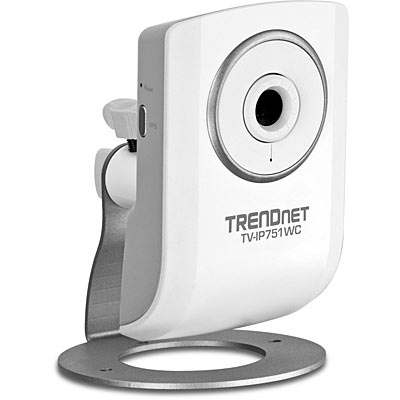

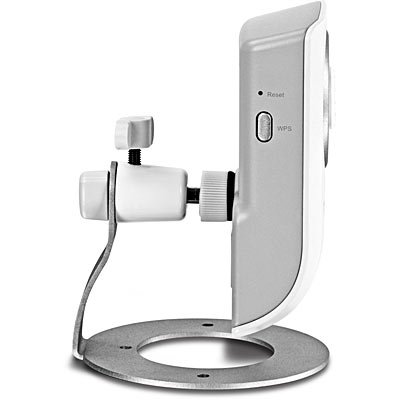

Wireless Cloud Camera
TV-IP751WC (Version v1.0R)
  • Easy remote camera viewing with free TRENDnet Cloud service
  • High speed wireless n connection
  • Program motion detection recording, email alerts and more
  • One-way audio
  • Wall / ceiling mounting kit
  • Free mobile App

Watch product spotlight video:

TRENDnet’s Wireless Cloud Camera, model TV-IP751WC, takes the work out of viewing video over the internet. Previously to view video remotely, users needed to perform many complicated and time consuming steps: such as signing up for a third party dynamic IP service and reconfiguring their router. The TRENDnet Cloud service removes all of these complicated steps. Users simply open a web browser and log into the TRENDnet Cloud with their unique password to view and manage this camera. A free App for mobile devices brings live video to smart phones and tablets.

About the TV-IP751WC

Wireless n technology connects the camera to a wireless network and provides unsurpassed wireless coverage and improved streaming video quality. Add this camera to your wireless network at the touch of a button with Wi-Fi Protected Setup (WPS). The TV-IP751WC offers 640 x 480 (VGA) video at up to 20 frames per second (fps), one-way audio, motion detection recording, scheduled recordings, email alerts, and four times digital zoom. A wall/ceiling mounting kit is included and the camera’s off white housing blends into most environments.

About TRENDnetVIEW Pro Management Software

Users can either control each TRENDnet camera individually or can use the free included enterprise class TRENDnetVIEW Pro software to manage up to 32 cameras. TRENDnetVIEW Pro is compatible with Windows and Microsoft Server operating systems and supports all current TRENDnet cameras.

TRENDnetVIEW Pro provides users with extensive camera viewing options. Users can define a combination of weekly recording schedules and motion detection recording; program motion detection areas of any shape; set date, time, and text overlays.

Zero loss architecture provides the ability to record a single video stream to multiple locations simultaneously. Manage recorded files by time or by storage space. A navigation timeline of stored video provides a quick visual reference of recorded content.


TRENDnet Cloud Service

  • Free cloud service
  • Automatically connects to a TRENDnet Cloud camera over the internet
    • Cloud service eliminates the previous requirement to sign up for a Dynamic DNS service and reconfigure your router and IP camera
    • Cloud camera requires internet connection
  • Each camera accessed individually with unique web address (URL)
  • Password protected cloud service
  • Access to live video
  • Full camera management with adequate network connection
  • A single camera can be viewed remotely by multiple users concurrently
  • The number of concurrent users is limited by ISP network bandwidth
  • Remotely view multiple cameras on the same local area network (LAN)
  • The number of viewable cameras is limited by ISP network bandwidth
  • Cloud App for mobile devices (iOS® and Android® support)

Camera Hardware Features

  • Wi-Fi compliant with IEEE 802.11n standard
  • Backwards compatible with IEEE 802.11g and 802.11b devices
  • One touch Wi-Fi Protected Setup (WPS) connection button
  • 1 x 10/100 Mbps Ethernet port (for optional wired installation)
  • Power and activity LED indicators (can be disabled)
  • 1-way audio
  • Reset button
  • 4x digital zoom
  • Dynamic DNS support
  • Supports up to 640 x 480 pixel MJPEG resolution at up to 20 frames per second
  • Compression rate: Very Low, Low, Medium (default), High, and Very High
  • Image controls: brightness, contrast, saturation, light frequency, flip image vertically, mirror image horizontally
  • Define a recording schedule or motion detection recording
  • Create motion detection fields over the viewing area
  • Supports TCP/IP networking, email, HTTP, and other internet protocols
  • System controls:
    • Define up to 64 user login accounts
    • Set the date and time or synchronize with an NTP server
  • Supports wireless encryption up to WPA2-PSK
  • Quick Universal Plug and Play (UPnP) installation
  • Mounting base and mounting hardware included
  • 3-year limited warranty

TRENDnetView Pro Camera Software Features

  • Manage up to 32 cameras*
  • Compatible with Windows and Microsoft Server 2008
  • Multiple language support
  • Camera Viewing
    • Preset viewing modes
    • Program custom viewing modes
    • Full screen view
    • Drag and drop live feeds to a new location
    • Program camera cycle viewing sequence
    • Motion detection brings video forward
    • Side, top, and bottom tool bars can be hidden
    • Web based access from smart phones and tablets
  • Recording options
    • Program weekly recording schedules
    • Motion detection recording
      • Define motion detection areas of any shape
      • Define motion detection sensitivity
    • Event trigger recording
    • Date and time overlay
    • Save a single video stream to multiple locations simultaneously
    • Define recording quotas by recording time or space allocation
    • Disk clean feature condenses and optimizes old files
    • Real time recording stats to help manage files
  • Search and Playback
    • Navigation timeline provides a quick visual reference to the recorded content
    • Search continuous recordings by motion
    • Search recordings by motion within a defined field (a portion of the viewing area)
    • Time lapse playback search
  • Map cameras on an image such as a floor plan
  • Map cameras on Google Maps™

*Monitoring multiple cameras may require a high performance CPU

  • Camera
  • General
  • Sensor: 1/5” CMOS Sensor
  • Board Lens
  • Focal Length: 4 mm
  • F/No: 1.5
  • Minimum illumination: 1 lux
  • Focus Depth: 20 cm ~ infinity
  • View:
  • Horizontal: 38°
  • Vertical: 28.7°
  • Diagonal: 46.5°
  • Digital Zoom: 4x
  • Audio
  • Built-in omni-directional microphone
  • Sensitivity: -38 dB +/- 3 dB (5 meters max.)
  • Frequency: 100~2 Hz
  • S/N: >60 dB
  • Format: PCM
  • Hardware
  • Network
  • IEEE 802.3u 10/100 Mbps Fast Ethernet
  • LED
  • Power, Link/Act
  • WPS Button
  • Enable WPS connection
  • Reset Button
  • Reset to factory default
  • Power Consumption
  • Max 5 watts
  • Power
  • Input: 100~240 V, 50/60 Hz, 0.2A
  • Output: 5V, 1.2A external power adapter
  • Dimension
  • 75 x 115 x 30 mm (2.95 x 4.5 x 1.2 in.)
  • Weight
  • 110 g (3.8 oz)
  • Temperature
  • Operating: 0°C ~ 40°C (32°F ~ 104°F)
  • Storage: -15°C ~ 70°C (5°F ~ 158°F)
  • Humidity
  • Max 90% (non-condensing)
  • Certifications
  • CE, FCC
  • Requirement
  • Management Interface
  • Internet Explorer 7.0 or higher
  • Firefox 3.5 or higher
  • Safari 4.0 or higher
  • Google Chrome 19.0 or higher
  • To Run software
  • Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)
  • Windows Server 2003, 2008
  • TRENDnetVIEW Pro Software
  • Channel: supports up to 32 cameras
  • Record/Playback/Motion Detection/Audio
  • Network Protocols
  • IPv4, ARP, TCP, UDP, ICMP
  • DHCP Client, NTP Client, DNS Client, DDNS Client, SMTP Client, FTP Client
  • HTTP
  • PPPoE
  • UPnP
  • Wireless
  • Standard
  • IEEE 802.11b, 802.11g and 802.11n
  • Frequency
  • 2.4 ~ 2.497 GHz ISM band
  • Modulation
  • DQPSK, DBPSK, DSSS and CCK
  • Antenna
  • Built-in 2 dBi antenna
  • Data Rate
  • 802.11b: up to 11 Mbps
  • 802.11g: up to 54 Mbps
  • 802.11n: up to 150 Mbps
  • Security
  • 64/128-bit WEP, WPA/WPA2-PSK
  • Output Power
  • 802.11b: 17 dBm (typical)
  • 802.11g: 14.5 dBm (typical)
  • 802.11n: 14.5 dBm (typical)
  • Receiving Sensitivity
  • 802.11b: -89 dBm at 11 Mbps
  • 802.11g: -74 dBm at 54 Mbps
  • 802.11n: -71 dBm at 150 Mbps
  • Channels
  • 1~11 (FCC), 1~13 (ETSI)
  • Management
  • Accounts
  • Up to 64 user accounts
  • Remote Login
  • Remote management supported
  • Backup/Restore
  • Save/retrieve configuration files
  • Cloud Link
  • Display status and URL, enable/disable, refresh
  • Settings
  • Image
  • Brightness, contrast, saturation, light frequency, flip, mirror (horizontal/vertical)
  • Video Setting
  • Encoding: MJPEG
  • Resolution and frame rate: VGA @ 20 fps, QVGA @ 30 fps, QQVGA @ 30 fps
  • JPEG quality: Very Low, Low, Medium (default), High, Very High
  • Recording
  • Event based (motion detection) and scheduled
  • Snapshot
  • Trigger event: motion detection
  • Action: send alert email and/or upload to FTP
  • Real time snapshot
  • Port Settings
  • HTTP port: 80 (default)
  • Time
  • Synchronize with NTP server or PC, or set time/date manually


Package Contents

  • TV-IP751WC
  • CD-ROM (Utility, software, & User’s Guide)
  • Multi-Language Quick Installation Guide
  • Network cable (1.5 m / 5 ft.)
  • Power adapter (5V DC, 1.2A)
  • Camera mounting kit
