Product Families » Internet Cameras » TV-H400
Outdoor Camera Dome Enclosure
TV-H400 (Version V3.0R)
  • 360 degree tinted viewing dome for TRENDnet pan and tilt cameras
  • IP66 certified metal construction protects against extreme weather conditions*
  • Simple to install and mounts on horizontal and vertical surfaces
  • Built-in heater and fan for extreme weather


 DISCONTINUED PRODUCT
The TV-H400 (Version V3.0R) has been discontinued.  For a list of discontinued products, click here.

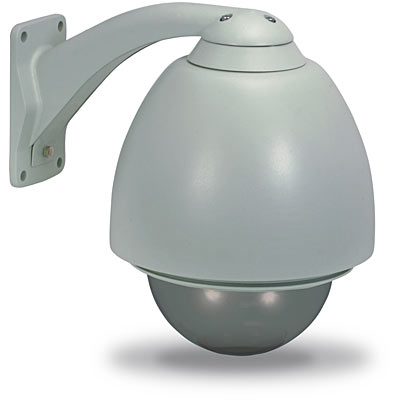

TV-H400
Click on image to enlarge

The Outdoor Camera Dome Enclosure (TV-H400) protects TRENDnet pan and tilt Internet security cameras from extreme weather conditions with an IP66 weather rating.

This rugged outdoor enclosure is designed for TRENDnet pan and tilt series Internet security cameras-providing comprehensive surveillance to protect what you value most.

Cable grommets and built-in heater and fan, provide further protection from water, dust and variable climate conditions. Mount the camera with ease, on horizontal or vertical surfaces.


* Straight mounting arm for indoor use only

RoHS Compliant

  • IP66 certified enclosure rating ensures the highest level of protection from inclement weather
  • Protects Pan/Tilt/Zoom (PTZ) cameras from a variety of weather conditions
  • Built-in fan and heater helps moderate air temperatures within the enclosure
  • Automatic temperature control
    • Heater turns “on” when the temperature dips below 5°C (41°F) and turns “off” when the temperature exceeds 10°C (50°F)
    • Fan turns “on” when temperature exceeds 45°C (113°F) and turns ”off” when the temperature dips below 30°C (86°F)
  • Heavy duty gooseneck and straight tube pendent brackets for easy wall or ceiling mounting
  • Cables are protected inside the mounting bracket
  • 2-year limited warranty
Hardware
Range of Application Indoor/ outdoor installations
Protection Level IP66 weatherproof
Blower Fan and Heater
  • Heater On: 5°C (41°F) Off: 10°C (50°F)
  • Blower fan On: 45°C (113°F) Off: 30°C (86°F)
Housing Material Aluminum
Power Supply 110/220AC 24V input, 12VDC output
Dimensions 215 x 275 x 320mm (8.46 x 10.82 x 12.6 in.)
Inside Dimension 125 x 170 x 130mm (4.9 x 6.7 x 5.1in.)
Weight
  • Housing: 4.9kg(10.8lb)
  • Bracket: 3.0kg (6.6lb)
Temperature -25°C ~ 50°C (-13°F ~122°F)
Humidity 0%~90%, non-condensing
Compatible models TV-IP400, TV-IP410, TV-IP600, TV-IP612P

TV-H400

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.
Additional Info
Email a Friend
Datasheet
Quick Installation Guide
Downloads
Register Your Product
Package Contents
  • TV-H400
  • Quick Installation Guide
  • Mounting bracket and hardware kit
