3G Mobile Wireless Router
TEW-655BR3G (Version v1.0R)
  • Share the Internet from anywhere you have a 3G mobile connection
  • Compatible with USB modems from every major mobile provider
  • Built in rechargeable 2.5 hour lithium Ion battery under full loading (4 hours in idle)
  • One-touch connection with Wi-Fi Protected Setup (WPS)

Watch product spotlight video:

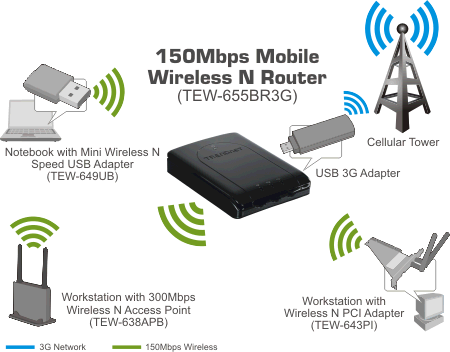

The 3G Mobile Wireless Router (model TEW-655BR3G) connects to the Internet either using a traditional hard wired connection or by cutting the cables and connecting with a compatible wireless mobile USB dongle from a 3G* Internet service provider such as AT&T™, Sprint™, T-Mobile™, or Verizon™**. Designed for true portability the router has a rechargeable and replaceable 2.5 hour lithium ion battery. Compatible with USB dongles from every mobile provider, this compact router connects to the Internet anywhere there is a 3G* mobile connection.

No installation is required, simply plug the 3G* USB adapter into the router to share a single Internet connection. The latest wireless encryption protects your valuable data. Wi-Fi Protected Setup (WPS) integrates other WPS supported clients at the touch of a button. An on/off switch on the back of the devices saves battery life. For long trips, power the router with TRENDnet's Car Adapter, model TA-CC.


  • 1 x 10/100Mbps LAN/WAN (optional) port
  • High-speed data rates up to 150Mbps using an IEEE 802.11n connection***
  • Works with UMTS/HSPA, WCDMA (HSDPA), CDMA2000 (EV-DO), and TD-SCDMA mobile networks
  • 1x USB 2.0 port connects respective third party wireless mobile 3G dongles, from ISPs such as AT&T™, Sprint™, T-Mobile™, or Verizon™**
  • See the compatibility list on the TEW-655BR3G product Web page for specific USB modem compatibility
  • Following initial setup, compatible USB modems will be auto-detected for rapid Internet access
  • Rechargeable and replaceable 2.5 hour lithium Ion battery under full loading and 4 hours in idle mode (Compliant with NP120 type batteries)
  • Built-in antennas provide high-speed performance and expansive wireless coverage
  • Advanced Firewall protection with Network Address Translation (NAT) and Stateful Packet Inspection (SPI)
  • Access restriction with Internet Access Control by URL, Domain, packet type, and MAC address
  • Built in pre-configured virtual servers and Application Level Gateway services for special Internet applications
  • Universal Plug and Play (UPnP) for auto discovery and support for device configuration of Internet applications
  • Easy setup via Web browser using the latest versions of Internet Explorer, FireFox, Netscape, Safari, and Chrome
  • One touch wireless security setup using the Wi-Fi Protected Setup (WPS) button
  • Travel sized compact design, with optional Car Adapter (model TA-CC sold separately)
  • Complete wireless security with WPA/WPA2-PSK support
  • Dyanamic DNS service support
  • Quality of Service (QoS) prioritization controls
  • SNMP V2c support
  • Routing Information Protocol (RIP) table support
  • Easy setup installation wizard with built-in WAN auto detection
  • 3- year limited warranty

*List of compatible 3G USB modems
**Must have an active Internet plan with the respective third party mobile provider
***Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials, and other conditions.

  • Hardware
  • Standards
  • Wired: IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX)
  • Wireless: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n based on IEEE 802.11n (draft 2.0) technology
  • USB: USB 2.0, USB 1.1
  • USB Port
  • 1 x USB 2.0 port for 3G* USB adapter (Internet)
  • Ethernet Port
  • 1 x 10/100Mbps Auto-MDIX port (LAN/Internet WAN)
  • WAN Connection Type
  • Ethernet: Dynamic IP, Static IP, PPPoE, L2TP, PPtP USB: 3G, 3.75G
  • Compatible Mobile Networks
  • UMTS/HSPA, WCDMA (HSDPA), CDMA2000 (EV-DO), and TD-SCDMA
  • Compatible Carriers in USA
  • AT&T*, Sprint*, Verizon*, T-Mobile *
  • Compatible USB Modems
  • *List of compatible 3G USB modems
  • Router/ Firewall
  • NAT, NAPT, and SPI
  • Static / Dynamic Route (RIP v1/v2)
  • UPnP, DMZ, Static/Dynamic Route support
  • DoS (blocking ping, port scan, sync flood)
  • MAC, port range, service, domain and URL filtering (deny or allow) and ICMP blocking
  • Power Switch
  • On/off
  • WPS Button
  • Wi-Fi Protected Setup (WPS) connects to WPS compliant devices
  • Battery
  • 3.7V, 1700mAh Li-ION battery (Compliant with NP120 type batteries)
  • LED Indicator
  • Power, Wireless/WPS, USB (3G modem), Ethernet (WAN/LAN)
  • Power Adapter
  • 5V, 2A DC
  • Power Consumption
  • System operation: 350mA (max)
  • Battery charging: 900mA (max)
  • Dimension (L x W x H)
  • 107 x 76 x 21 mm (4.2 x 2.9 x 0.8 in.)
  • Weight
  • 97.38g
  • Temperature
  • Operation: 0°~ 45°C (32°F~ 113°F)
  • Storage: -10°~ 70°C (14°F~158 °F)
  • Humidity
  • Max 95% (non-condensing)
  • Certifications
  • CE, FCC
  • Wireless
  • Frequency
  • 2.400 ~ 2.484GHz
  • Modulation
  • OFDM, DSSS, BPSK, QPSK, CCK
  • Data Rate
  • 802.11b: up to 11Mbps
  • 802.11g: up to 54Mbps
  • 802.11n: up to 150Mbps
  • Security
  • 64/128-bit WEP, WPA-PSK(TKIP)/WPA2-PSK(AES)
  • Output Power
  • 802.11b: 13dBm @ 11Mbps
  • 802.11g: 11dBm @54Mbps
  • 802.11n: 10dBm @ 150Mbps
  • Receiving Sensitivity
  • 802.11b: -85dBm @ 11Mbps
  • 802.11g: -70dBm @ 54Mbps
  • 802.11n: -68dBm @ 150Mbos
  • Channels
  • 1~11 (FCC), 1~13 (ETSI)


Package Contents

  • TEW-655BR3G
  • Multi-Language Quick Installation Guide
  • CD-ROM (User’s Guide)
  • Cat. 5 Ethernet cable (1 m / 3.2 ft.)
  • Power adapter (5V, 2A)
  • Rechargeable Battery (3.7V, 1700mAh)
