Product Families » Internet Cameras » TV-H500

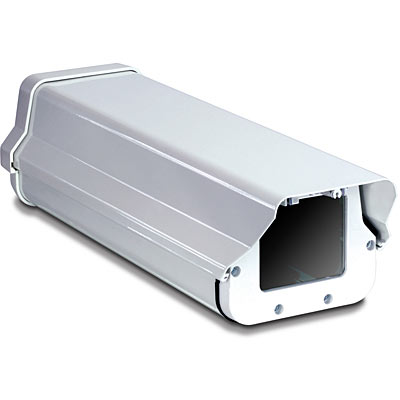

Outdoor Camera Enclosure
TV-H500 (Version v1.0R)
  • IP66 certified aluminum construction protects against severe weather
  • Lockable access latch protects from camera theft
  • Adjustable enclosure
  • Easy-install camera sliding-track mount system


TV-H500
Click on image to enlarge

The Outdoor Camera Enclosure (model TV-H500) protects TRENDnet Internet security cameras from extreme temperature conditions with an IP66 weather rating.

This durable aluminum enclosure is designed for use with compatible TRENDnet Internet security cameras.

Mount the enclosure on most surfaces with the included mounting kit. The enclosure’s final fixed position can be adjusted 360 degrees left-to-right, 40 degrees below horizontal and 15 degree above horizontal. A rugged aluminum visor minimizes reflective solar glare, a hinged swivel-top provides full access to the inside of the enclosure, an access latch-design capable of accepting a padlock (sold separately) protects against camera theft and an easy-install camera mount system reduces IP camera installation time.


RoHS Compliant

  • Robust construction design provides a cost-effective solution for protecting your TRENDnet Internet camera from the rigors of outdoor use
  • Adjustable mounting kit can secure the enclosure to a vertical or horizontal surface
  • Cables are protected inside the mounting bracket
  • Aluminum construction with IP-66 weather rating
  • 2-year limited warranty
Hardware
Supported Device TV-IP100-N, TV-IP100W-N, TV-IP201, TV-IP201P, TV-IP201W, TV-IP301, TV-IP301W, TV-IP501P, TV-IP501W, TV-IP512P, TV-IP512WN, TV-IP522P
Protection Level IP66 weatherproof
Housing Material Aluminum body with Plastic front cover plate
Glass Window Size 76 x 92mm
Dimensions 390 x 142x 115mm (15.35 x 5.59 x 4.53 in.)
Weight Housing: 1.2kg(2.65lb)
Bracket: 0.38kg (0.84lb)
Adjustment Tilt Angle - 55°  Swivel Angle - 360°

TV-H500

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.
Additional Info
Email a Friend
Datasheet
Quick Installation Guide
Downloads
Register Your Product
Package Contents
  • TV-H500
  • Quick Installation Guide
  • Mounting bracket and hardware kit
