Product Families » Internet Cameras » TV-H110
Outdoor Camera Enclosure with Fan and Heater
TV-H110 (Version V1.0R)
  • Built in automated heater and fan protect cameras from extreme temperature
  • IP66 certified aluminum construction protects against severe weather
  • Simple to install and mounts on most surfaces with an included mounting kit
  • Set the enclosure’s final fixed position by adjusting the enclosure to capture the desired viewing field


 DISCONTINUED PRODUCT
The TV-H110 (Version V1.0R) has been discontinued.  For a list of discontinued products, click here.

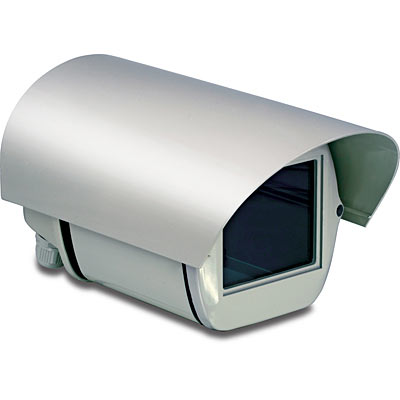

TV-H110
Click on image to enlarge

The Outdoor Camera Enclosure with Heater and Fan protects TRENDnet’s Internet security cameras from extreme temperatures with a built in heater and fan and from severe weather with an IP66 enclosure rating.

The Outdoor Camera Enclosure is designed for use with compatible TRENDnet Internet security cameras. Use this enclosure to extend your surveillance needs and protect what you value most.

Mount the camera on most surfaces with the included mounting kit. Set the enclosure’s final fixed position by adjusting the enclosure to capture the desired viewing field. A rugged aluminum visor design minimizes reflective solar glare and protects the camera enclosure in extreme conditions.


RoHS Compliant

  • IP66 certified enclosure rating ensures the highest level of protection from inclement weather
  • Built-in heater and fan helps moderate air temperatures within the enclosure
  • Robust construction design provides a cost-effective solution for protecting your TRENDnet Internet camera from the rigors of outdoor use
  • Automatic temperature control
    • Heater turns “on” when the temperature dips below 15°C (59°F) and turns “off” when the temperature exceeds 25°C (77°F)
    • Fan turns “on” when temperature exceeds 35°C (95°F) and turns ”off” when the temperature dips below 25°C (77°F)
  • Adjustable mounting kit can secure the enclosure to a vertical or horizontal surface
  • Cables are protected inside the mounting bracket
  • 2-year limited warranty
Hardware
Supported Device TV-IP110, TV-IP110W, TV-IP212, TV-IP212W, TV-IP312, TV-IP312W, TV-IP110WN, TV-IP121WN, TV-IP312WN
Protection Level IP66 weatherproof
Blower Fan and Heater Heater On: below 15° C (59° F) Off: above 25° C (77 °F)
Blower fan On: above 35 °C (95 °F) Off: below 25 °C (77 °F)
Housing Material Aluminum
Power Supply 12VDC, 1.5A external power adapter
Dimensions 270 x 147x 140mm (10.63 x 5.79 x 5.51 in.)
Weight Housing: 1.34kg(2.95lb)
Bracket: 0.32kg (0.7lb)
Max. Camera Dimension 70 x 57 x 100mm (2.76 x 2.24x 3.94 in.)
Temperature Operating: -20°C ~ 45°C (-4°F ~113°F)
Humidity 0%~90%, non-condensing

TV-H110

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.
Additional Info
Email a Friend
Datasheet
Quick Installation Guide
Downloads
Register Your Product
Package Contents
  • TV-H110
  • Quick Installation Guide
  • Mounting bracket and hardware kit
  • Power adapter 12VDC, 1.5A
