Product Families » Wireless Networking » N150 Wireless » TEW-646UBH
High Power N150 Wireless USB Adapter
TEW-646UBH (Version v1.0R)
  • High power wireless n adapter
  • Upgrade your laptop or desktop to high speed wireless n
  • One-touch Wi-Fi Protected Setup (WPS) network connection
  • Windows and Mac ready

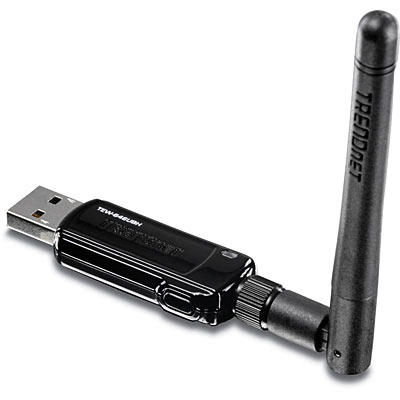

TEW-646UBH
Click on image to enlarge

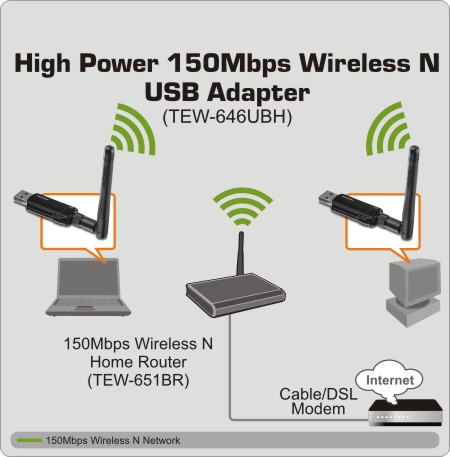

The High Power N150 Wireless USB Adapter (model TEW-646UBH) connects a laptop or desktop computer to a high speed wireless n network.

Setup is a breeze with one-touch Wi-Fi Protected Setup (WPS) technology. Advanced wireless encryption protects your valuable data. Wi-Fi Multimedia (WMM) Quality of Service (QoS) prioritizes important video, audio, and gaming traffic. Stream video, download files, play games, and talk online with this high power adapter.


*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.


RoHS Compliant

  • 1 x USB 2.0 connector
  • 1 x 2dBi detachable antenna (Reverse SMA)
  • 500mW wireless transmission power
  • USB bus powered adapter
  • Wi-Fi compliant with IEEE 802.11n standard
  • One-touch wireless connection with external Wi-Fi Protected Setup (WPS) button
  • Backwards compatible with IEEE 802.11g and IEEE 802.11b devices
  • Supports Ad-Hoc (Client-Client) and Infrastructure (AP-Client) Mode
  • Maximum reliability, throughput, and connectivity with automatic data rate switching
  • Supports 64/128-bit WEP, WPA/WPA2-RADIUS and WPA /WPA2-PSK
  • Wi-Fi Multimedia (WMM) Quality of Service (QoS) data prioritization
  • Universal Plug and Play (UPnP) supported
  • Easy user setup and intuitive diagnostic utility
  • Coverage of up to 100 meters indoor (330 feet) and 200 meters outdoor (660 feet) *
  • 3-year limited warranty

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.

Hardware
Interface USB 2.0
Standards IEEE 802.11b, IEEE 802.11g, based on IEEE 802.11n technology
LED Indicator Power, Link
WPS Button Enables WPS connection
Power Consumption 2.5 W
Antenna Connector SMA
Supported OS Windows: 7 (32/64-bit), Vista (32/64-bit), XP(32/64-bit)
Mac: OS 10.4-10.6
Dimensions (LxWxH) 60 x 16 x 8 mm (2.3 x 0.6 x 0.3 in.)
Weight 5.7 g (0.2 oz)
Temperature
  • Operating: 0° ~ 55° C (32° ~ 131° F)
  • Storage: -20° ~ 70° C (-4 ~ 158° F)
Humidity Max. 90% (non-condensing)
Certifications FCC
Wireless
Modulation OFDM, DSSS
Antenna 1 x 2dBi omni-directional detachable antenna (Reverse SMA)
Frequency 2.4 ~ 2.497 GHz
Quality of Service 802.11e, WMM
Data Rate
(auto fallback)
  • 802.11b: 11Mbps
  • 802.11g: 54Mbps
  • 802.11n: 150Mbps
Output Power
  • 802.11b: 27dBm
  • 802.11g: 24dBm
  • 802.11n: 22dBm
Receiving Sensitivity
  • 802.11b: -86dBm at 11mpbs
  • 802.11g: -72dBm at 54Mbps
  • 802.11n: -65dBm at 150Mbps
Encryption 64/128-bit WEP, WPA/WPA2-RADIUS, WPA /WPA2-PSK
Channels 1~11 (FCC version only)

TEW-646UBH

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info
Email a Friend
Datasheet
Quick Installation Guide
Downloads
View Knowledgebase
Register Your Product
Package Contents
  • TEW-646UBH
  • CD-ROM (Utility & User's Guide)
  • Multi-Language Quick Installation Guide
