2-Port DVI USB KVM Switch Kit with Audio
TK-214i (Version v1.0R)

Manage two PCs and/or Macs with one set of console controls

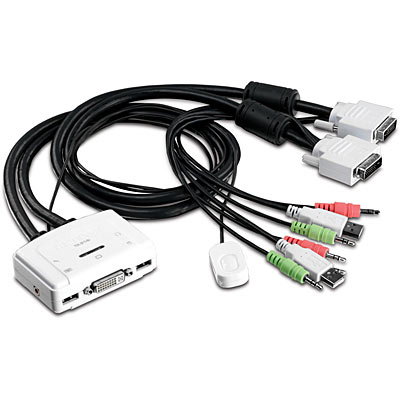

2-port KVM switch with DVI, USB, and audio connections to computers and console devices
Position the Toggle switch in an ergonomic location on you work station
All required cabling included

Click on image to enlarge

The 2-Port DVI USB KVM Switch Kit with Audio, model TK-214i, allows you to control 2 PC and/or Mac computers with one set of console controls. Manage laptops or desktops that have DVI, USB, and audio ports at the touch of a button with one set of USB keyboard, USB mouse, DVI monitor, microphone, and speakers.

No driver installation required, simply plug in the devices to control 2 computers. A convenient toggle switch with a 1.5 m (5 ft.) extension cable can be placed in the most ergonomic location on your workstation.

View crystal clear Digital Video Interface (DVI) resolution at up to 1920 x 1200 pixels. Built in 0.9 m (3 ft.) combination cables include all the necessary USB, DVI, and audio connectors for each respective computer. This KVM switch does not need to be plugged into an outlet—it is powered by the connected computers. Download a Windows and Mac compatible utility to define Hot Keys, manage multiple audio ports, and create Auto Scan intervals.

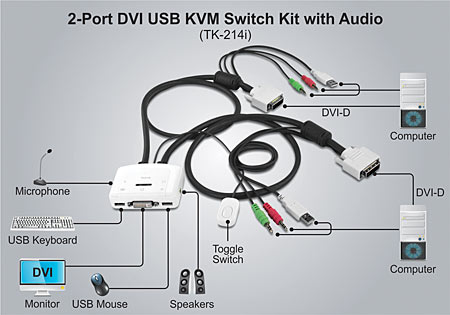

Use one keyboard, monitor, and mouse to control two computers
Audio support for speakers and microphone
Console-side hardware

1 x DVI port
2 x USB 2.0 Type A port
1 x 3.5mm audio port
1 x 3.5mm microphone port
LED display for easy computer monitoring
Push button switch with a 1.45 m (4.8 ft.) extension cable

Computer-side hardware

2 sets of 80 cm (2.6 ft.) built-in combination cables with DVI, USB, audio, and microphone ports

Works with most standard USB mouse and keyboard designs
Support video quality of up to 1920 x 1200 resolution
Supports Windows, Linux, and Mac operating systems*
Hot-Plug feature: add computer or remove the connected computer for maintenance without powering down the KVM Switch
Keyboard status restored when switching between computers.
Install the included KVM switcher software in order to program Hot-Keys and Auto-Scan intervals
Plug and Play with no software download required
No power required, this device is powered by the computer’s USB port
2-year limited warranty

* KVM Switcher Software only support Mac 10.4 or higher

Hardware
Controls	2 Computers
Cable	2 Sets of USB, DVI, audio, and microphone combination cables 80 cm (2.6 ft.)
Computer Connectors	2 x USB Type A (male) 2 x DVI-I (male) 2 x 3.5mm audio plug 2 x 3.5mm microphone plug
Console Connectors	1 x DVI port (female) 2 x USB type A port (female) 1 x 3.5mm audio port 1 x 3.5mm mic. port
Port Selection	Push button switch: Windows, Mac and Linux Hot Keys Command: Windows, Linux KVM Switcher Software: Windows and Mac 10.4 or higher
Video Resolution	DVI-I 1920 x 1200
Power Type	USB Bus Powered
LED	Computer 1 or Computer 2 Status Indicator
Dimensions	89 x 64 x 25 mm (3.5 x 2.5 x 1.0 in.)
Weight	431 g (15.2 oz.)
Temperature	Operating: 0°C ~ 40°C (32°F ~104°F) Storage: -20°C ~ 60°C (-4°F ~140°F)
Humidity	Max. 90% (non-condensing)
Certifications	CE, FCC

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

Package Contents

TK-214i
Multi-Language Quick Installation Guide
CD-ROM (Utility and User’s Guide)
