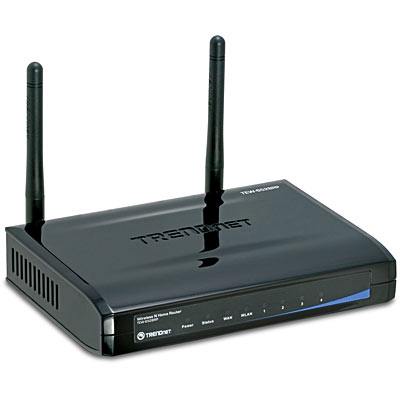

N300 Wireless Home Router
TEW-652BRP (Version v2.0R)

12x the speed and 4x the coverage of wireless g
Stream video, download files, talk online and play games all at the same time
Advanced wireless encryption and a firewall provides robust security

DISCONTINUED PRODUCT

The TEW-652BRP (Version v2.0R) has been discontinued. It has been replaced by the TEW-652BRP (Version v3.0R). For a list of discontinued products, click here.

Click on image to enlarge

The N300 Wireless Home Router delivers the highest level of security with 12x the speed and 4x the range of wireless g products. Quickly install the router and use it with TRENDnet wireless n adapters to receive the full benefits of wireless n speed and coverage.

The latest in wireless encryption and a secure firewall provide the ultimate in wired and wireless security. Advanced Multiple Input Multiple Output (MIMO) antenna technology delivers expansive coverage and eliminates dead spots. A quick and intuitive installation process, one touch wireless connection using Wi-Fi Protected Setup and advanced management capabilities make this product well suited for your most demanding home networking needs.

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.

Wi-Fi compliant with IEEE 802.11n and IEEE 802.11b/g standards

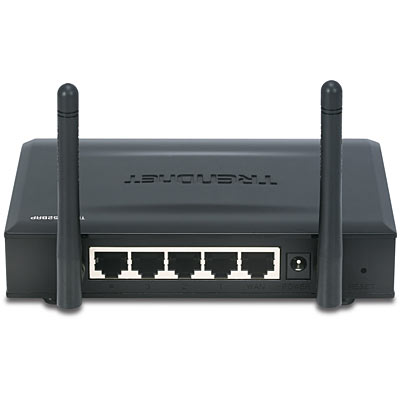

4 x 10/100Mbps Auto-MDIX LAN port and 1 x 10/100Mbps WAN port (Internet)
Supports Cable/DSL modems with Dynamic IP, Static IP, PPPoE, PPTP, L2TP & BigPond connection types
High-speed data rates up to 300Mbps using an IEEE 802.11n connection
2 fixed external antennas support high speed performance and great coverage with MIMO technology
Network Address Translation (NAT) firewall

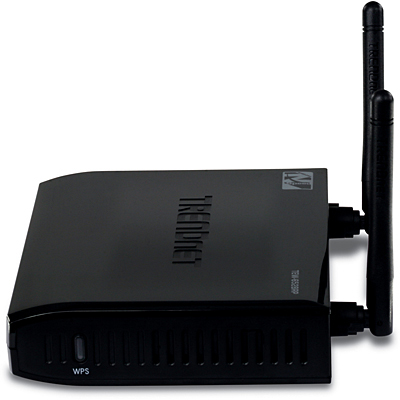

Wi-Fi Protected Setup (WPS) button for simple network connectivity
Universal Plug and Play (UPnP) and Application Level Gateway support for Internet applications such as email, FTP, gaming, remote desktop, Net Meeting, telnet and more
Provides additional security with Internet Access Control (MAC Address, Domain, and IP Filtering)
Easy remote management via Web browser
Wireless security support for WEP, WPA & WPA2
Indoor coverage up to 100 meters (330ft.)*
Outdoor coverage up to 300 meters (980ft.)*
Works with Windows, Linux and Mac operating systems
3- year limited warranty

Hardware
Standards	Wired: IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX) Wireless: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (draft 2.0), IEEE 802.11e QoS
WAN	1 x 10/100Mbps Auto-MDIX port (Internet)
LAN	4 x 10/100Mbps Auto-MDIX ports
WPS Button	Enables Wi-Fi Protected Setup (WPS) function
Connection Type	Dynamic IP, Static (Fixed) IP, PPPoE, PPTP, L2TP To be supported (Big Pond, Russia PPoE, PPTP, and L2TP)
UPnP	UPnP IGD 1.0 compliant
DMZ	DMZ host & Virtual Servers
DNS	Static or WAN assigned DNS servers; 3 verified services for DDNS
Internet Access Control	MAC Address Filter, Domain/URL Filter, Protocol/IP Filter
Logging	5 types of event logging; email report

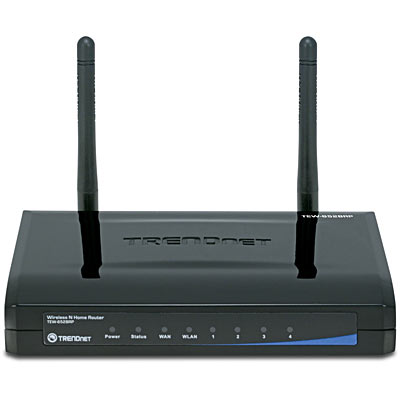

LED Indicator	Power, LAN1~LAN4, WAN, WLAN, Status
Power Adapter	7.5V DC, 1A external power adapter
Power Consumption	4.5watts (max)
Dimension (L x W x H)	150 x 130 x 30mm (5.9 x 5.1 x 1.2in)
Weight	245g (8.6oz)
Temperature	Operation: 0°~ 40°C (32°F~ 104°F) Storage: -10°~ 70°C (14°F~158 °F)
Humidity	Max. 90% (non-condensing)
Certifications	CE, FCC
Wireless
Frequency	2.412~2.484GHz band
Antenna	2 x 2dBi fixed dipole antennas
Media Access Protocol	CSMA/CA with ACK
Data Rate	802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps 802.11n: up to 300Mbps
Security	WEP(HEX/ASCII): 64/128-bit WPA(AES/TKIP): WPA/WPA2-Radius, WPA-PSK/WPA2-PSK
Output Power	802.11b: 17dBm (typical) 802.11g: 13dBm (typical) 802.11n: 13dBm (typical)
Receiving Sensitivity	802.11b: -85dBm (typical) @ 11Mpbs 802.11g: -68dBm (typical) @ 54Mbps 802.11n: -62dBm (typical) @ 300Mbps
Channels	1~ 11 (FCC), 1~13 (ETSI)

* Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on
interference, network traffic, building materials and other conditions.
** Internet Explorer 6.0 and above is recommended

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

View Knowledgebase

View Emulator

Package Contents

TEW-652BRP
Multi-Language Quick Installation Guide
CD-ROM (User’s Guide)
Power adapter (7.5V DC, 1A)
Cat. 5 Ethernet cable (1.5m / 5ft.)
