Product Families » Routers » TWG-BRF114

4-Port Gigabit Firewall Router
TWG-BRF114 (Version 1.0R)

Enjoy Gigabit networking speeds
Advanced firewall protection with NAT and SPI
Secure remote management
Intuitive Web browser management interface

Click on image to enlarge

The 4-Port Gigabit Firewall Router (TWG-BRF114) allows multiple users to share Internet access at gigabit speeds while providing a secure configurable firewall environment to protect from unwanted intruders. Setup the TWG-BRF114 in minutes with an intuitive installation wizard and manage your network from any Internet connection with a user friendly Web browser. This user friendly router allows anyone the ability to administer the user access to restrict Internet access based on client IP addresses, URL keywords, and service types. The TWG-BRF114 incorporates advanced NAT and SPI firewall technology to protect against popular denial of service attacks. Remotely access your firewall and enjoy Gigabit speeds knowing your network resources are protected.

4-port Gigabit Auto-Sensing switch automatically determines Ethernet speed
Set up the router in minutes with Universal Plug and Play (UPnP) support
Hosts up to 253 clients
Intuitive Web browser management
Supports high speed cable modem, xDSL modem (Dynamic/Static IP, PPPoE, PPTP) and fiber to the home (FTTH )
Works with Windows 95/98/ME/NT/2000/XP/Vista, Unix and Mac operating systems
Stateful Packet Inspection (SPI) firewall protects against Denial of Service attacks
Manage your network with Network Address Translation (NAT), Network Address Port Translation (NAPT) and NAT Traversal Support
Schedule email alerts and manage event logs
Manage Access Control from defined addresses, URLs and content filtering lists
Supports 100 sessions of Virtual Private Network (VPN) pass-through for PPTP, IPSec and L2TP
Protocol support for PPPoE, PPTP client for DSL connection, BigPond cable, SingTel RAS and Network Time Protocol (NTP)
Additional security authentication with Password Authentication Protocol (PAP and Challenge Handshake Authentication Protocol (CHAP) for PPPoE
Flash memory enables firmware upgrades and a save/restore router configuration
Supports DMZ, Multi-DMZ and 40 virtual servers (port forwarding)
Quality of Service (QoS) technology prioritizes bandwidth for select applications such as Voice of IP and streaming video.
Supports Static Routing, RIP 1 RIP 2 and Dynamic DNS service
5-year limited warranty


Hardware
Standards	IEEE 802.3, 802.3u and 802.3ab
Protocols	NAT, PPPoE, HTTP, DHCP, TCP/IP, UDP, PAP, CHAP, RIP1 and DDNS
Firewall	NAT, Stateful Packet Inspection, Attack Alert Email and Log and Denial of Service
Security	Access Control

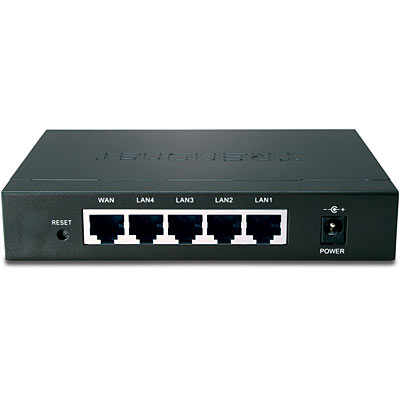

Local port	4 x RJ45 10/100/1000Mbps Gigabit Ethernet Auto-MDI/MIDX
Internet port	1 x Shielded RJ45 10/100/1000Mbps Gigabit Ethernet Auto-MDI/MIDX
Reset Button	Resets to Factory Default Settings
LEDs	Power, Status, Link/Act, 10 ,100 ,1000 LAN and WAN
Power	DC 12v 800mA External Power Adapter
Dimensions (LxWxH):	141 x 100 x 27 mm (5.5x 3.9 x 1.06 inches)
Weight	363g (12.8 oz.)
Temperature	Operating: 0° to 40° C(32° to 104° F) Storage: -10° to 70° C (14° to 158° F)
Humidity	Operating: 0 % ~ 80 % (non-condensing) Storage: 0% ~ 95% (non-condensing)
Certifications	CE

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

View Knowledgebase

View Emulator

Package Contents

TWG-BRF114
Quick install guide
CD-ROM (user´s guide)
External power adapter
