SecurView Wireless N Day/Night Internet Camera
TV-IP312WN (Version v1.0R)

Night vision of up to 5 m (16 ft.)
High speed wireless n connection
Program motion detection recording and email alerts
2-way audio

SecurView IP Camera Critical
Firmware Update Available

DISCONTINUED PRODUCT

The TV-IP312WN (Version v1.0R) has been discontinued. It has been replaced by the TV-IP572WI (Version v1.0R). For a list of discontinued products, click here.

Click on image to enlarge

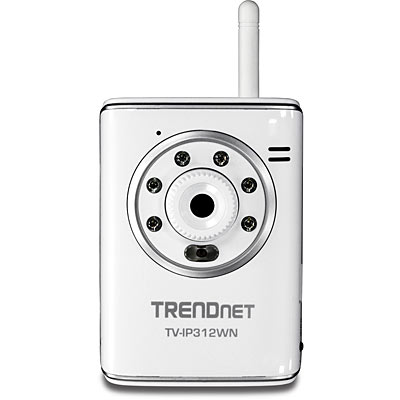

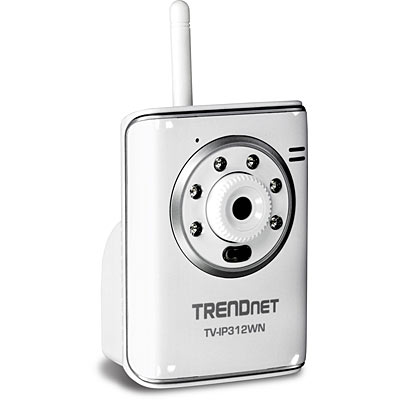

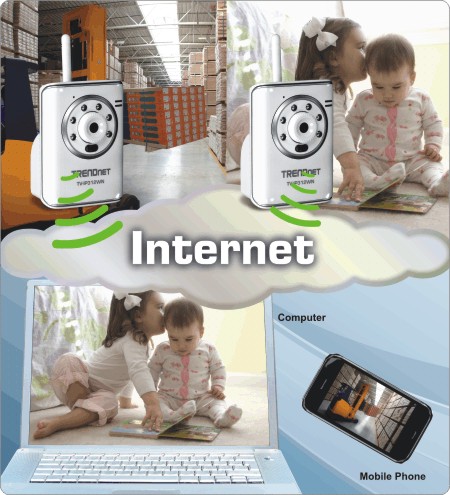

The SecurView Wireless N Day/Night Internet Camera, transmits high quality video and audio over the Internet. Wireless n technology provides unsurpassed wireless coverage and improved streaming video quality.

Add this camera to your wireless network at the touch of a button with Wi-Fi Protected Setup (WPS). Infrared bulbs provide night vision for distances of up to five meters (16 feet) in complete darkness. A built-in microphone and optional speakers accommodate 2-way audio communications. Manage up to 32 SecurView cameras with the included complimentary camera management software.

Advanced features include motion detection recording, email alerts, scheduled recording sessions, MPEG-4 / MJPEG image compression, and digital zoom. A wall/ceiling mounting kit is included and the off-white camera housing blends into most environments.

Wi-Fi compliant with IEEE 802.11b/g/n networks
3 x digital zoom
1 x 10/100Mbps Fast Ethernet port

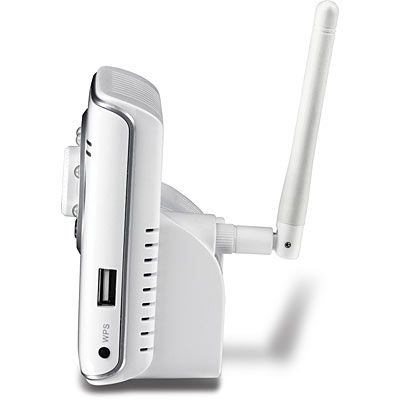

1 x Wi-Fi Protected Setup button
1 x USB port to store still images to a USB flash drive*
High quality MPEG-4 and MJPEG video recording with up to 30 frames per second
Resolution up to 640 x 480 pixels
Power and activity LED indicators (can be disabled)
Infrared night vision for up to 5 meters (16 feet)
Dynamic DNS support
Image control: brightness, contrast, saturation, and mirror (horizontally/vertical)
Supports TCP/IP networking, SMTP Email, HTTP, Samba, and other Internet protocols
Record streaming video to your computer and Network Storage Server
Motion detection triggered email alerts and image upload via FTP
Stream Internet camera video to a 3GPP compatible mobile device
Supports 64/128-bit WEP and WPA/WPA2-PSK wireless encryption
Hear and talk to people in your camera’s viewing area through your computer
Two adjustable motion detection windows with just-in-time snapshot
Quick Universal Plug and Play installation
Complimentary SecurView Pro software: manage up of up to 32 camera**
3-year limited warranty

* USB port supports up to 500mA powered device with FAT16/32 format
** Monitoring multiple cameras may require a high performance CPU

Camera
General	Sensor: 1/4" color CMOS sensor Resolution: 640 x 480 pixels Board Lens Focal Length: 4.5mm Aperture (F/No): F2.8 IR LED with light sensor control Minimum illumination: 0 Lux Diagonal viewing angle: 60 degree
Image & Video	Compression: MPEG-4/MJPEG dual streaming Exposure/white balance/gain control: automatic Resolution: up to 30fps for VGA (640x480), 30fps for QVGA (320x240), 30fps for QQVGA (160x120)
Audio	Audio in: internal omni-directional microphone Sensitivity: -48dB +/- 3dB Frequency response: 50 ~ 16000Hz Audio out: external output to active speaker (mono) Echo Cancellation: hardware voice processor Audio codec: PCM/AMR
Hardware

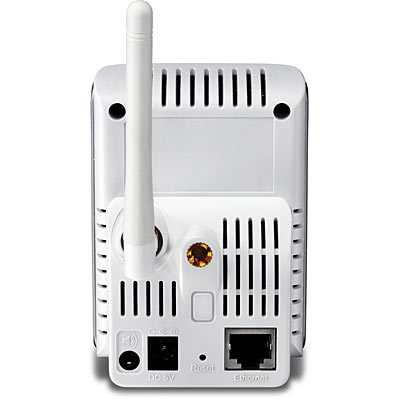

Network	IEEE 802.3u 10/100Mbps Fast Ethernet, Auto-MDIX
LED	Power, Link
IR wavelength	850nm
USB Port	Type A USB 1.1 host port
Reset Button	Restore to factory default
WPS Button	Push button for Wi-Fi Protected Setup
Power Consumption	8 watts max.
Power	5 V, 2.5 A external power adapter
Dimension	70 x 100 x 57 mm (2.67 x 3.94 x 2.95 in.)
Weight	155 g (5.4 oz)
Temperature	Operating: 0°C ~ 45°C (32°F ~ 113°F) Storage: -15°C ~ 60°C (5°F ~ 140°F)
Humidity	Max. 90% (non-condensing)
Certifications	CE, FCC
Requirement
Management Interface	Internet Explorer 6.0 or above
To Run SecurView Pro	Windows 7 (32/64 bit), Vista (32/64 bit), XP (32/64 bit)
SecurView Pro	Channel: supports up to 32 cameras Record/Playback/Motion Detection
Network Protocols	TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, Samba, PPPoE, UPnP, RTP, RTSP and RTCP
Wireless
Standard	Based on IEEE 802.11n technology IEEE 802.11g/b compliant
Frequency	2.4 ~ 2.4835GHz
Antenna	1 x 2dBi dipole antenna (Reverse-SMA connector)
Data Rate (auto fallback)	802.11n: up to 150Mbps 802.11g: up to 54Mbps 802.11b: up to 11Mbps
Security	64/128-bit WEP, WPA/WPA2-PSK
Output Power	802.11n: 15 + 1 dBm 802.11b: 15 + 1 dBm 802.11g: 18 + 1 dBm
Receiving Sensitivity	802.11n HT20: -67dBm 802.11n HT40: -64dBm 802.11g: -70dBm 802.11b: -87dBm
Channel	1~11 (FCC), 1~13 (ETSI)
Management
Remote	Remote management supported
Backup / Restore	Save/retrieve configuration files
Settings
Recording	Recording type: continuous, schedule or motion detection with software
Multi-Profile	3 profiles simultaneously
Port Settings	HTTP port: 80 (default)
Digital Zoom	3x
Dynamic DNS	Yes
Time	Synchronize with NTP server or set time/date manually
SMTP	SMTP mail supported up to 2 accounts with software
System Log	100 entries (max.)

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Critical Firmware update available

Email a Friend

Datasheet

Quick Installation Guide

Downloads

View Knowledgebase

View Emulator

Package Contents

TV-IP312WN
Multi-Language Quick Installation Guide
CD-ROM (Utility & User’s Guide)
Power adapter (5V DC, 2.5 A)
Network cable (1.8 m/5.9 ft.)
Mounting stand
