TRENDnet | Products | USB Devices

Product Families » USB / FireWire » TU2-H2PC

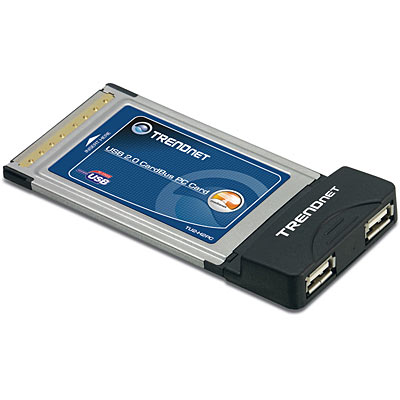

2-Port USB PC Card
TU2-H2PC (Version v1.1R)

Quickly add 2 USB ports to your laptop
Transfer data at high speeds of up to 480Mbps
Save desk space with this compact laptop PC card

Click on image to enlarge

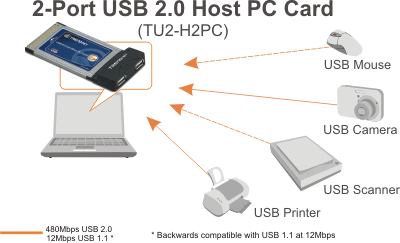

This 2-Port USB 2.0 Host PC Card gives your Laptop PC two USB 2.0 ports so you can easily connect your peripherals and enjoy the benefits of high-speed USB 2.0!

2 x USB 2.0 Type A Ports
32-bit CardBus PCMCIA Type II Slot Compatible
Compliant with USB 2.0 and USB 1.1 Specifications
Supports all USB speeds: Low-Speed (1.5Mbps), Full-Speed (12Mbps) and High-Speed (480Mbps)
OHCI 1.1 (Open Host Controller Interface) Compliant
EHCI .95 (Enhanced Host Controller Interface) Compliant
Switches to the peripheral’s Highest Supported Speed Automatically
Fully Forward and Backward Compatible with USB 1.1 Devices
Supports 6 layers with up to 127 USB Devices
Compatible with Windows 98SE/ME/2000/XP (32/64-bit) /Vista (32/64-bit), Mac OS 10.x or higher
Supports Plug & Play and Easy Installation
2-year limited warranty

Hardware
Interface	32-bit CardBus PCMCIA Type II
USB Controller	OHCI, EHCI
Standards	USB 2.0 & USB 1.1
Ports	2 x USB 2.0 Ports
OS Compliant	Windows 98SE/ME/2000/XP (32/64-bit) /Vista (32/64-bit), Mac OS 10.x or higher
Data Rate	High-Speed: 480Mbps Full-Speed: 12Mbps Low-Speed: 1.5Mbps
Power Consumption	500mA (max) per port
Dimensions (L x W x D)	114 x 54 x12mm (4.4 x 2.1 x 0.5 inches)
Weight	45g. (1.6oz.)
Operating Temperature	0 ~ 40 C (32 ~ 104 F)
Storage Temperature	-10 ~ 45 C (14 ~ 113 F)
Humidity	0 ~ 85% (Non-Condensing)
Certification	FCC, CE

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

Package Contents

TU2-H2PC
Multi-Language Quick Installation Guide
Driver CD-ROM
