N300 Wireless Gigabit Router w/ USB Port
TEW-634GRU (Version v1.0R)

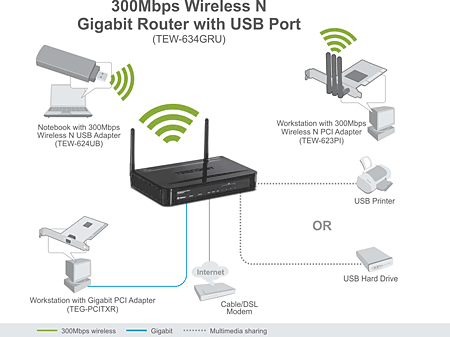

  • Share content by connecting USB flash drives, hard drives or printers to the router
  • 12 x the speed and 4 x the range of wireless g
  • Gigabit ports ensures the highest throughput speeds
  • Advanced wireless encryption and a firewall provides robust security


 DISCONTINUED PRODUCT
The TEW-634GRU (Version v1.0R) has been discontinued.  For a list of discontinued products, click here.

The N300 Wireless Gigabit Router w/ USB Port (model TEW-634GRU) incorporates the latest wireless n technology, Gigabit Ethernet ports and a convenient USB port to create a secure high performance wireless local area network.

Connect USB flash drives, hard drives or printers directly to the router, to share data across your wirelessly local area network.

A robust firewall and advanced wireless encryption protects your network. Wi-Fi Protected Setup (WPS) integrates other WPS devices into your network quickly. Advanced MIMO antenna technology optimizes wireless coverage. Quality of Service (QoS) technology prioritizes gaming, Internet calls and video streaming. An intuitive installation process and remote management capabilities make this product well suited for your most demanding networking needs.

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.



RoHS Compliant
  • Wi-Fi compliant with IEEE 802.11n and IEEE 802.11b/g standards
  • 4 x 10/100/1000Mbps Auto-MDIX LAN port
  • 1 x 10/100Mbps WAN port (Internet)
  • 1 x USB 2.0 port and 1 x Wi-Fi Protected Setup (WPS) button
  • Supports Cable/DSL modems with Dynamic IP, Static IP, PPPoE, PPTP, L2TP & BigPond connection types
  • High-speed up to 300Mbps data rate using IEEE 802.11n connection
  • 2 x 2dBi detachable external antennas support high speed performance and expansive coverage with MIMO technology
  • Network a USB flash drive, hard drive or printer using software utility
  • Wi-Fi Multi Media (WMM) Quality of Service technology prioritizes gaming, Internet calls and streaming video
  • Supports 64/128-bit WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK
  • Supports Wi-Fi Protected Setup (WPS) for easy connection
  • Provides additional security with Internet Access Control (MAC Address, Domain & IP Filtering)
  • Universal Plug and Play (UPnP)
  • Easy management via web browser and remote management
  • USB Control Center (Storage/Print Server utility) works with Windows 2000/XP/Vista only
  • *Coverage up to 100 meters (330ft.) indoor and 300meters (980ft) outdoor (depends on the environment)
  • 3- year limited warranty

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.

  • Hardware
  • Standards
  • Wired: IEEE 802.3/u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet Wireless: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (draft 2.0), IEEE 802.11e QoS USB: v1.0, 1.1, 2.0
  • WAN
  • 1 x 10/100Mbps Auto-MDIX port (Internet)
  • LAN
  • 4 x 10/100/1000Mbps Auto-MDIX ports
  • WPS Button
  • Enable Wi-Fi Protected Setup function
  • USB
  • 1 x USB 2.0, 1.1 Compliant USB Type A Port
  • Connection Type
  • Dynamic IP, Static (Fixed) IP, PPPoE, PPTP, L2TP, BigPond
  • Internet Access Control
  • MAC Address Filter, Domain/URL Filter, Protocol/IP Filter
  • LED Indicator
  • Power, LAN1~LAN4, WAN, WLAN, USB
  • Power Adapter
  • 12V DC, 2A external power adapter
  • Power Consumption
  • 7watts (max.)
  • Dimension (L x W x H)
  • 150 x 110 x 30 mm (5.9 x 4.3 x 1.1 inches)
  • Weight
  • 245g (8.6 oz)
  • Temperature
  • Operation: 0°~ 40°C (32°F~ 104°F); Storage: -10°~ 70°C (14°F~158 °F)
  • Humidity
  • 10%~95% RH, no condensation
  • Certifications
  • CE, FCC
  • Wireless
  • Frequency
  • 2.412~ 2.484GHz ISM band
  • Antenna
  • 2 x 2dBi detachable dipole antennas
  • Media Access Protocol
  • CSMA/CA with ACK
  • Modulation Technique
  • DBPSK/DQPSK/CCK/OFDM (BPSK/QPSK/16-QAM/64-QAM)
  • Data Rate
  • 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps 802.11n: up to 300Mbps
  • Security
  • WEP(HEX/ASCII): 64/128-bit WPA(AES/TKIP): WPA/WPA2, WPA-PSK/WPA2-PSK Enable/Disable broadcast SSID Protocol filtering Domain filtering
  • QoS
  • WMM enable/disable feature
  • Output Power
  • 802.11b: 15dBm (typical) 802.11g: 15dBm (typical) 802.11n: 14dBm (typical)
  • Receiving Sensitivity
  • 802.11b: 11Mbps -85dBm (typical) @ 10% per 802.11g: 54Mbps -68dBm (typical) @ 10% per 802.11n: 300Mbps -59dBm (typical) @ 10% per
  • Channels
  • 1~ 11 (FCC), 1~13 (ETSI)
  •

    Package Contents

    • TEW-634GRU
    • Multi-Language Quick Installation Guide
    • CD-ROM (User’s Guide)
    • Power adapter (12V DC, 2A)
    • Cat. 5 Ethernet cable (1.5m/5ft.)
