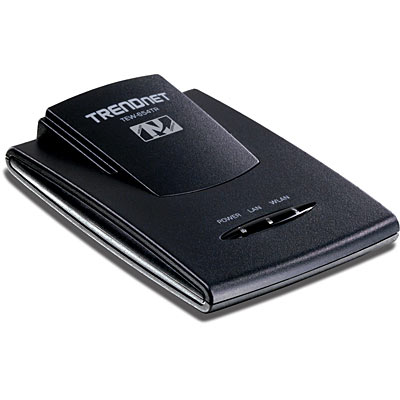

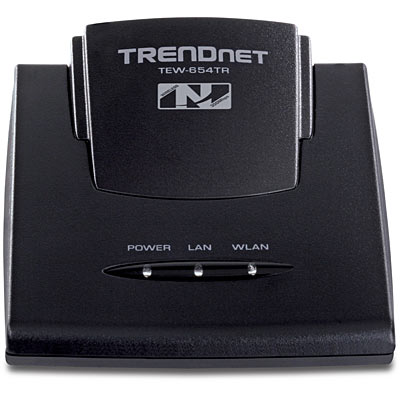

N300 Wireless Travel Router Kit
TEW-654TR (Version v1.0R)
  • Travel with 300Mbps wireless n speed and coverage in your pocket
  • Share a single Internet connection with multiple users
  • Compact travel case and accessories included
  • One-touch Wi-Fi Protected Setup (WPS)


 DISCONTINUED PRODUCT
The TEW-654TR (Version v1.0R) has been discontinued.  It has been replaced by the TEW-714TRU (Version v1.0R). For a list of discontinued products, click here.
Watch product spotlight video:

The N300 Wireless Travel Router Kit offers a high performance router that is so small it disappears in your front pocket. Enjoy the freedom of wireless n while on the go and share a single Internet connection with multiple users. This compact kit fits into the most overstuffed luggage and contains everything needed to quickly create a 300 Mbps wireless network.

A convenient carrying case holds the ultra-compact 300 Mbps wireless n router, a slim Ethernet cable, an electrical adapter and an alternate USB cable that powers the router from a computer. Advanced wireless encryption secures your network, Multiple Input Multiple Output (MIMO) antenna technology maximizes wireless coverage and Wi-Fi Protected Setup (WPS) quickly connects client adapters.


  • Wi-Fi compliant with IEEE 802.11n (draft 2.0) standard
  • Backwards compatible with IEEE 802.11g and IEEE 802.11b devices

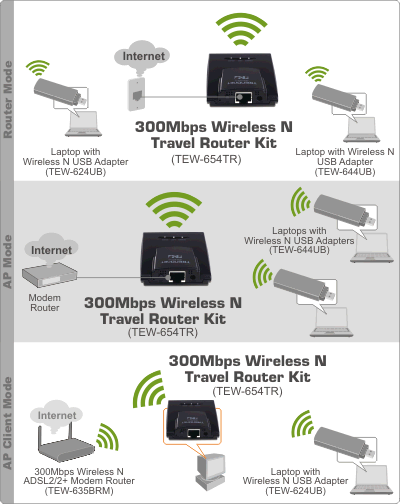

  • Supports Router, Access Point and AP Client modes
  • Supports Multiple Input Multiple Output (MIMO) technology
  • Powered by external power adapter or USB connection to computer
  • Network Address Translation (NAT) and Stateful Packet Inspection (SPI) protect against Internet attacks
  • Maximum reliability, throughput and connectivity with automatic data rate switching
  • Wireless encryption includes 64/128-bit WEP, WPA/WPA2-RADIUS and WPA-PSK/WPA2-PSK
  • Supports full duplex 802.3x flow control
  • Wi-Fi Multimedia (WMM) Quality of Service (QoS) supported
  • Wi-Fi Protected Setup (WPS) integrates other WPS devices quickly
  • Multiple VPN pass-through sessions for IPSec and PPTP
  • Easy Web browser remote management
  • Works with Windows, Linux and Mac operating systems
  • Coverage up to 50 meters (160ft.) indoor and up to 200 meters (650ft.) outdoor*
  • 3-year limited warranty

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.

  • Hardware
  • Interface

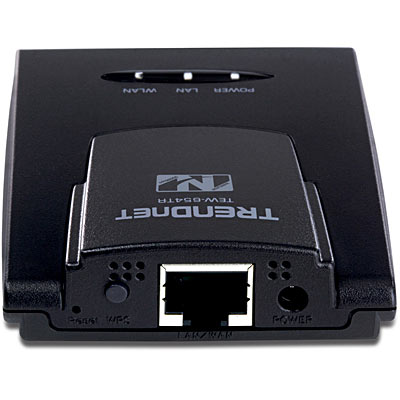

  • 1 x 10/100 Mbps Auto-MDIX port
  • Standards
  • IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (draft 2.0)
  • IEEE 802.3/IEEE 802.3u Fast Ethernet
  • Supported Protocol
  • TCP/IP, NAT, PPPoE/PPTP/L2TP, HTTP, DHCP Server/Client
  • LED Indicator
  • Power
  • LAN: Link, ACT
  • WLAN: ACT
  • Power Consumption
  • 2.5 watts (max)
  • Power Adapter
  • Input: 100 ~ 240V AC
  • Output: 5V, 1.2A external power adapter or power via the included USB cable from pc
  • Dimensions (LxWxH)
  • 60 x 80 x 18.5mm (2.4 x 3.2 x 0.7in)
  • Weight
  • 50g (1.6oz)
  • Temperature
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -10° ~ 70° C (14° ~ 158° F)
  • Humidity
  • 10% ~ 90% max (non-condensing)
  • Certification
  • FCC, CE
  • Wireless
  • Module Technique
  • DBPSK/DQPSK/CCK/OFDM (BPSK/QPSK/16-QAM/64-QAM)
  • Antenna
  • 2 on-board antennas
  • Frequency
  • 2.412 ~ 2.484 GHz
  • Data Rate (auto fallback)
  • 802.11b: 11 Mbps, 5.5 Mbps, 2 Mbps, and 1 Mbps
  • 802.11g: 54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12 Mbps, 9 Mbps and 6 Mbps
  • 802.11n: up to 300 Mbps
  • Output Power
  • 802.11b: 14±2dBm (typical)
  • 802.11g: 14±2dBm (typical)
  • 802.11n :12±2dBm (typical)
  • Receiving Sensitivity
  • 802.11b: -85dBm (typical)
  • 802.11g: -68dBm (typical)
  • 802.11n: -59dBm (typical)
  • Security
  • 64/128-bit WEP (Hex & ASCII), WPA/WPA2-RADIUS (802.1x), WPA-PSK/WPA2-PSK MAC address, IP and URL filtering
  • Channels
  • 1~11 (FCC), 1~13 (ETSI)


Package Contents

  • TEW-654TR
  • CD-ROM (User’s Guide)
  • Multi-Language Quick Installation Guide
  • Carrying case
  • USB to power-pin cable (0.45m/2.5ft.)
  • Cat. 5 Ethernet cable (1.1m/3.6ft.)
  • Power Adapter (5V, 1.2A)
