Wireless G ADSL Firewall Modem Router
TEW-435BRM (Version D1.1R)

Combination modem and router delivers proven wireless g performance and reliability
Compatible with most ADSL services - no need to rent a modem from an ADSL service provider
Firewall and advanced wireless encryption ensures data security

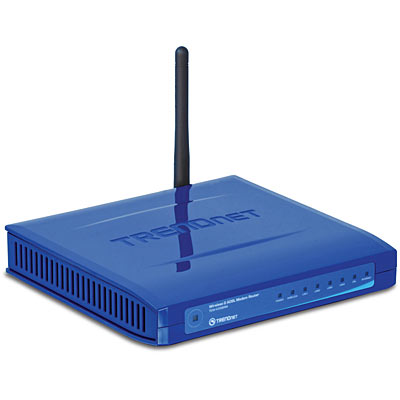

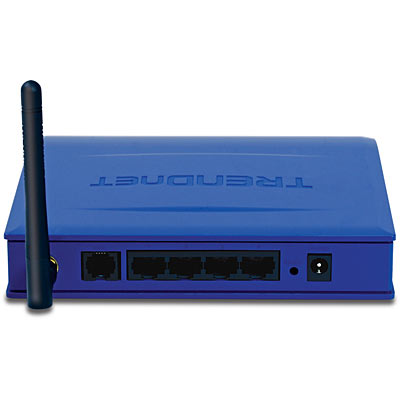

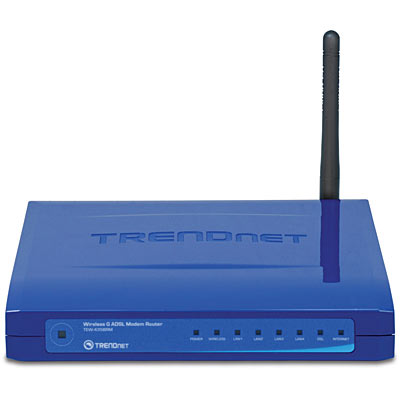

Click on image to enlarge

The Wireless G ADSL Firewall Modem Router (TEW-435BRM) delivers an all-in-one high-performance Internet and wireless network access solution.

No need to buy a separate modem and router. The TEW-435BRM offers an access point, ADSL modem, firewall, Internet router and 4-port switch in a single product. Install this device in minutes and seamlessly surf the Internet, download files, play games and talk Online.

The most advanced wireless security protocols (up to WPA2-PSK) are supported. Wi-Fi Protected Setup (WPS) allows users to securely synchronize wireless peripheral devices at the touch of a button. A firewall featuring Network Attached Translation (NAT) and Stateful Packet Inspection (SPI) protect against over 2000 unique documented Internet attacks.

Wi-Fi compliant with IEEE 802.11g and IEEE 802.11b wireless devices
Supports router+ modem or modem (modem only) mode
Compliant with ADSL, ADSL2, ADSL2+ on G.dmt, G.lite and T1.413 multi-mode PSTN environments
Compliant with PPPoE, PPPoA or IPoA connection types
Support Wi-Fi Protected Setup (WPS) for easy connection
Provides 64/128-bit wired equivalent privacy (WEP) and WPA-PSK encryption
Supports filtering by URL, MAC address, services and date/time
Supports DMZ, virtual servers (port forwarding) and firewall rules
Supports RIP/Static routing and dynamic DNS service
Supports up to 100 VPN pass-through sessions for PPTP, IPSec or L2TP connections
NAT/NAPT, rule-based and SPI firewall protect against denial of service (DoS) attacks
Real-time email alert and logs when attack/unauthorized Internet activity occurs
DHCP server feature supports up to 253 users
Supports universal plug & play (UPnP) and application layer gateways (ALGs).
Support Internet applications such as email, gaming, multimedia and entertainment
Supports operating systems, such as Windows 95/98/ME/NT/2000/XP/Vista, Unix, and Mac
Easy configuration and remote management with Web browser (HTTP)
Supports SSID enable/disable broadcasting feature
Built-in flash memory for firmware upgrade
3-Year warranty

Hardware
Standards	IEEE 802.3 10Base-T; IEEE 802.3u 100Base-TX; IEEE 802.11g, IEEE 802.11b
Protocol	NAT/NAPT, PPPoE & PPPoA, HTTP, DHCP (Client/Server), TCP/IP & UDP, PAP & CHAP, RIP1, RIP2, DDNS, UPnP
Firewall	NAT Firewall with ALGs, Rule-Based Policy Firewall, Denial of Service (DoS) Attack Firewall; E-mail Alerts and Log
Security	URL Filter, Access Control, Local Password
VPN Pass Through	PPTP, IPSec, L2TP (up to 100 sessions)
ATM	TM Cell over AAL5 Support UBR/CBR/VBR VPI Range (0-255) and VCI range (32-65535) Support 4PVCs Support OAM F4/F5 loopback Payload Encapsulation RFC2684 (RFC 1483 / 2684), Multi-Protocol over ATM RFC2684 (RFC 1483 / 2684), Bridge mode RFC2225 (RFC 1577), IPoA RFC2364, PPP over ATM (CHAP and PAP supported) RFC2516, PPPoE (PPP over Ethernet) over ATM Support auto-Detection for VPI/CVI and Multiplexing method (VC-based, LLC-based)
Management	Web-Based Management (HTTP)
WAN Port (ADSL line Interface)	Complies with G.dmt (G.992.1) Annex A Complies with G.lite (G.992.2) and T1.413 Annex A ITU G.992.3 Annex A ADSL2, ITU G.992.5 Annex A ADSL2+ RJ-11 connector, Line Impedance: 100 Ω
LAN Port	4 x 10/100Mbps Auto-MDIX and Auto-Negotiation RJ-45 Port
Reset Button	Reset to Factory Default
Security Button	Push the Security (WPS) button on wireless device to perform WPS function
LED	Power, 4x10/100LAN, ADSL, WLAN, Internet
Power	12V DC 1A External Power Adapter
Dimensions	176.0 x 146.8 x 33mm (6.6 x 5.7 x 1.2 in.)
Weight	270g (9.5 oz)
Temperature	Operating: 0˚~ 40˚C (32˚~ 104˚F) Storage: -10˚~ 70˚C (-14˚~ 158˚F)
Humidity	Operating: 10 ~ 90% RH Storage: 5 ~ 95% RH
Emissions	FCC, CE
Wireless
Standards	IEEE 802.11b, IEEE 802.11g
Modulation	802.11b: DSSS (PBCC, CCK, DQPSK, DBPSK) 802.11g: OFDM
Data Rate (Auto Fallback)	802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps
Frequency Range	2.4 ~ 2.497 GHz
Channel	1~14 Channel (Universal Domain Selection)
Antenna	1 x 2dBi External Detachable Dipole Antenna with Reverse SMA Connector
Security	64/128-Bit WEP (Hex or Passphrase), WPA-PSK (TKIP)
Output Power	802.11b: 18dbm 802.11g: 12 ~ 14dbm
Receiving Sensitivity	11Mbps 10 – 5 BER @ -82 dBm (typical) 54Mbps 10 – 5 BER @ -72 dBm (typical)

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

Package Contents

TEW-435BRM
Multi-language quick installation guide
CDROM (user’s guide)
1 x RJ-45 1.5m (5ft.) Ethernet cable
1 x RJ-11 telephone cable
Power adapter (12V DC, 1A)
