Megapixel PoE Internet Camera
TV-IP522P (Version v1.0R)

Megapixel resolution up to 1280 x 960
No need to install this camera near a power source, power and data are received through a single Ethernet cable
Program motion detection recording, recording schedules, email alerts and more with complimentary software
Features a removable lens, I/O ports, 2-way audio and a mounting kit

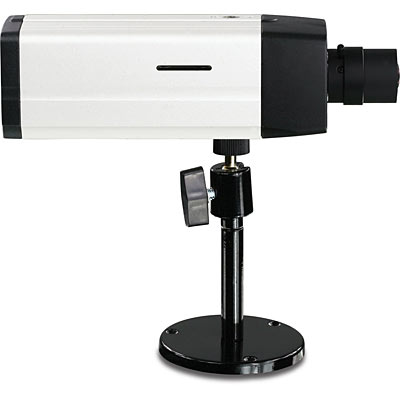

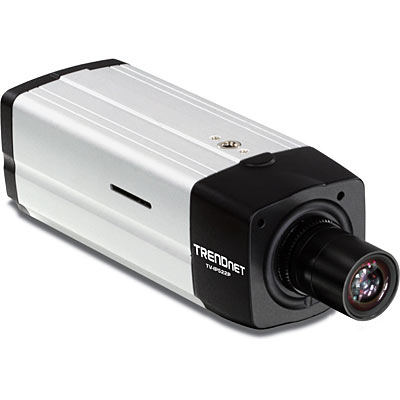

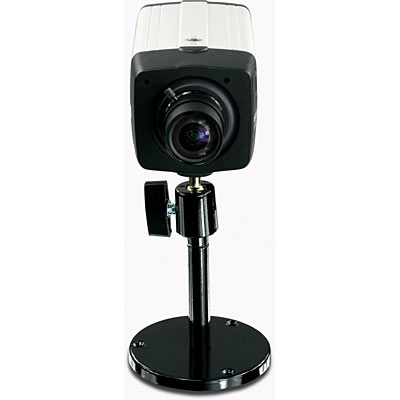

Click on image to enlarge

The ProView MegaPixel PoE Internet Camera (model TV-IP522P) transmits real-time video over the Internet at up to 1280 x 960 resolution. Manage up to four video profiles to record megapixel H.264 quality video while at the same time streaming content to a compatible 3GPP mobile phone. No need to install this camera near a power source, power and data are received through a single Ethernet cable using Power over Ethernet (PoE) technology.

Manage up to 32 TRENDnet ProView cameras with the included complimentary camera management software. Advanced features include Samba client support, motion detection recording, email alerts, scheduled recording sessions, H.264/MPEG-4/MJPEG image compression, 2-way audio, input/output ports, a removable lens, 16x digital zoom, four video profiles, and a built-in SD card slot to store images directly to a memory card. The camera's extruded aluminum housing has top and bottom mounting points and it comes with a wall/ceiling mounting kit.

IEEE 802.3af PoE compliant device
1x 10/100Mbps RJ-45 Power over Ethernet (PoE) port
1x removable 4mm, F1.4, CS mount lens
Input/Output ports to network alarm systems and other devices
2-way audio: built-in microphone, jack for additional 3rd party microphone, and speaker jack for 3rd party speaker (sold separately)
Manual Iris adjustor dial
Up to 16x digital zoom
Megapixel resolution up to 4VGA: 1280 x 960 pixels
High quality H.264, MPEG-4 and MJPEG video recording at up to 30 frames per second
Manage up to 4 video profiles
Stream Internet camera video to a 3GPP compatible wireless device
Included wall and ceiling mounting hardware
Top and bottom camera mounting points
Hear and talk to people in your camera’s viewing field through your computer
Supports TCP/IP networking, Email, HTTP, Samba and other Internet protocols
Built-in SD card slot allows you to store still images or video directly onto a SD memory card*
Set camera to day, night, indoor, outdoor, or automatic viewing mode
Record streaming video to your computer, SD card, or network storage device
Adjustable motion detection fields
Recording type: event based (motion detection and digital input trigger), continuous, and scheduled
Motion detection recording, email alert, output trigger, and image upload via FTP
Quick Universal Plug and Play (UPnP) installation
Complimentary IPView Pro 2.0 software: manage up to 32 cameras **
3-year limited warranty

*SD memory card sold separately
**Monitoring multiple cameras may require a high performance CPU

Camera

General

Sensor: 1/2.5” color CMOS image sensor Sensor Resolution: 2592(H) x 1944 (V) Lens: 1/2” CS-Mount, replaceable Focal Length: 4mm F/No: F1.4 Sensor Sensitivity: 1.4V/lux-sec (550nm) Minimum illumination: 0.5 lux@F1.4 Focus depth: 70cm ~ infinity View angle:
	-Horizontal:
		55.70 degree (1280x960 mode) 43.21 degree (1280x720 mode) 55.70 degree (640x480 mode)
	-Vertical:
		70.30 degree (1280x960 mode) 70.29 degree (1280x720 mode) 70.30 degree (640x480 mode)
	-Diagonal:
		82.70 degree (1280x960 mode) 77.90 degree (1280x720 mode) 82.70 degree (640x480 mode)

Audio

Built-in omni-directional microphone
Sensitivity: -40dB +/- 3dB (5 meters max.)
Frequency: 100~10000Hz
S/N: >60dB
External speaker output (speaker sold separately)
Two-way audio with echo canceling
Codec: ARM/PCM

Image & Video

Compression: simultaneous H.264 / MPEG-4 / MJPEG
Profiles: up to 4 profiles simultaneously
Exposure/white balance control: automatic
Resolution: 4VGA (1280x960) up to 15fps, HDTV (1280x720) up to 15fps, VGA (640x480) up to 30fps
Built-in ICR

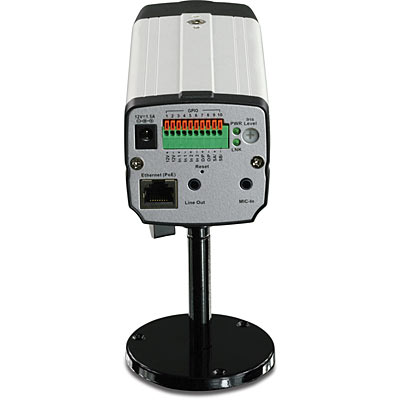

I/O Connector

12V DC output (pin 1/2)
Input: 2 sets (pin 3/4, pin 5/6)
Output: 1 set (pin 7/8)
RS-485: 1 set (pin 9/10)

SD slot

Secure Digital card (up to 16G)

Hardware

Network

IEEE 802.3u 10/100Mbps Fast Ethernet
IEEE 802.3af PoE

LED

Power (green), Link (green)

Reset Button

Reset settings

Power Consumption

PoE input: 9 Watts (max.)
DC input: 8 Watts (max.)

Power

12V, 1.5A external power adapter

Dimension

200 x 65 x 55 mm (7.9 x 2.6 x 2.2 in.)

Stand Dimension

128 mm (4.7 in.)

Weight

Camera: 455g (1 lb.)
Stand: 116g (4.1 oz.)

Temperature

Operating: 0°C ~ 45°C (32°F ~ 113°F)
Storage: -20°C ~ 70°C (-4°F ~ 158°F)

Certifications

CE, FCC

Requirement

To View Camera

Internet Explorer 6.0 or above

To Run Software

Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)

IPView Pro 2.0

Channel: supports up to 32 cameras
Record/Playback/Motion Detection/Audio

Network Protocols

IPv4, ARP, TCP, UDP, ICMP
DHCP Client, NTP Client, DNS Client, DDNS Client, SMTP Client, FTP Client
HTTP
Samba Client
PPPoE
UPnP
RTP (Real Time Protocol)
RTCP (Real Time Control Protocol)
RTSP (Real Time Streaming Protocol)

Management

Account

Up to 20 user accounts

Remote

Remote management supported

Backup / Restore

Save/retrieve configuration files

Log

System log up to 500 entries

Settings


Brightness, contrast, noise reduction, saturation, sharpness, white balance, flip, mirror (horizontal/vertical), black/white, day, night, indoor, outdoor mode

Video

Sensor Output: 4VGA mode

Encoding type: JPEG / MPEG-4 / H.264
Resolution: 1280 x 960, 640 x 480, 320 x 240
Max frame rate: 15fps
JPEG Quality: Low, Fair, Standard, Good, Excellent

Sensor Output: HDTV mode

Encoding type: JPEG / MPEG4 / H.264
Resolution: 1280 x 720, 640 x 352, 320 x 176
Max frame rate: 15fps
JPEG Quality: Low, Fair, Standard, Good, Excellent

Sensor Output: VGA mode

Encoding type: JPEG / MPEG4 / H.264
Resolution: 640 x 480, 320 x 240, 160 x 120
Max frame rate: 30fps
JPEG Quality: Low, Fair, Standard, Good, Excellent

Recording

Resolutions: multiple profiles
Required storage: 32MB (minimum)
Recording type: event based (motion detection and digital input trigger), continuous, and scheduled

Snapshot

Trigger event: motion detection or digital input signal
Action: send alert email and/or upload to FTP

Port Settings

HTTP port: 80 (default)
RTSP port: 554 (default)

Digital Zoom

16x

Dynamic DNS

Yes

Time

Synchronize with NTP server or set time/date manually
