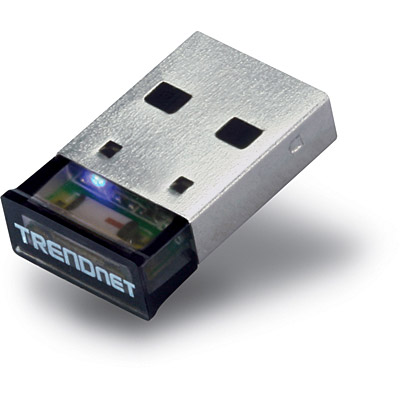

Micro Bluetooth® USB Adapter
TBW-106UB (Version 1.0R)

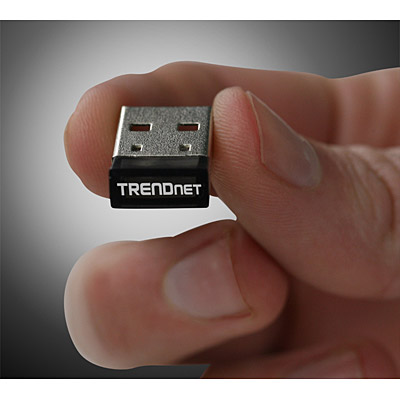

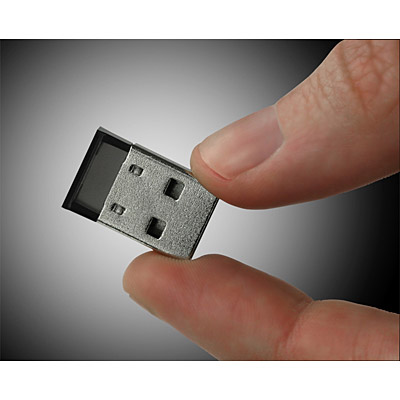

This micro-device is about the size of a penny
Turn your laptop or desktop computer into a Bluetooth enabled workstation
Connect Bluetooth enabled devices such as cell phones and headsets
Experience crystal clear sound quality for distances of up to 100m (328ft)

Click on image to enlarge

The Micro Bluetooth USB Adapter (Model TBW-106UB) networks Bluetooth enabled devices such as cell phones, keyboards and headsets.

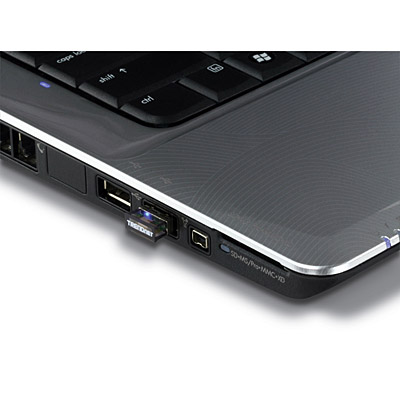

The size of a penny, simply plug this micro-device into an available USB port on your laptop or desktop and experience exceptional Bluetooth connectivity.

Connect as many as 7 Bluetooth devices at distances of up to 100m (328ft). Enhanced Data Rate (EDR) technology transfers your data quickly. Adaptive Frequency Hopping (AFH) minimizes interference from other wireless technologies. This compact device also provides secure encrypted data communication.

Connect Bluetooth-enabled devices such as printers, headsets, audio/video devices and mobile phones
Compliant with Class I Bluetooth v2.0 and v2.1 specifications
Enhanced Data Rate (EDR) support
Bluetooth IVT software technology
Adaptive Frequency Hopping (AFH) support
Enhanced SCO (ESCO) for crisp and clear voice quality
Compatible with Windows Vista/98SE/ME/2000/XP and Media Center Edition operating systems
Communicates wirelessly up to 100 meters (328ft.) (depends on environment)
Trouble free Plug & Play installation
2-year limited warranty


Hardware
Standards	Class I Bluetooth v2.0 and v2.1 with EDR USB 2.0 Backwards compatible with Bluetooth v1.1, v1.2 and USB 1.1
Antenna	Internal
Supported OS	Windows Vista/XP/2000/ME/98SE
Operating Voltage	5V (USB bus-powered)
Power Consumption	Typical: 95mA; idle: 12mA Tx max: 136mA @19dBm; Rx max: 45mA
Temperature	Operation: 0°~ 40°C (32°F~104°F) Storage: -10°~ 65°C (14°F~149°F)
Humidity	5%~95%RH (no condensation)
LED Indicator	Single LED activity/connection
Dimensions	19 x 12 x 5.5 mm (0.75 x 0.47 x 0.22 in.)
Weights	1.8g (0.063 oz.)
Certification	CE, FCC
Bluetooth
Frequency	2.4 ~ 2.4833 GHz
Module Technique	GFSK (Gaussian Frequency Shift Keying). π/4 DQPSK, 8DPSK
Profile Support	DUN (Dial-up Networking) FAX Profile, BPP ( Basic Printing Profile) LAP (LAN Access Profile) SPP (Serial Port Profile) GAP (Generic Access Profile) HID (Human Interface Device) HCRP (Hardcopy Cable Replacement Profile) FTP (File Transfer Profile) OPP (Object Push Profile) A2DP (Advanced Audio Distribution Profile) GAVDP (Generic Audio/Video Distribution Profile) HSP (Headset Profile) PAN (Personal Area Networking) BIP (Basic Image Profile) SYNC (Synchronization Profile) AV (Audio Video) GOEP (Generic Object Exchange Profile)
RF Output Power	-6~4dBm (typical)
Encryption	128 bit data encryption
Receiving Sensitivity	-82dBm (typical)
Data Rate	Basic data rate: up to 723.2Kbps Enhanced data rate: up to 3Mbps
Date Range	Up to 100m (328 ft.)

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

Package Contents

TBW-106UB
Multi-Language Quick Installation Guide
CD-ROM (Driver & Utility)
