Compact Bluetooth® USB Adapter
TBW-105UB (Version 1.0R)

Ultra compact design
Enjoy crystal clear interference-free sound quality
Connect wirelessly up to 10 meters (32.8 ft.) away

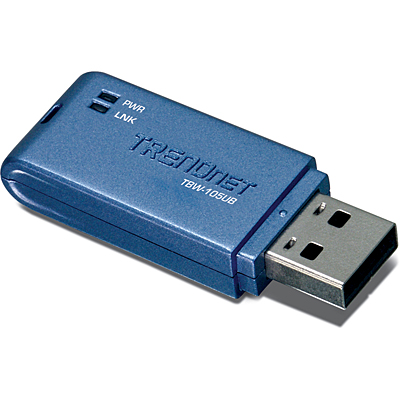

Click on image to enlarge

The USB 2.0 Bluetooth Adapter allows you to make short-range wireless connections between your computer and Bluetooth-enabled devices. This Bluetooth v2.0 utilizes Enhanced Data Rate (EDR) to allow for data rates up to 3Mbps. The Bluetooth adapter can easily connect to your Bluetooth-enabled devices from up to 10 meters away.

Compliant with Bluetooth v2.0 Specification with EDR (Enhanced Data Rate) support
Backward compatible with Bluetooth v1.1 and v1.2 devices
Support Full-Speed Bluetooth operation with Full Piconet support
Support AFH (Adaptive Frequency Hopping) and Fast Connection – enhanced inquiry scan (immediate RHS response), LMP improvements, Parameter Ranges, Extended SCO (eSCO) SCO handle, Synchronization
Support Scatternet and up to 7 active slave devices
Up to 3Mbps Access Data Rate and Low Power Consumption
Compatible with Windows 98SE/ME/2000/XP (32/64-bit)/Vista (32/64-bit) Operating Systems
Enable computers to connect Bluetooth enabled devices such as printers, headset, audio/video, basic Image, PDAs, and mobile phones
Compliant with Class II Bluetooth Operations
Communicates wirelessly up to 10 meters (32.8 ft.) (depends on the environment)
Trouble free Plug-n-Play Installation
2-year limited warranty


Hardware
Standards	Class II Bluetooth v2.0 with EDR Backward Compatible with Bluetooth v1.1, v1.2 USB 2.0
Antenna	Internal printed antenna
Supported OS	Windows 98SE/ME/2000/XP (32/64-bit)/Vista (32/64-bit)
Power Consumption	Typical: 95mA; idle: 12mA Tx max: 136mA @19dBm; Rx max: 45mA
Dimensions	47 x 18 x 8 mm (1.85 x 0.7 x 0.3 in.)
Weights	5g (0.18oz.)
Temperature	Operation: 0°~ 40°C (32°F~104°F) Storage: -10°~ 65°C (14°F~149°F)
Humidity	5%~95%RH (no condensation)
Emissions	CE, FCC


Bluetooth
Frequency	2.4~2.4835 GHz ISM Band
Module Technique	GFSK (Gaussian Frequency Shift Keying). π/4 DQPSK, 8DPSK
Profile Support	DUN (Dial-up Networking) FAX BPP ( Basic Printing Profile) LAP (LAN Access Profile) SPP (Serial Port Profile) GAP (Generic Access Profile) HID (Human Interface Device) HCRP (Hardcopy Cable Replacement Profile) FTP (File Transfer Profile) OPP (Object Push Profile) A2DP (Advanced Audio Distribution Profile) GAVDP (Generic Audio/Video Distribution Profile) HSP (Headset Profile) PAN (Personal Area Networking) BIP (Basic Image Profile) SYNC (Synchronization Profile) AV (Audio Video) GOEP (Generic Object Exchange Profile)
RF Output Power	4dBm (typical)
Receiving Sensitivity	-86dBm@0.1%BER (typical )
Data Rate	Basic data rate: up to 723.2Kbps Enhanced data rate: up to 3Mbps
Data Range	Up to 10m (32.8 ft.) depends on environment

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

Package Contents

TBW-105UB
Quick Installation Guide
CD-ROM
(Driver/User´s Guide)
