Product Families » Wireless Networking » Wireless N » TEW-641PC
Wireless N PC Card
TEW-641PC (Version V1.0R)
  • Upgrade your laptopīs wireless to high performance wireless n
  • 8x the speed and 4x the coverage of wireless g
  • Advanced wireless encryption provides robust security
  • One-step encryption setup with Wi-Fi Protected Setup (WPS)


 DISCONTINUED PRODUCT
The TEW-641PC (Version V1.0R) has been discontinued.  It has been replaced by the TEW-648UB (Version v1.0R). For a list of discontinued products, click here.

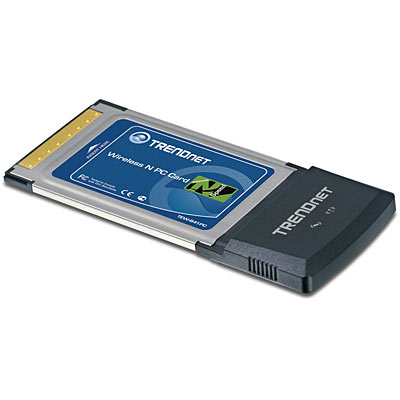

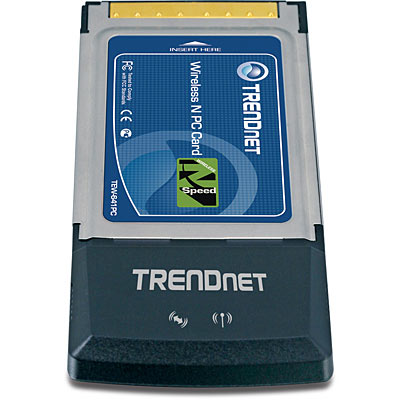

TEW-641PC
Click on image to enlarge

The Wireless N PC Card allows you to connect your laptop wirelessly with unsurpassed speed and reliability.

Enjoy up to 8x the speed and 4x the coverage of a wireless g connection*. Upgrade your desktop and enjoy faster than wired speeds with a wireless connection. Setup is a breeze with Wi-Fi Protected Setup technology. Advanced wireless encryption protects your valuable data. The latest in MIMO antenna technology ensures the fastest communication speeds that wireless n technology provides. Seamlessly stream media, download files, play games and talk online when connected to a wireless n router.

**Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.


RoHS Compliant

  • Wi-Fi compliant with IEEE 802.11n standard
  • Backwards compatible with IEEE 802.11g and IEEE 802.11b devices
  • Supports Ad-Hoc (Client-Client) and Infrastructure (AP-Client) Mode
  • Supports Multiple Input Multiple Output (MIMO) technology
  • Maximum reliability, throughput and connectivity with automatic data rate switching
  • Supports 64/128-bit WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK
  • Low interference and high susceptibility guarantee reliable performance
  • Compatible with Windows 7/Vista/XP/2000 operating systems
  • Easy user setup and intuitive diagnostics utilities
  • Coverage of up to 50 meters indoor and 100 meters outdoor *
  • Wi-Fi Multimedia (WMM) Quality of Service (QoS) supported
  • 3-year limited warranty

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.

Hardware
Interface 32-Bit 3.3V CardBus Type II card
Standards IEEE 802.11b, IEEE 802.11g and IEEE 802.11n
LED Indicator PWR (power), NET (link activity)
Power Consumption Receive mode: 541mA (max) ; Transmit mode: 576mA (max)
Supported OS Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), 2000
Dimensions (LxWxH) 120 x 54 x 3mm (4.7 x 2.1 x 0.13 inches)
Weight 40g (1.4oz)
Temperature Operating: 0° ~ 40° C (32° ~ 104° F); Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity 10% ~ 90% max (non-condensing)
Certification FCC, CE
Wireless
Module Technique DBPSK/DQPSK/CCK/OFDM (BPSK/WPSK/16-QAM/64-QAM)
Antenna Built-in 2 on board antennas
Frequency 2.412 ~ 2.484 GHz
Media Access Protocol CSMA/CA
Data Rate (auto fallback) 802.11b: up to 11Mbps
802.11g: up to 54Mbps
802.11n: up to 300Mbps (RX)/150Mbps(TX)
Output Power 802.11b: 15dBm (typical)
802.11g: 15dBm (typical)
802.11n : 14dBm (typical)
Receiving Sensitivity 802.11b: -84dBm (typical) at 11mpbs
802.11g: -68dBm (typical) at 54Mbps
802.11n: -65dBm at 135Mbps
Encryption 64/128-bit WEP (Hex & ASCII), WPA/WPA2 (TKIP/AES), WPA-PSK/WPA2-PSK
Channels 1~11 (FCC), 1~13 (ETSI)

TEW-641PC

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info
Email a Friend
Datasheet
Quick Installation Guide
Downloads
Register Your Product
Package Contents
  • TEW-641PC
  • Utility and driver CD-ROM
  • Multi-Language Quick Installation Guide
