Product Families » Internet Cameras » TV-IP422

SecurView Day/Night Pan/Tilt/Zoom Internet Camera
TV-IP422 (Version A1.0R)

Night visibility of up to 5m (16.4ft)
Secure a greater area with pan and tilt
Pan 330° side-to-side and tilt 105° up-and-down from any Internet connection
Program motion detection recording and email alerts with complimentary software

SecurView IP Camera Critical
Firmware Update Available

DISCONTINUED PRODUCT

The TV-IP422 (Version A1.0R) has been discontinued. It has been replaced by the TV-IP672PI (Version v1.0R). For a list of discontinued products, click here.

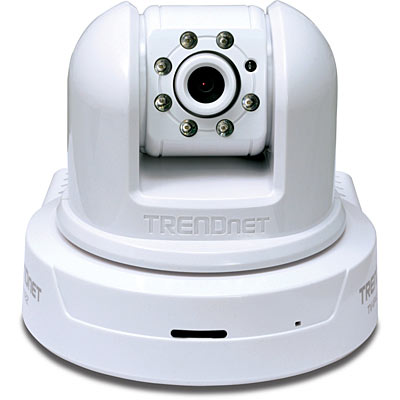

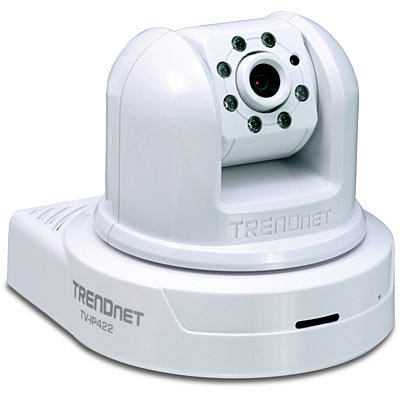

Click on image to enlarge

The Day/Night Pan/Tilt Internet Camera Server with Audio provides day and night security over a large area. See, hear and talk to people in your camera's viewing field day or night from any Internet connection.

Secure a larger area with pan and tilt Internet cameras. Pan the camera side-to-side a remarkable 330° and tilt up-and-down 105°.

The TV-IP422 provides high quality video streams over a secure remote connection. Advanced intuitive software includes motion detection recording, email alerts and scheduled recordings. This camera's brilliant image quality, pan/tilt functionality, day/night recording capabilities and built-in 2-way audio make it ideal for home, small office and business use.

Note: Does not work with TV-H400 dome camera enclosure

* Does not support SSL
** USB port supports up to 500mA power device with FAT16/32 format
*** The 3G service from a mobile phone provider is required
**** Windows 32-bit only. Monitoring multiple cameras may require a high performance CPU and graphic card.

SecurView cameras are not compatible with TRENDnet's IPView Pro camera application for ProView cameras.

Pan 330° side-to-side and tilt 105° up-and-down from any Internet connection
High quality MPEG-4 and MJPEG video recording with up to 30 frames per second
Hear and talk to people in your camera's viewing area through your computer

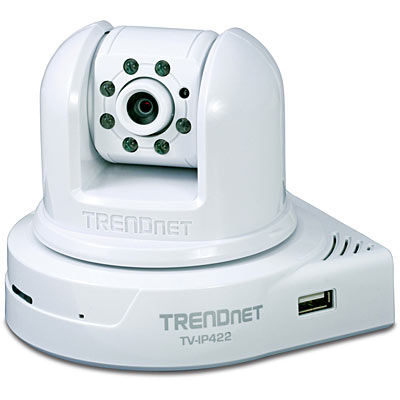

Built-in USB port allows you to store still images directly onto a USB flash or hard drive*
Infrared lens enables day and night vision (night visibility up to 5 m)
Supports TCP/IP networking, SMTP Email, HTTP, Samba and other Internet protocols
Record streaming video to your computer and network storage devices
Sends image snapshots to FTP, email and flash drives
Motion detection email alerts
Embedded Watchdog feature automatically reboots camera if an operational errors is detected
Two adjustable motion detection windows with just-in-time snapshot and time stamp overlay
Quick Universal Plug and Play (UPnP) installation
Complimentary SecurView™ software: view and record up to 16 cameras simultaneously **
3-year limited warranty

Note: When using the PoE splitter (TPE-102S/TPE-112GS)with the cameras, you need to have the additional accessory, TV-JC35.
Note: Does not work with TV-H400 dome camera enclosure

SecurView cameras are not compatible with TRENDnet's IPView Pro camera application for ProView cameras.

Camera Specifications
Image Sensor
Sensor	1/4" color CMOS sensor
Resolution	640 x 480 pixel
Fixed Lens	f: 4.0mm, F: 1.8 (IR lens)
Viewing Angle	64 degree
Minimum Illumination	0 lux
Audio
Microphone Input	Internal omni-directional Sensitivity: -48dB ± 3dB Response frequency: 50 ~ 16000Hz



Audio Output	3.5mm speaker output jack
Format	PCM/AMR (mono)
Video/Image Setting
Video Format	MPEG-4 (simple profile) MJPEG
Video Format	MPEG-4 (simple profile) MJPEG
Image Frame Rate	30fps @VGA, QVGA, QQVGA
Frame Rate Setting	1 ~ 30fps (frames per second)
Compression Ratio Setting	5 levels
Compression Ratio Setting	5 levels
Resolution	640 x 480, 320 x 240, 160 x 120
Digital Zoom	3x
Exposure Control, White Balance, Gain Control	Automatic
Exposure Control, White Balance, Gain Control	Automatic
Image Setting	Adjustable brightness, contrast, saturation
Flip Images	Vertical / horizontal
Light Frequency	50Hz, 60Hz or outdoor
Pan/Tilt
Pan Range	+165° ~ -165°
Tilt Range	+90° ~ -15°
Preset Positions	8 positions
Control	Up, down, left, right, center
Communication
LAN	10/100Mbps Auto-MDIX
Protocol	TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, Samba, PPPoE, UPnP, RTP, RTSP, RTCP
Hardware Specifications
System
CPU	ARM9 base
RAM	32Mbyte SDRAM
ROM	8Mbyte NOR Flash
OS	Linux
System Requirement (Web Configuration)
CPU	Pentium III 350MHz or above
Memory Size	128MB or above
Resolution	800 x 600 or above
Browser	Internet Explorer 6.0 or above
Supported OS	Windows 2000/XP/Vista/Windows 7
System Requirement (SecurView™ Software)
CPU	Pentium4 1GHz or above
Memory Size	512MB or above
Resolution	1024 X 768 or above
Supported OS	Windows 2000/XP/Vista/Windows 7
Physical /Environment
Dimension	115 x 110 x 105 mm (4.53 x 4.33 x 4.13 in)
Weight	330g (11.6 oz)
Power	12VDC,1.5A external power adapter (3.5 mm)
Power	12VDC,1.5A external power adapter (3.5 mm)
Power Consumption	10 watts (max)
LEDs	Power (orange), link (green) LED enable/disable support
IR Wavelength	940nm
Temperature	Operation: 0°C ~ 45°C (32°F ~ 113°F) Storage : -10°C ~ 60°C (14°F ~ 140°F)
Other
USB Port	USB 1.1 (type A) Up to 500mA power device with FAT16/32 format

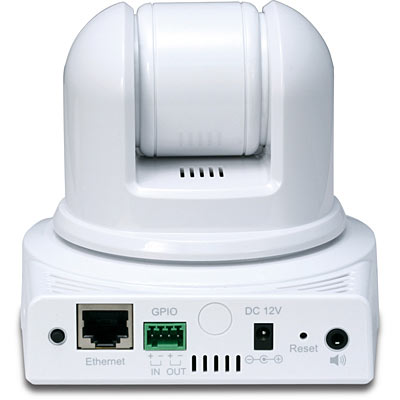

GPIO	1 input and 1 output
IR Sensor (minimum lux)	Normal mode: 2~2.5 lux Night mode on: 0.5 lux IR on: 0 lux Light sensor activates the IR LED on/off: 5~10 lux

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Critical Firmware update available

Email a Friend

Datasheet

Quick Installation Guide

Downloads

View Knowledgebase

Package Contents

TV-IP422
Multi-Language Quick Installation Guide
CD-ROM
(Utility and User’s Guide)
Cat.5 Ethernet cable
(1.8 m / 5.9 ft)
Power adapter
(12VDC, 1.5A)
GPIO adapter
Mounting kit
