Product Families » Network Adapters » Wired Network Adapters » TU2-ET100

USB to 10/100Mbps Adapter
TU2-ET100 (Version v3.0R)

Connect your laptop or PC at Fast Ethernet speeds
Quickly share data, music, movies and more
Compact design is ideal for on the go professionals

DISCONTINUED PRODUCT

The TU2-ET100 (Version v3.0R) has been discontinued. It has been replaced by the TU2-ET100 (Version v4.0R). For a list of discontinued products, click here.

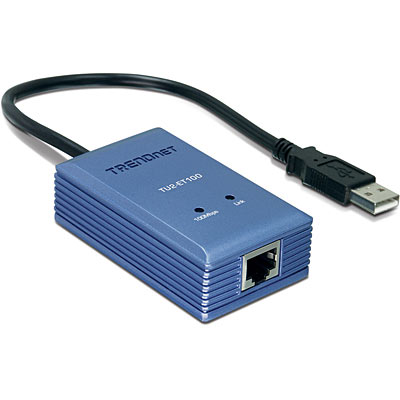

Click on image to enlarge

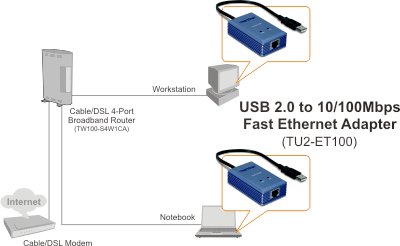

The TU2-ET100 is a high speed USB network adapter that allows you to instantly connect to a 10/100Mbps network from a USB enabled desktop or Notebook PC. Compliant with USB 2.0 and backwards compatible with the USB 1.0 and 1.1, you can share files and printers and also gain access to broadband Internet to explore valuable resources on the web.

Compliant with USB 2.0 and 1.1 specifications
Compliant with IEEE 802.3, 802.3u standards
Supports both full-duplex and half-duplex operations
Supports suspended mode and Hibernate mode to remotely wake-up through link-up or magic packet
Compliant with Windows 7/Vista/XP/2000/ME/98SE, Mac OS X 10.1~10.6
Powered by USB port. No external power adapter required
Diagnostic LEDs
Plug& Play
3-year limited warranty

Hardware
Standards	USB 2.0, 1.1 IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX
Data Transfer Rate	Ethernet: 10Mbps/20Mbps (Half/Full Duplex) Fast Ethernet: 100Mbps/200Mbps (Half/Full Duplex)
Embedded Buffers	20KB SRAM for RX Packets buffering 8KB SRAM for TX Packets buffering
Supported OS	Windows 98SE/ME/2000/XP/Vista/7, Mac OS X
LEDs	100Mbps, Link
Power	Bus-Powered
Power Consumption	850mW
Power Management	Suspend mode Hibernate Mode
Temperature	Operating: 0° C~ 40° C (32° F~ 104° F) Storage: -10° C~ 55° C (14° F~ 131° F)
Humidity	85% (Non-Condensing)
Certifications	FCC, CE

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

View Knowledgebase

Package Contents

TU2-ET100
Multi-Language QuickInstallation Guide
CD-ROM (Driver and user’s guide)
