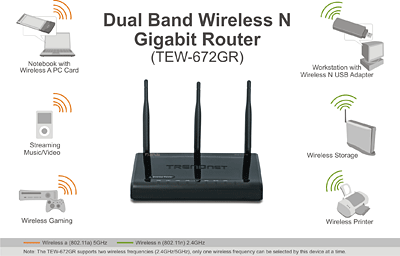

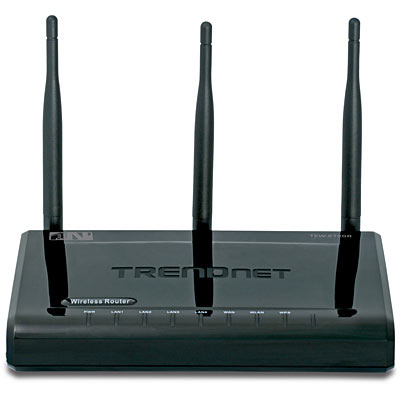

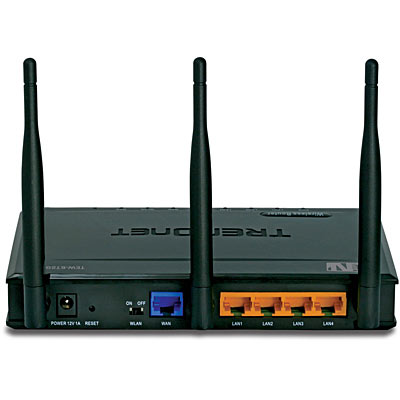

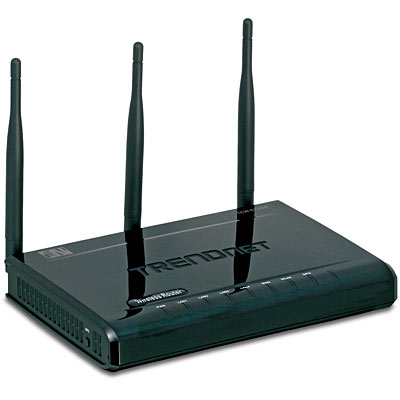

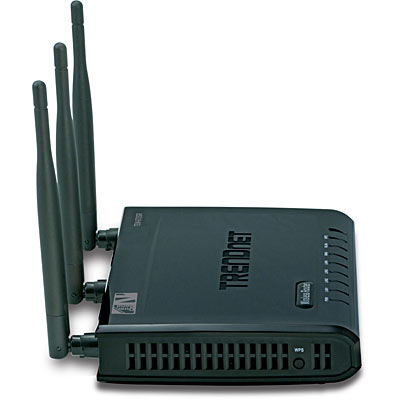

The 300Mbps Dual Band Wireless N Gigabit Router offers unsurpassed wireless speed, coverage and reliability. Enjoy up to 14x the speed and 6x the coverage of a wireless g connection*.
Dual Band wireless n technology uses 11 additional wireless channels, reduces wireless interference and optimizes performance in the most challenging environments.
Advanced Multiple Input Multiple Output (MIMO) antenna technology eliminates wireless dead spots. Advanced wireless encryption and a manual on/off wireless switch keeps your data safe. Wireless Protected Setup (WPS) integrates other WPS supported wireless adapters at the touch of a button. Seamlessly stream HD media, download files, surf and play games all at the same time.
**Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.
3K configurable NAT entries; restricted NAPT IP ranges, port ranges and schedule Pre-defined game hosting configurations Port triggering for 24 special applications ALG support (enable/disable support) –RTP/RTSP, AOL, FTP, ICMP, WMP/MMS, NetMeeting, SIP
Up to 24 rules; cyber attack protection – verified against over 2000 attacks
2.412 ~ 2.462 GHz (FCC); 2.412 ~ 2.472 GHz (ETSI) 5.150~5.250GHz; 5.725~5.825GHz (FCC) 5.150~5.250MHz (ETSI)
3 x 2dBi fixed dipole antenna
Media Access Protocol
CSMA/CA with ACK
802.11n: BPSK, QPSK, 16QAM, with OFDM 802.11b:CCK (11 and 5.5Mbps) DQPSK (2Mbps) DBSPK (1Mbps) 802.11g: OFDM with BPSK, QPSK and 16/64-QAM sub-carrier modulations
802.11a: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps 802.11n: up to 300Mbps
802.11a: -72dBm (typical) @ 54Mbps 802.11b: -84dBm (typical) @ 11Mpbs 802.11g: -73dBm (typical) @ 54Mbps 802.11n: -69dBm (typical) with HT20 or HT40
2.4GHz 1~ 11 (US), 1~13 (EU) 5GHz 36, 40, 44, 48, 149, 153, 157, 161, and 165
