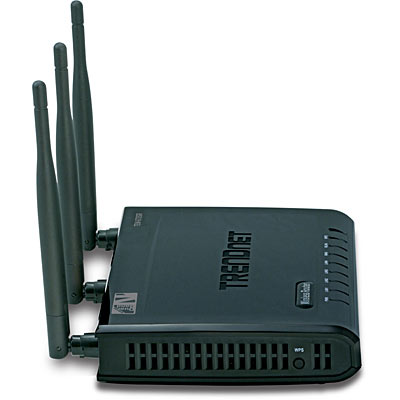

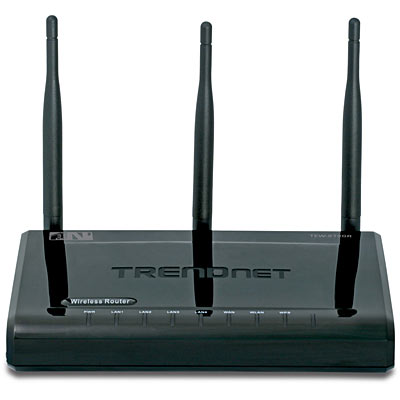

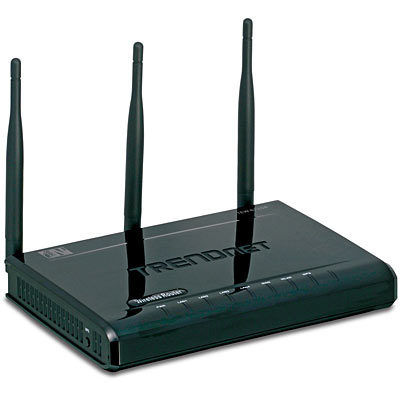

300Mbps Dual Band Wireless N Gigabit Router
TEW-672GR (Version V1.0R)

Increased wireless coverage and speed over standard wireless n
Seamlessly stream HD video, download files, surf and play games all at the same time
14x the speed and 6x the coverage of a wireless g network*
Features Wi-Fi Protected Setup (WPS) and a manual wireless on/off switch

DISCONTINUED PRODUCT

The TEW-672GR (Version V1.0R) has been discontinued. It has been replaced by the TEW-671BR (Version V1.0R). For a list of discontinued products, click here.

Click on image to enlarge

The 300Mbps Dual Band Wireless N Gigabit Router offers unsurpassed wireless speed, coverage and reliability. Enjoy up to 14x the speed and 6x the coverage of a wireless g connection*.

Dual Band wireless n technology uses 11 additional wireless channels, reduces wireless interference and optimizes performance in the most challenging environments.

Advanced Multiple Input Multiple Output (MIMO) antenna technology eliminates wireless dead spots. Advanced wireless encryption and a manual on/off wireless switch keeps your data safe. Wireless Protected Setup (WPS) integrates other WPS supported wireless adapters at the touch of a button. Seamlessly stream HD media, download files, surf and play games all at the same time.

**Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.

IEEE 802.11n draft 2.0 and IEEE 802.11a/b/g compliant

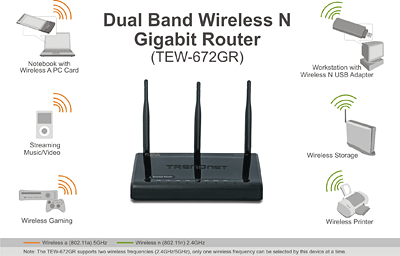

Dual band 2.4Ghz and 5Ghz Wireless Local Area Networking (WLAN) in one device

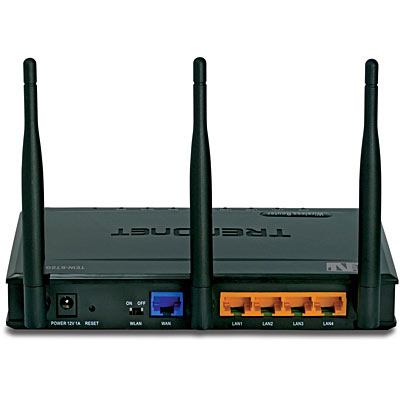

4 x 10/100/1000Mbps Auto-MDIX LAN ports and 1 x 10/100/1000Mbps WAN port (Internet)
Gigabit LAN ports for high speed network connectivity
Compatible with most popular cable/DSL Internet service providers using Dynamic/Static IP, PPPoE, PPTP and L2TP
High-speed data rates up to 300Mbps using an IEEE 802.11n draft 2.0 connection
3 external antennas provide high-speed performance and expansive wireless coverage
Advanced Firewall protection with Network Address Translation (NAT) and Stateful Packet Inspection (SPI)
Access restriction with Internet Access Control; time scheduling, URL and MAC filtering
Built in pre-configured virtual servers and Application Level Gateway services for special Internet applications
Universal Plug and Play (UPnP) for auto discovery and support for device configuration of Internet applications
Enable/disable wireless functionality with the WLAN on/off toggle switch
Multiple pass-through sessions for popular VPN applications (IPSec and PPTP)
Easy setup via Web browser using the latest versions of Internet Explorer, FireFox, and Safari
One touch wireless security setup using the Wi-Fi Protected Setup (WPS) button
Complete wireless security with WPA/WPA2, WPA-PSK/WPA2-PSK, and WEP
Wi-Fi Multimedia (WMM) Quality of Service (QoS) supported
Windows 95/98/NT/2000/XP/2003 Server/Vista, Linux and Mac OS supported
3-year limited warranty

Hardware
Standards	Wired: IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX) and IEEE 802.3ab (1000BaseT) Wireless: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (draft 2.0)
WAN	1 x 10/100/1000Mbps Auto-MDIX port (Internet)
LAN	4 x 10/100/1000Mbps Auto-MDIX port
Wireless On/Off Switch	Turn on/off wireless LAN
WPS Button	Wi-Fi Protected Setup (WPS) with other WPS compliant devices
Connection Type	Dynamic IP, Static (fixed) IP, PPPoE, PPTP, L2TP
NAT Firewall	3K configurable NAT entries; restricted NAPT IP ranges, port ranges and schedule Pre-defined game hosting configurations Port triggering for 24 special applications ALG support (enable/disable support) –RTP/RTSP, AOL, FTP, ICMP, WMP/MMS, NetMeeting, SIP
SPI Firewall	Up to 24 rules; cyber attack protection – verified against over 2000 attacks
WDS	Enable/disable Wireless Distribution System support
UPnP	UPnP IGD 1.0 compliant
DMZ	DMZ host, 24 configurable Virtual Servers and Game Servers
DNS	Static or WAN assigned DNS servers; 10 verified services for DDNS
Internet Access Control	Policy based parental control; time based Internet access; port range/service filtering; 16 user defined schedules, 24 MAC address filter entries
Logging	3 types and 3 severities event logging; up to 1,000 entries Email notifications
LED Indicator	Power, LAN1~LAN4, WAN, and WLAN
Power Adapter	12V DC, 1A external power adapter
Power Consumption	779mA
Dimension (L x W x H)	180 x 122 x 30 mm (6.8 x 4.6 x 1.1 inches)
Weight	350g (0.8 lb)
Temperature	Operation: 0°~ 40°C (32°F~ 104°F); Storage: -20°~ 60°C (-4°F~140 °F)
Humidity	Max. 90% (non-condensing)
Certifications	CE, FCC
Wireless
Frequency	2.412 ~ 2.462 GHz (FCC); 2.412 ~ 2.472 GHz (ETSI) 5.150~5.250GHz; 5.725~5.825GHz (FCC) 5.150~5.250MHz (ETSI)
Antenna	3 x 2dBi fixed dipole antenna
Media Access Protocol	CSMA/CA with ACK
Module Technique	802.11n: BPSK, QPSK, 16QAM, with OFDM 802.11b:CCK (11 and 5.5Mbps) DQPSK (2Mbps) DBSPK (1Mbps) 802.11g: OFDM with BPSK, QPSK and 16/64-QAM sub-carrier modulations
Data Rate	802.11a: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps 802.11n: up to 300Mbps
Security	Encryption: hardware AES/TKIP, 64/128-bit WEP (HEX/ passphrase, 11a/b/g/n) 802.1X/EAP: EAP-TLE, EAP-TTLE/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC WPA: WPA/WPA2, WPA-PSK/WPA2-PSK (AES-11b/g/n, TKIP-11b/g) WPS: support PIN and PBC SSID broadcast control
Output Power	802.11a: 14dBm (typical) 802.11b: 18dBm (typical) 802.11g: 15dBm (typical) 802.11n: 11dBm (typical) with HT20 or HT40
Receiving Sensitivity	802.11a: -72dBm (typical) @ 54Mbps 802.11b: -84dBm (typical) @ 11Mpbs 802.11g: -73dBm (typical) @ 54Mbps 802.11n: -69dBm (typical) with HT20 or HT40
Channels	2.4GHz 1~ 11 (US), 1~13 (EU) 5GHz 36, 40, 44, 48, 149, 153, 157, 161, and 165

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

View Knowledgebase

View Emulator

Package Contents

TEW-672GR
Multi-Language Quick Installation Guide
Power adapter (12V, 1A)
RJ-45 cable (1.5m / 4.9ft)
