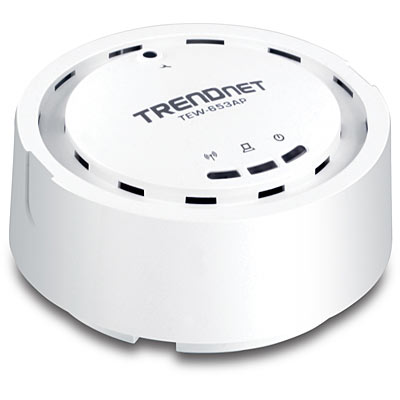

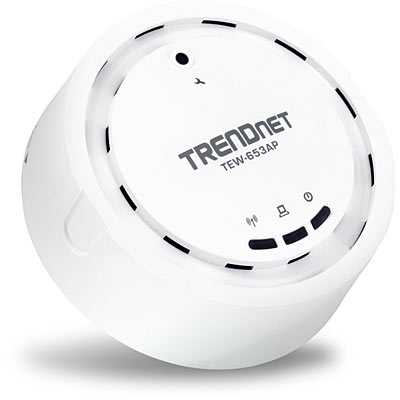

N300 Wireless PoE Access Point
TEW-653AP (Version v1.0R)
  • Features Access Point, WDS, and Repeater modes
  • No need to install the device near a power source using PoE technology
  • Assign individual VLANs for up to four separate SSIDs
  • Advanced encryption, WMM® QoS and SNMP support

Watch product spotlight video:

The N300 Wireless PoE Access Point (model TEW-653AP) combines high speed wireless n coverage with Power over Ethernet (PoE) technology* to deliver up to 12x the speed and 4x the coverage of wireless g**. This feature rich device blends into most environments and offers Access Point, Wireless Distribution System (WDS), and Repeater mode functionality.

Define a weekly power saving schedule, view real time network traffic charts, turn off the flashing LED indicators, and assign individual VLANs*** for up to 4 separate SSIDs. Advanced antenna technology (MIMO) delivers superior range and eliminates dead spots. Synchronize wireless clients at the touch of a button with Wi-Fi Protected Setup (WPS). Advanced encryption protects valuable data and WMM® Quality of Service (QoS) technology prioritizes video and audio packets.


  • Wi-Fi compliant with IEEE 802.11n and IEEE 802.11b/g standards
  • Power device by an Ethernet cable using IEEE 802.3af Power over Ethernet (PoE) protocol
  • Functional Access Point, WDS and Repeater modes provide network flexibility
  • Advanced wireless security with 64/128-bit WEP, WPA/WPA2-RADIUS and WPA-PSK/WPA2-PSK
  • Supports multiple SSIDs (up to 4 SSIDs) with 802.1q VLAN tagging (AP mode)
  • High-speed data rates up to 300Mbps using 802.11n connection
  • Monitor bandwidth allocation through graphical interface
  • Wi-Fi Protected Setup (WPS) integrates wireless clients quickly
  • 802.1X Authentication protocol support
  • Wi-Fi Multimedia (WMM) Quality of Service (QoS) data prioritization
  • Management via web browser
  • SNMP (v1, v2c) support
  • 3-year limited warranty

*Optional power port and power adapter provided for non-PoE installations.
**Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.
***Virtual Local Area Networks (VLAN) created separately by Web Smart switches, Managed Layer 2 switches or third party

  • Hardware
  • Standards
  • IEEE 802.3 (10Base-T)
  • IEEE 802.3u (100Base-TX)
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
  • IEEE 802.3af
  • Interface

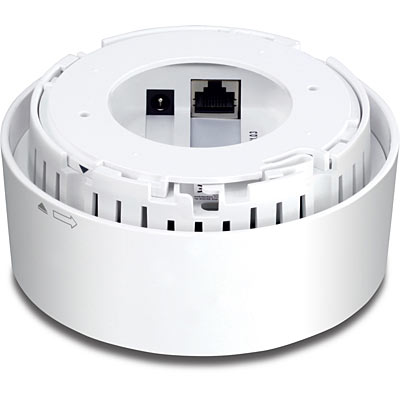

  • 1 x 10/100Mbps Auto-MDIX PoE LAN port
  • LED Indicators
  • Power/Status, LAN, WLAN
  • Button
  • Reset button – restores factory default settings
  • Power Supply
  • Active Ethernet (Power over Ethernet, IEEE802.3af )-48VDC/0.375A
  • Power adapter 12V/1A
  • Power Consumption
  • 6 watts (max)
  • Dimensions (Diameter x Height)
  • 120mm x 50mm (4.72 x 1.97in.)
  • Weight
  • 280g (9.87oz)
  • Temperature
  • Operating: 0° ~ 45°C (32° ~ 113°F)
  • Storage: -20°C ~ 70°C (-4° ~ 158° F)
  • Humidity
  • 5% ~ 95% typical (non-condensing)
  • Certifications
  • CE, FCC
  • Wireless
  • Module Technique
  • OFDM: BPSK, QPSK, 16-QAM, 64-QAM
  • DBPSK, DQPSK, CCK
  • Modes
  • Access Point, WDS Bridge, Repeater
  • Antenna
  • 4dBi Smart Internal Antenna
  • Frequency
  • 2.412 ~ 2.472 GHz
  • Management
  • Web browser (HTTP); SNMP v1, v2c
  • Data Rate (Auto Fallback)
  • 802.11n: up to 300Mbps
  • 802.11g: up to 54Mbps
  • 802.11b: up to 11Mbps
  • Output Power
  • 802.11n: 18dBm (typical) @ 300Mbps
  • 802.11g: 18dBm (typical) @ 54Mbps
  • 802.11b: 17dBm (typical) @ 11Mbps
  • Receiving Sensitivity
  • 802.11n: -61dBm
  • 802.11g: -72dBm
  • 802.11b: -89dBm
  • Encryption
  • 64/128 bit WEP, WPA-PSK/WPA2-PSK, WPA/WPA2-RADIUS
  • Channels
  • 1-11 (FCC), 1-13 (ETSI)


Package Contents

  • TEW-653AP
  • Multi-Language Quick Installation Guide
  • CD-ROM (User’s Guide)
  • Power adapter (12V DC, 1A)
  • Mounting kit
