Product Families » Power over Ethernet (PoE) » PoE Access Points » TEW-638PAP
N300 Wireless PoE Access Point
TEW-638PAP (Version v1.0R)
  • No need to install this access point near a power source, power and data are received through a single Ethernet cable
  • Features Access Point Client mode, Wireless Distribution System (WDS) support, and detachable antennas
  • Quickly connect wireless clients with one-touch Wi-Fi Protected Setup (WPS)
  • Advanced wireless encryption and Wireless Multimedia (WMM) QoS technology

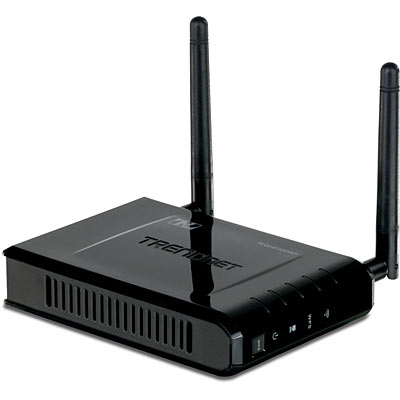

TEW-638PAP
Click on image to enlarge

The N300 Wireless PoE Access Point (model TEW-638PAP) is a scalable secure high speed solution that provides up to 12x the speed and 4x the coverage of wireless g.

No need to install this access point near a power source, power and data are received through a single Ethernet cable using Power over Ethernet (PoE) technology.

Connect wireless clients to your network at the touch of a button with WPS technology. Features Access Point Client mode, Wireless Distribution System (WDS) support, and detachable antennas. Multiple Input Multiple Output (MIMO) antenna technology increases wireless coverage, advanced encryption protects your wireless network, and Wireless Multimedia (WMM) Quality of Service technology prioritizes audio and video traffic.


RoHS Compliant

  • IEEE 802.3af Power over Ethernet (PoE) compliant device (power adapter included for non-PoE installations)
  • Compliant with wireless IEEE 802.11n/g/b standards
  • Up to a 300Mbps data rate using an 802.11n connection
  • Works as a wireless adapter with AP Client support
  • Expand a wireless network using Wireless Distribution System (WDS)
  • 802.11e Wi-Fi Multimedia (WMM) QoS data prioritization
  • Low interference and high susceptibility deliver reliable performance
  • 2 detachable antennas and MIMO antenna technology provide high speed performance and expansive coverage
  • Wi-Fi Protected Setup (WPS) integrates other WPS devices into your network quickly
  • Multiple SSID in Access Point mode
  • On/off power switch
  • Advanced wireless encryption: 64/128-bit WEP, WPA/WPA2-RADIUS, and WPA/WPA2-PSK
  • Coverage up to 100 meters (328ft.) indoor and 300 meters (984ft.) outdoor*
  • 3-year limited warranty
Hardware
Standards IEEE 802.11n, 802.11b, 802.11g, , 802.11e and 802.3af
Interface 1 x 10/100Mbps Auto-MDIX PoE LAN port
LED Indicators Power, LAN, WPS, and Wireless
Buttons Reset button – restores factory default settings
WPS button - initiates WPS function
On/off power switch
Power Supply 12V DC 0.5A external power adapter
Power Consumption 3.12 watts
Dimensions (LxWxH) 120 x 26 x 88mm (4.7 x 1.0 x 3.4in.)
Weight 145g (5.11oz)
Temperature
  • Operating: 0° ~ 40°C (32° ~ 104°F)
  • Storage: -20°C ~ 60°C (-4° ~ 140°F)
Humidity
  • Operating: 5% ~ 90% non-condensing
  • Storage: 5% ~ 90% non-condensing
Certifications CE, FCC
Wireless
Modulation Technique OFDM: BPSK, QPSK, 16-QAM, 64-QAM DBPSK, DQPSK, CCK
Modes Access Point, Wireless Distribution System (WDS in AP mode), AP Client
Access Control MAC Address Filter (Up to 64 entries)
Antenna 2 x 2dBi detachable antennas
Frequency 2.412 - 2.472 GHz
Data Rate (Auto Fallback)
  • 802.11n: up to 300Mbps
  • 802.11g: up to 54Mbps
  • 802.11b: up to 11Mbps
Output Power
  • 802.11n: 12dBm (typical)
  • 802.11g: 15dBm (typical)
  • 802.11b: 18dBm (typical)
Receiving Sensitivity
  • 802.11n: -66dBm (typical)
  • 802.11g: -74dBm (typical)
  • 802.11b: -84dBm (typical)
Encryption 64/128-bit WEP, WPA/WPA2-RADIUS, WPA/WPA2-PSK
Channels 1-11 (FCC), 1-13 (ETSI)

TEW-638PAP

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info
Email a Friend
Datasheet
Quick Installation Guide
Downloads
View Emulator
Register Your Product
Package Contents
  • TEW-638PAP
  • Multi-Language Quick Installation Guide
  • CD-ROM (Utility and User’s Guide)
  • Cat. 5 Ethernet cable (0.6m / 2ft.)
  • Power adapter (12V DC, 0.5A)
  • Mounting stand
